直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-24HHBVXEFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.3dB(A) | 60 W | CE, cURus, TUV, UR | 5475 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD1238-12MBVXEFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.2dB(A) | 34.2 W | CE, cURus, TUV, UR | 4450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

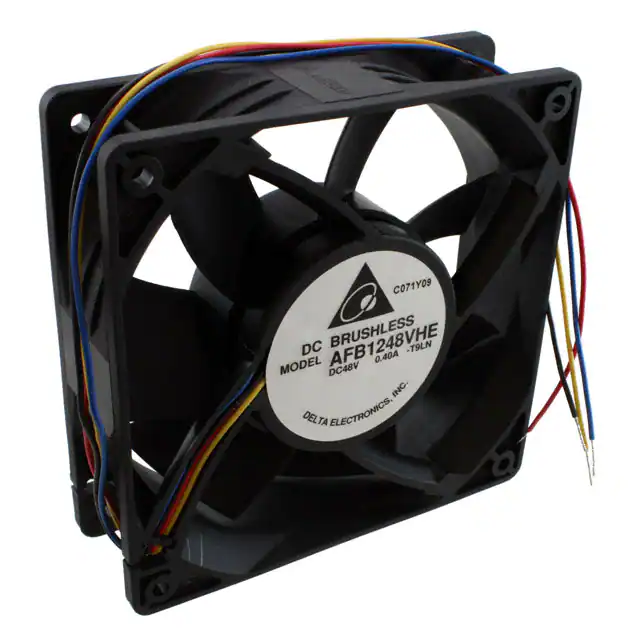

AFB1248VHE-T9LNFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 55.5dB(A) | 14.88 W | CE, CSA, UL, VDE | 4100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
8314GFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Sintec | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.5 W | CE, CSA, UL, VDE | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
9RA1248A4002120X25MM 48V, LOW NOISE DC 0 |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248G40021120X25MM 48V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248E40021120X25MM 48V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248E4002120X25MM 48V, LOW NOISE DC 0 |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248A40021120X25MM 48V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248G4002120X25MM 48V, LOW NOISE DC 0 |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
19031048AFAN BLOWER 124.7X36MM 24V VK24B3 |
0 | - |
|
数据表 |
Viking | - | Obsolete | 24VDC | Rectangular/Rounded - 124.7mm L x 126.2mm H | 33.0 CFM (0.924m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 0.994 lb (450.87 g) | Blower | - | 36.00mm | 57.6dB(A) | 19.2 W | - | 4000 RPM | - | 2 Wire Leads | - |
|
4412FMDFAN AXIAL 119X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.0 CFM (2.30m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 25.40mm | 38.0dB(A) | 3.2 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
4212HFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 108.3 CFM (3.03m³/min) | - | Ball | 0.64 lb (290.3 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 5.3 W | CE, CSA, UL, VDE | 3400 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
4214HFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 108.3 CFM (3.03m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 5.3 W | CE, CSA, UL, VDE | - | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD127AP-48HTBFAN AXIAL 127X38.5MM 48VDC TERM |
0 | - |
|
数据表 |
OD127AP | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 46.0dB | - | cURus, TUV | 3200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
|
VF60384B1-1000U-A9HThermal Products |
0 | - |
|
数据表 |
VF | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 54.1 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 60.9dB(A) | 12.72 W | CE, CUR, TUV, UL | 18300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
VF60384BX-1000U-A9HThermal Products |
0 | - |
|
数据表 |
VF | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 64.1dB(A) | 22.08 W | CE, CUR, TUV, UL | 22800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GF92251B2-000U-AE9FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.253 lb (114.76 g) | Tubeaxial | - | 25.00mm | 45.0dB(A) | 3.6 W | - | 4200 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92251B3-000U-AE9FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.253 lb (114.76 g) | Tubeaxial | - | 25.00mm | 43.0dB(A) | 2.76 W | - | 3900 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9RA1248E4D001120X25MM 48V, LOW NOISE DC LCKRT |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
