直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

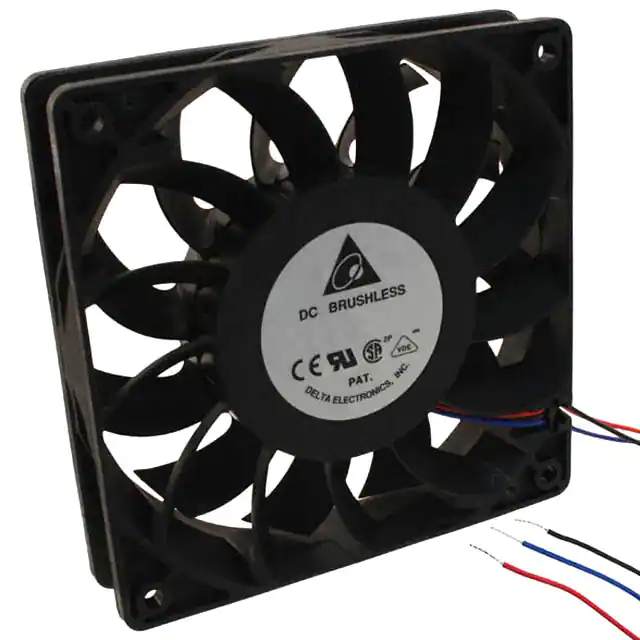

FFB1248VHE-R00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 151.8 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 53.0dB(A) | 13.44 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
PFB0812DHE-TYNTFAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 33 W | CE, cURus, VDE | 9000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
19030637AFAN BLOWER 120.7X31MM 48V BD48B3 |
0 | - |
|
数据表 |
Biscuit | Box | Active | 48VDC | Square/Rounded - 120.7mm L x 120.7mm H | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 0.619 lb (280.77 g) | Blower | Auto Restart, Locked Rotor Protection | 31.00mm | 52.3dB(A) | 12 W | CE, UL | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PMD1212PMB2-A.(2).R.GNThermal Products |
0 | - |
|
数据表 |
PM | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 51.0dB(A) | 14.4 W | CCC, CE, cURus, TUV | 3800 RPM | - | 3 Wire Leads | - |
|
|
712F/2-002DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
4100N | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Sleeve | - | - | - | 15.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
PSD1206PWB1-A(2).Z.R.PWM.GNFAN AXIAL DUAL 60X60MM 12VDC |
0 | - |
|
数据表 |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control | 60.00mm | 66.3dB(A) | 20.3 W | - | 11500 Front, 11000 Rear | - | 3 Wire Leads | - |
|
|
9GA0948H101FAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 26.4 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

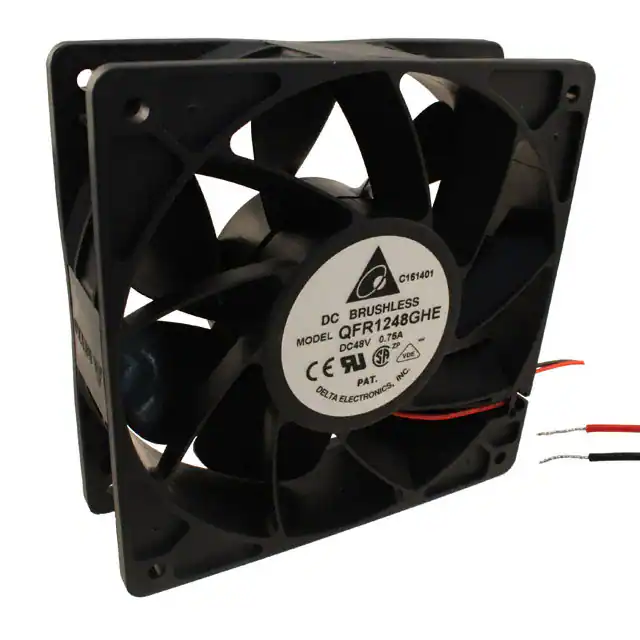

QFR1248GHEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
QFR | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 24 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
4212LFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 51.0 CFM (1.43m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 29.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 1600 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
DC0405612U2B-3T3FAN 40X56MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.00mm | 69.0dB(A) | 20.64 W | CE, cURus, TUV | 21000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
19032396AFAN AXIAL 80X32MM 12VDC ST12T3H |
0 | - |
|
数据表 |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.0 CFM (1.06m³/min) | 0.128 in H2O (31.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 32.00mm | 42.7dB(A) | 5 W | UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9CRE0412J502FAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 62.0dB(A) | 16.8 W | cURus, TUV | 15800 Front, 12200 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
9CRV0412P5S20140X56MM 12VDC TACH/PWM CLOSELOOP |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.3 CFM (0.680m³/min) | 2.369 in H2O (590.0 Pa) | Ball | - | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 59.0dB(A) | 9.6 W | cURus, TUV | 17000 RPM Front, 15100 RPM Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
DC0405612U2B-BT4FAN 40X56MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 69.0dB(A) | 20.64 W | CE, cURus, TUV | 21000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
614N/2GNFAN AXIAL 60X25.4MM 24VDC WIRE |
2 | - |
|
数据表 |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | - | Sintec | 0.19 lb (86.18 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 41.0dB(A) | 2.1 W | - | - | 158°F (70°C) | 3 Wire Leads | - |
|
|
4715SL-04W-B79-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | - | Obsolete | 12VDC | Square - 119mm L x 119mm H | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 62.3dB | 38.4 W | CE, CSA, UL, VDE | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-05W-B79-D00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
4715SL | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 62.3dB | 36 W | CE, CSA, UL, VDE | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0948P1H031FAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 26.4 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
SFB0312HH-F00FAN BLOWER 180X38X45MM 12V WIRE |
0 | - |
|
数据表 |
SFB | Box | Obsolete | 12VDC | Rectangular - 180mm L x 45mm H | 34.2 CFM (0.958m³/min) | 0.669 in H2O (166.6 Pa) | Ball | 0.331 lb (150.14 g) | Blower, Centrifugal (Triple) | Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 11.16 W | CE, CSA, UL, VDE | 7000 RPM | - | 3 Wire Leads | - |
|
|
OD1238-24MBVXEFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.2dB(A) | 34.2 W | CE, cURus, TUV, UR | 4450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
