直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF383-100FAN AXIAL 8X3MM VAPO 3VDC WIRE |
0 | - |
|
数据表 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 8mm L x 8mm H | 0.006 CFM (0.0002m³/min) | 0.006 in H2O (1.6 Pa) | Vapo-Bearing™ | 0.000 lb (0.30 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 3.00mm | 2.1dB(A) | 300 mW | CE | 13500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
CFM-9238BF68-195-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 23.4 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9238BF68-295-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 22.8 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
DC0405612U2B-2T2FAN 40X56MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 56.00mm | 69.0dB(A) | 20.64 W | CE, cURus, TUV | 21000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|

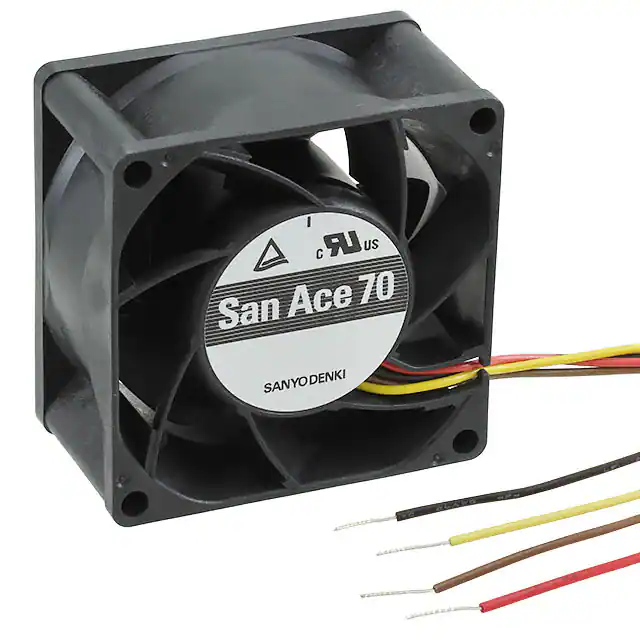

9GA0712P1G0011FAN AXIAL 70X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 70 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 93.6 CFM (2.62m³/min) | 3.453 in H2O (860.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 31.2 W | CSA, TUV, UL | 16500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
ODB600AN-12HBThermal Products |
0 | - |
|
数据表 |
ODB600AN | Bulk | Active | 12VDC | Rectangular/Rounded - 126mm L x 125mm H | 30.0 CFM (0.840m³/min) | 0.530 in H2O (132.0 Pa) | Ball | - | Blower | Auto Restart | 32.00mm | 48.6dB(A) | 7.2 W | CE, cURus, TUV, UR | 2750 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
CFM-9238BF68-180-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 14.4 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PSD1206PWB1-A(2).Z.GNFAN AXIAL DUAL 60X60MM 12VDC |
0 | - |
|
数据表 |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed | 60.00mm | 66.3dB(A) | 20.3 W | - | 11500 Front, 11000 Rear | - | 2 Wire Leads | - |
|
|
PMD1204PPB3-A.(2).GNFAN AXIAL 40X56MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 56.00mm | - | - | - | - | - | 2 Wire Leads | - |
|

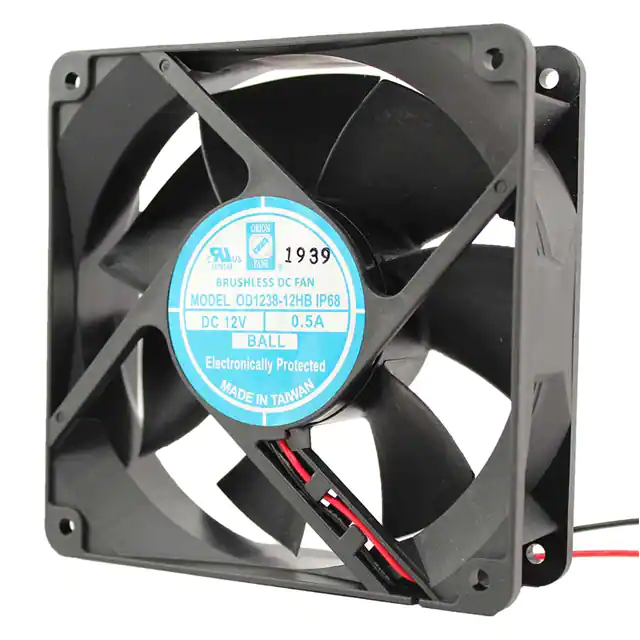

OD1238-48HHBIP68FAN AXIAL 119.5X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 119.5mm L x 119.5mm H | 136.0 CFM (3.81m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 48.0dB | 7.7 W | cURus, TUV | 3200 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1238-48LBIP68FAN AXIAL 119.5X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 119.5mm L x 119.5mm H | 103.0 CFM (2.88m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 38.0dB | 3.4 W | cURus, TUV | 2300 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1238-48MBIP68FAN AXIAL 119.5X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 119.5mm L x 119.5mm H | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.0 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 41.0dB | 3.8 W | cURus, TUV | 2600 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
AFC0948DE-TP20FAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
AFC | Box | Not For New Designs | 48VDC | Square - 92mm L x 92mm H | 159.4 CFM (4.46m³/min) | 1.528 in H2O (380.6 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 28.8 W | CE, TUV, UL | 7500 RPM | -40 ~ 149°F (-40 ~ 65°C) | 4 Wire Leads | - |
|
|
9GA0948H102FAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 63.0dB(A) | 26.4 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0912P1F01192X38MM 12VDC TACH/PWM |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GA0912P1F0192X38MM 12VDC TACH/PWM |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PSD1206PWB1-A(2).Z.F.PWM.GNFAN AXIAL DUAL 60X60MM 12VDC |
0 | - |
|
数据表 |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control | 60.00mm | 66.3dB(A) | 20.3 W | - | 11500 Front, 11000 Rear | - | 3 Wire Leads | - |
|
FFB1248EHE-F00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 24 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
FFB1248VHE-F00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 151.8 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 13.44 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

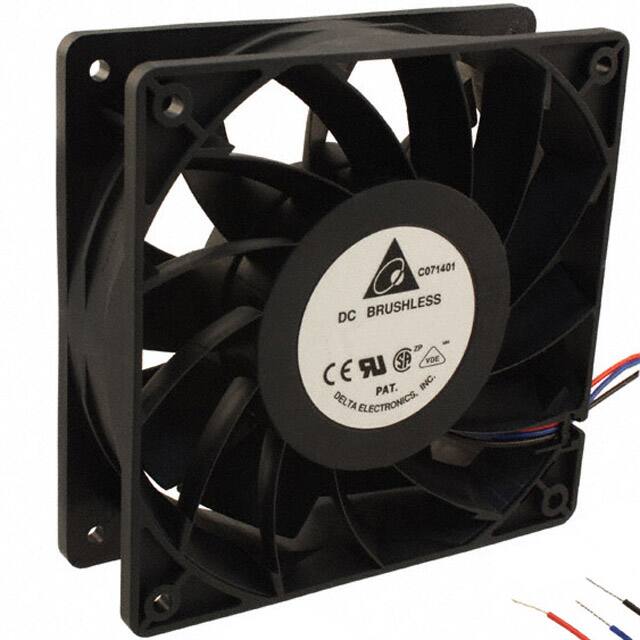

FFB1248SHE-R00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 56.5dB(A) | 18.24 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
