直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.GN.jpg)
|

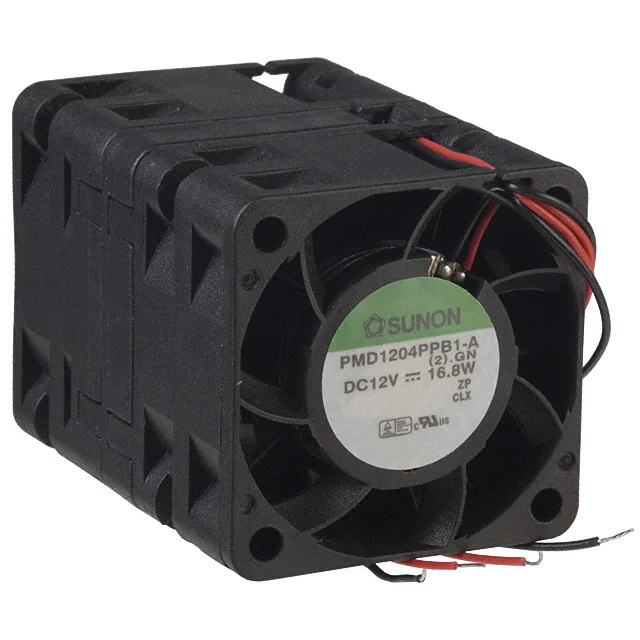

PMD1204PPB1-A.(2).GNFAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 26.5 CFM (0.742m³/min) | 1.730 in H2O (430.9 Pa) | Ball | 0.195 lb (88.45 g) | Tubeaxial (Dual) | - | 56.00mm | 59.0dB(A) | 16.8 W | CE, CUR, TUV, UL | 14500 Front, 9500 Rear | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads per Fan | - |
|
PMD1204PPB2-A.(2).GNFAN AXIAL 40X56MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 56.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD1238-48MBVXEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.2dB(A) | 34.2 W | CE, cURus, TUV, UR | 4450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD1238-48HHBVXEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.3dB(A) | 56.4 W | CE, cURus, TUV, UR | 5475 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD127AP-48HBFAN AXIAL 127X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD127AP | Box | Active | 48VDC | Square - 127mm L x 127mm H | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 46.0dB | - | cURus, TUV | 3200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
OD127AP-48LBDC FAN 48V 127X38MM |
0 | - |
|
数据表 |
OD127AP | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 86.0 CFM (2.41m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 30.0dB(A) | 3.4 W | CE, cURus, TUV, UR | 1900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD127AP-24MBDC FAN 24V 127X38MM |
0 | - |
|
数据表 |
OD127AP | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 38.0dB(A) | 5.5 W | CE, cURus, TUV, UR | 2600 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD127AP-24LBDC FAN 24V 127X38MM |
0 | - |
|
数据表 |
OD127AP | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 86.0 CFM (2.41m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 30.0dB(A) | 3.6 W | CE, cURus, TUV, UR | 1900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD127AP-48MBDC FAN 48V 127X38MM |
0 | - |
|
数据表 |
OD127AP | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 38.0dB(A) | 5 W | CE, cURus, TUV, UR | 2600 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD127AP-12MBDC FAN 12V 127X38MM |
0 | - |
|
数据表 |
OD127AP | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 108.0 CFM (3.02m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 38.0dB(A) | 6 W | CE, cURus, TUV, UR | 2600 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
4312GMFAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.2 CFM (2.30m³/min) | - | Sintec | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 39.0dB(A) | 2.6 W | CE, CSA, UL, VDE | 2300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
PF40561BX-1000U-S9HFAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 31.7 CFM (0.888m³/min) | 3.760 in H2O (936.6 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 56.00mm | 65.9dB(A) | 16.68 W | CCC, CE, cURus, TUV | 21500 Front, 18000 Rear | - | 4 Wire Leads | - |
|
|
PF40561B1-1000U-S9H12VDC FAN 40X56MM TACH/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 26.9 CFM (0.753m³/min) | 2.640 in H2O (657.6 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 62.3dB(A) | 10.68 W | CCC, CE, cURus, TUV, UKCA | 18000 Front, 15000 Rear | - | 3 Wire Leads per Fan | - |
|
4715VL-05W-B89-E00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4715VL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 66.0dB(A) | 35.5 W | CE, UL, VDE | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
12038VA-24R-ET-00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.6 CFM (6.82m³/min) | 1.490 in H2O (371.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 66.0dB | 35.52 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
12038VA-24Q-ET-00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 63.0dB | 24.96 W | - | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
12038VA-12P-ET-00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 59.5dB | 18 W | - | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
12038VA-12Q-ET-00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
12038VA-12R-EL-00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 66.0dB | 36 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
12038VA-48P-EL-00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
