直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

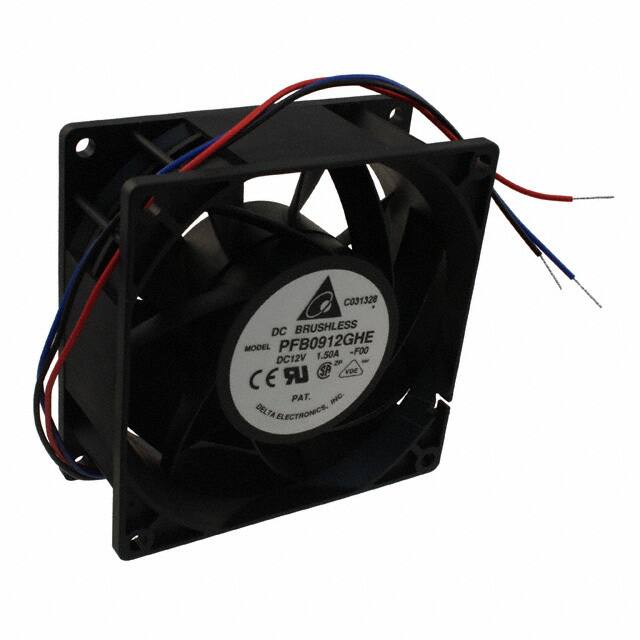

PFB0912GHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 129.3 CFM (3.62m³/min) | 1.015 in H2O (252.8 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 60.5dB(A) | 14.64 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

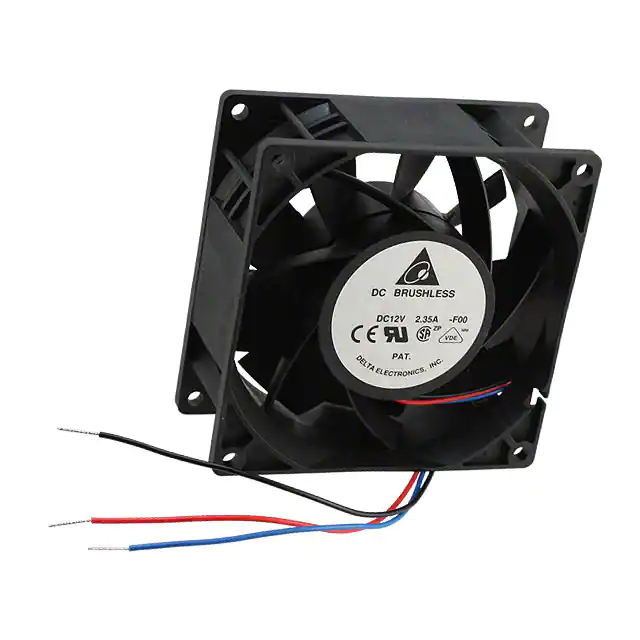

PFB0912UHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 23.5 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
CFM-9238BF68-280-585-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 16.8 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9238BF68-195-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.8dB(A) | 23.4 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
12038VA-48N-EL-00DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12M-ETE-0DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12N-ETE-0DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24N-ELE-0DC AXIAL FAN |
0 | - |
|
数据表 |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.6 CFM (5.17m³/min) | 0.831 in H2O (207.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 59.0dB | 17.76 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VA-48L-EL-00DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12N-ELE-0DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12M-ELE-0DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24M-ELE-0DC AXIAL FAN |
0 | - |
|
数据表 |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 141.3 CFM (3.96m³/min) | 0.602 in H2O (149.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 53.0dB | 10.8 W | - | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VA-12Q-ELE-0DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24N-ETE-0DC AXIAL FAN |
0 | - |
|
数据表 |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.6 CFM (5.17m³/min) | 0.831 in H2O (207.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 59.0dB | 17.76 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VA-24M-ETE-0DC AXIAL FAN |
0 | - |
|
数据表 |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 141.3 CFM (3.96m³/min) | 0.602 in H2O (149.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 53.0dB | 10.8 W | - | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VA-24L-ETE-0DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.GN, PMB1212PLB3-A(2).GN.jpg)
|
PMB1212PLB3-A.(2).GNFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
PMB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 31.4 CFM (0.879m³/min) | 0.640 in H2O (159.4 Pa) | Ball | 0.551 lb (249.93 g) | Blower | - | 32.00mm | 49.6dB(A) | 5.4 W | CE, CUR, TUV, UL | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FFB1248EHEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 24 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
FFB1248VHEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 151.8 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 13.44 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
UF385-100FAN AXIAL 8X5MM VAPO 3VDC WIRE |
0 | - |
|
数据表 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 8mm L x 8mm H | 0.010 CFM (0.0003m³/min) | 0.012 in H2O (3.0 Pa) | Vapo-Bearing™ | 0.001 lb (0.45 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 5.00mm | 17.1dB(A) | 200 mW | CE | 17000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
