直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4715SL-04W-B49-D50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 141.9 CFM (3.97m³/min) | 0.546 in H2O (136.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 53.5dB | 12 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-04W-B59-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 56.5dB | 17.5 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-04W-B59-D50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 56.5dB | 17.5 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-04W-B69-D50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 59.5dB | 23 W | CE, CSA, UL, VDE | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-05W-B49-D50FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 141.9 CFM (3.97m³/min) | 0.546 in H2O (136.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 53.5dB | 12.5 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-05W-B59-D00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 56.5dB | 17.8 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-05W-B59-D50FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 56.5dB | 17.8 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-07W-B49-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 141.9 CFM (3.97m³/min) | 0.546 in H2O (136.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 53.5dB | 13 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-07W-B49-D50FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 141.9 CFM (3.97m³/min) | 0.546 in H2O (136.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 53.5dB | 13 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-07W-B59-D50FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 56.5dB | 17.8 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-07W-B69-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 59.5dB | 23.5 W | CE, CSA, UL, VDE | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

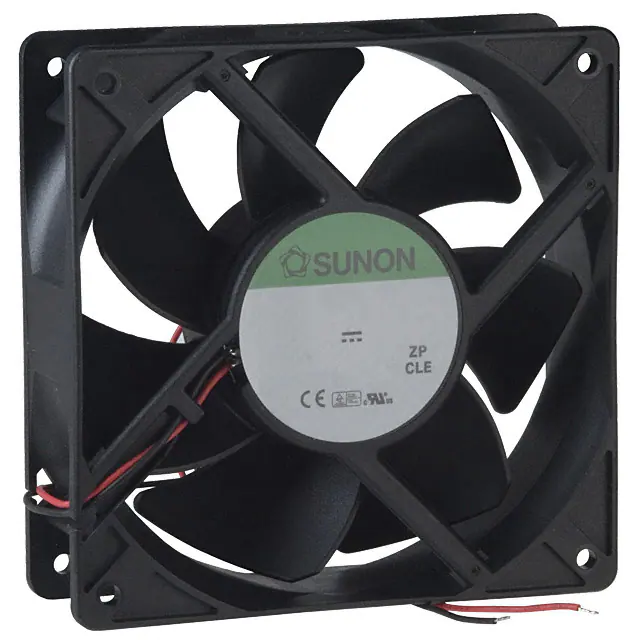

PMD4812PMB1-A.(2).GNFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | 0.727 lb (329.76 g) | Tubeaxial | - | 38.00mm | 54.0dB(A) | 19.2 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PMD4812PMB2-A.(2).GNFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 51.0dB(A) | 14.4 W | - | 3800 RPM | - | 2 Wire Leads | - |
|
|
VF60384B1-1000U-S9H48VDC FAN 60X38MM TACH/PWM |
0 | - |
|
数据表 |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 60.9dB(A) | 12.72 W | CCC, CE, cURus, TUV, UKCA | 18300 RPM | - | 3 Wire Leads | - |
|
|
VF60384BX-1000U-S9H48VDC FAN 60X38MM TACH/PWM |
0 | - |
|
数据表 |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 64.1dB(A) | 22.08 W | CCC, CE, cURus, TUV, UKCA | 22800 RPM | - | 3 Wire Leads | - |
|
|
BFB1224EH-AFAN BLOWER 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 54.9 CFM (1.54m³/min) | 3.485 in H2O (868.1 Pa) | Ball | 0.661 lb (299.82 g) | Blower | Locked Rotor Protection | 32.00mm | 62.0dB(A) | 26.88 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
FFB1348EHE-R00FAN AXIAL 127X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 127mm L x 127mm H | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 59.5dB(A) | 32.16 W | CE, CSA, UL, VDE | 3850 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
FFB1312EHEFAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Tray | Obsolete | 12VDC | Square - 127mm L x 127mm H | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.5dB(A) | 32.88 W | CE, CSA, UL, VDE | 3850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
VF60384BX-1000U-Q9H48VDC FAN 60X38MM ALARM/PWM |
0 | - |
|
数据表 |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 64.1dB(A) | 22.08 W | CCC, CE, cURus, TUV, UKCA | 22800 RPM | - | 3 Wire Leads | - |
|
|
VF60384B1-1000U-Q9H48VDC FAN 60X38MM ALARM/PWM |
0 | - |
|
数据表 |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 60.9dB(A) | 12.72 W | CCC, CE, cURus, TUV, UKCA | 18300 RPM | - | 3 Wire Leads | - |
