直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4712KL-05W-B39-P50FAN AXIAL 119X32MM 24VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 44.0dB | 6.72 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-05W-B49-P50FAN AXIAL 119X32MM 24VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 47.0dB | 8.16 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B19-P00FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 29.0dB | 3.36 W | CE, CSA, UL, VDE | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B19-P50FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 56.1 CFM (1.57m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 29.0dB | 3.36 W | CE, CSA, UL, VDE | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B29-P00FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 39.0dB | 5.28 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B29-P50FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 82.2 CFM (2.30m³/min) | 0.168 in H2O (41.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 39.0dB | 5.28 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B39-P00FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 44.0dB | 7.68 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B39-P50FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 99.9 CFM (2.80m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 44.0dB | 7.68 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-07W-B49-P50FAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 48VDC | Square - 119mm L x 119mm H | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 47.0dB | 10.1 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-04W-B59-P50FAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 12VDC | Square - 119mm L x 119mm H | 120.0 CFM (3.36m³/min) | 0.373 in H2O (93.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 50.5dB | 10.2 W | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4712KL-05W-B59-P00FAN AXIAL 119X32MM 24VDC WIRE |
0 | - |
|
数据表 |
4712KL | Box | Active | 24VDC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 50.5dB | 9.8 W | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923824L2B-BT4FAN 92X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 12 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
19031169AFAN AXIAL 92X25.4MM 24VDC FN24B3 |
0 | - |
|
数据表 |
Flight II 90 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | - | 25.40mm | 38.1dB(A) | 2.4 W | - | 2860 RPM | - | 2 Wire Leads | - |
|
19031392AFAN AXIAL 92X25.4MM 48VDC FN48B3 |
0 | - |
|
数据表 |
Flight II 90 | - | Obsolete | 48VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | - | 25.40mm | 38.1dB(A) | 2.9 W | - | 2850 RPM | - | 2 Wire Leads | - |
|
|
9GV0612G102FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.0dB(A) | 33.6 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GV0612G1021FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.0dB(A) | 33.6 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

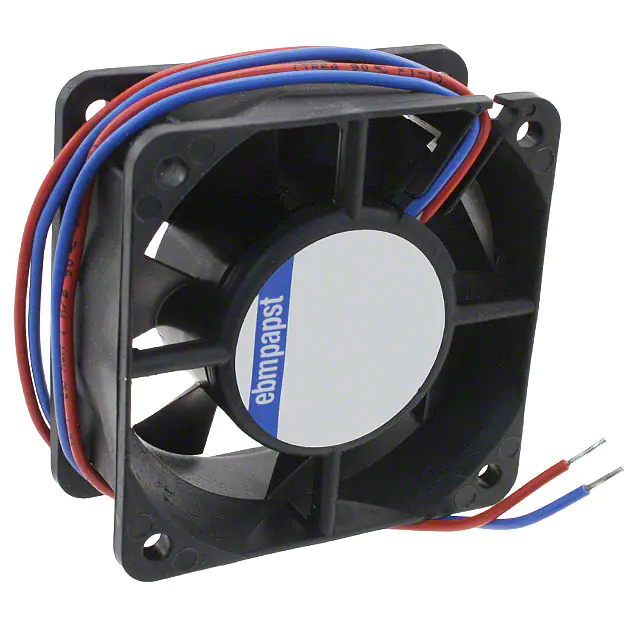

612FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | - | Ball | 0.19 lb (86.18 g) | Tubeaxial | - | 25.40mm | 40.0dB(A) | 2.5 W | - | - | - | 2 Wire Leads | - |
|
FFB0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 102.0 CFM (2.86m³/min) | 1.233 in H2O (307.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.2dB(A) | 18 W | CE, CSA, UL, VDE | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC1203812H2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 136.0 CFM (3.81m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 9.6 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC1203812M2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 9 W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
