直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8015E24B1-RGR-TTLFAN AXIAL 80X15.3MM 24VDC WIRE |
94 | - |
|
数据表 |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 4400 RPM | - | 3 Wire Leads | - |
|
G4015H24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
41 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
|
G8015X24B1-RGR-L40FAN AXIAL 80X15.3MM 24VDC WIRE |
40 | - |
|
数据表 |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 4800 RPM | - | 3 Wire Leads | - |
|
08020SA-24N-EL-00FAN AXIAL 80X20MM 24VDC WIRE |
7 | - |
|
数据表 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
B1232H12B-BSR-E-CC-IM4FAN BLOWER 120X32MM 12VDC WIRE |
6 | - |
|
数据表 |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.706 lb (320.24 g) | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
E9225X24B-FSR-L17FAN AXIAL 92X25MM 24VDC WIRE |
91 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
6025BF).jpg)
|
CFM-6025BF-235-274-22FAN AXIAL 60X25.4MM 24VDC WIRE |
66 | - |
|
数据表 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 27.5dB(A) | 1.44 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
F8025M12B3-FSRFAN AXIAL 80X25MM 12VDC WIRE |
53 | - |
|
数据表 |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 25.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 2 Wire Leads | - |
|
F1238M12B3-FSRFAN AXIAL 119X38MM 12VDC WIRE |
19 | - |
|
数据表 |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Thermistor | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2300 RPM | - | 2 Wire Leads | - |
|
F6025E12B3-RSRFAN AXIAL 60X25MM 12VDC WIRE |
81 | - |
|
数据表 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 4600 RPM | - | 2 Wire Leads | - |
|
9A0612G4021FAN AXIAL 60X25MM 12VDC WIRE |
91 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
MR9225E24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
65 | - |
|
数据表 |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 99.0 CFM (2.77m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.264 lb (119.75 g) | Tubeaxial | Auto Restart | 25.00mm | 50.8dB(A) | - | CE, cUL, TUV, UL | 4400 RPM | - | 2 Wire Leads | - |
|
9GA0912F402FAN AXIAL 92X25MM 12VDC WIRE |
53 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 1.68 W | - | - | - | 2 Wire Leads | - |
|
109P0424H646FAN AXIAL 40X20MM 24VDC |
70 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.101 lb (45.81 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 35.0dB(A) | - | CSA, TUV, UL | 8300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Position Rectangular Connector | - |
|

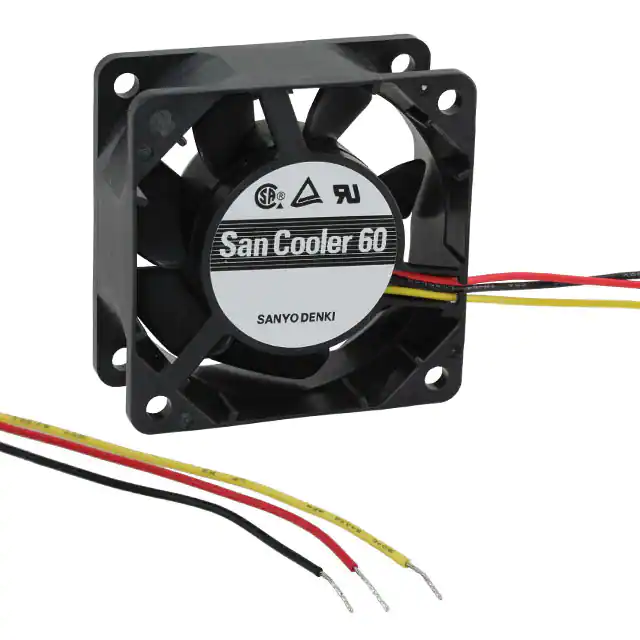

9A0612F4011FAN AXIAL 60X25MM 12VDC WIRE |
78 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.08 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9A0912S4021FAN AXIAL 92X25MM 12VDC WIRE |
70 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 39.0dB(A) | 3.24 W | CSA, TUV, UL | 3550 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
MH4028E12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
42 | - |
|
数据表 |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.5 CFM (0.685m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 28.00mm | 55.0dB(A) | - | - | 15000 RPM | - | 2 Wire Leads | - |
|
9G1212L4D01FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | 0.529 lb (240.00 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 24.0dB(A) | - | CSA, TUV, UR | 1400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1224A4D011FAN AXIAL 119X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 44.0dB(A) | 5.04 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0612G4D01FAN AXIAL 60X25MM 12VDC WIRE |
75 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
