直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19031765AFAN AXIAL 60X25MM BALL 5V FS05H3 |
0 | - |
|
数据表 |
Flight II 60 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.145 in H2O (36.1 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | - | 25.00mm | 28.5dB(A) | 1 W | - | 3500 RPM | - | 2 Wire Leads | - |
|
DC1203824L2B-BT0FAN 120X38MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 51.84 W | CE, cURus | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0923848M2B-3T3FAN 92X38MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 43.2 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
OD6038-12LBXC01AFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6038 XC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 68.0 CFM (1.90m³/min) | 1.950 in H2O (485.7 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 61.0dB | 21.6 W | cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G8015S24B-RGR-L15FAN AXIAL 80X15.3MM 24VDC WIRE |
93 | - |
|
数据表 |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
OD6038-12HBXC01AFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6038 XC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.0 CFM (2.13m³/min) | 2.400 in H2O (597.8 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 64.0dB | 28.8 W | cURus, TUV | 14500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD8038-12MB-VXCFAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD8038 VA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 89.0 CFM (2.49m³/min) | 0.750 in H2O (186.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 54.0dB | 10 W | cURus, TUV | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

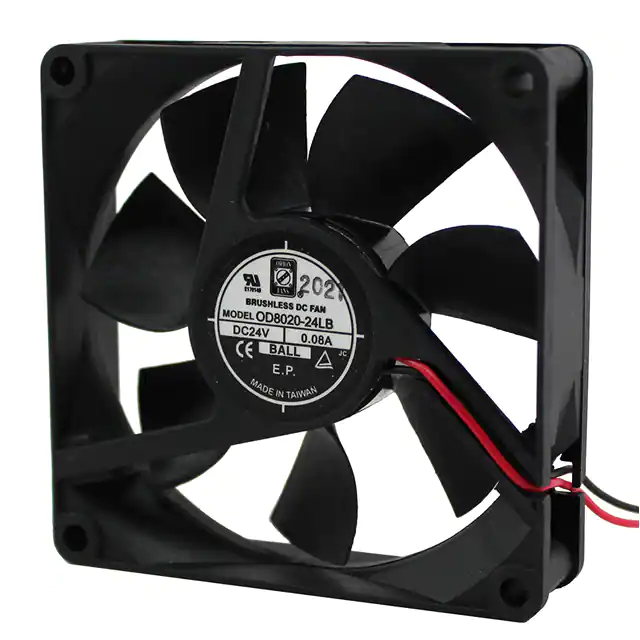

OD8020-24LBFAN AXIAL 80X20MM 24VDC WIRE |
52 | - |
|
数据表 |
OD8020 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
B1232H12B1+6-BSRFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.705 lb (319.78 g) | Blower | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 4 Wire Leads | - |
|

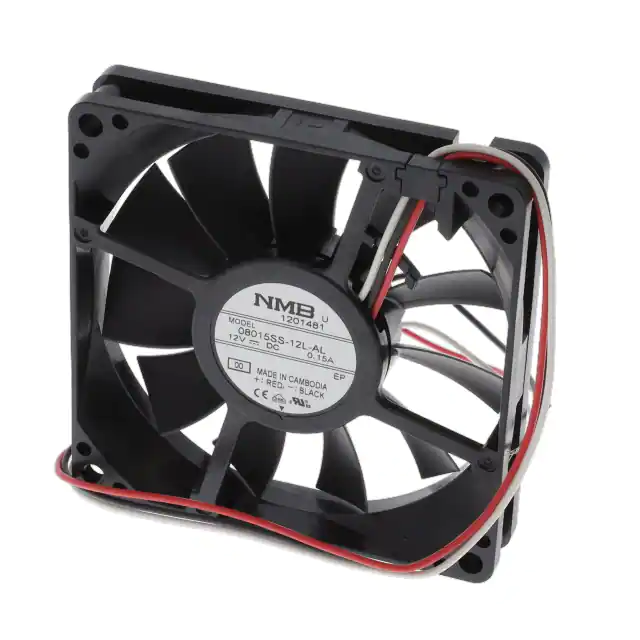

08015SS-12L-AL-00FAN AXIAL 80X15MM 12VDC WIRE |
44 | - |
|
数据表 |
08015SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
B1232L12B1+6-BSRFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 21.0 CFM (0.588m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 0.705 lb (319.78 g) | Blower | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 4 Wire Leads | - |
|
06015KA-12N-AL-00FAN AXIAL 60X15MM 12VDC WIRE |
79 | - |
|
数据表 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 34.0dB | 1.9 W | - | 4600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
8412NMFAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
8400N | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 27.0dB(A) | 1.3 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
CFM-8038S-240-449FAN AXIAL 80X37.6MM 24VDC WIRE |
90 | - |
|
数据表 |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.60mm | 45.0dB(A) | 5.76 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0923824U2B-BT4FAN 92X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 60 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
MB6010X12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
15 | - |
|
数据表 |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Thermal Overload Protector (TOP) | 10.20mm | 35.0dB(A) | - | cUL, UL | 5300 RPM | - | 2 Wire Leads | - |
|
9GA0924M4021FAN AXIAL 92X25MM 24VDC WIRE |
49 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 1.2 W | - | - | - | 2 Wire Leads | - |
|
|
DC0923824H2B-BT4FAN 92X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 28.8 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
09225SA-12L-AA-D0FAN AXIAL 92X25MM 12VDC WIRE |
31 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 25.0dB | 1.2 W | - | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9G1212F4D011FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 35.0dB(A) | 2.28 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
