直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB6010H12B1-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
8 | - |
|
数据表 |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.20mm | 28.0dB(A) | - | cUL, UL | 3900 RPM | - | 3 Wire Leads | - |
|
|
G4010M24B-RSRFAN AXIAL 40X10.3MM 24VDC WIRE |
97 | - |
|
数据表 |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Thermal Overload Protector (TOP) | 10.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|

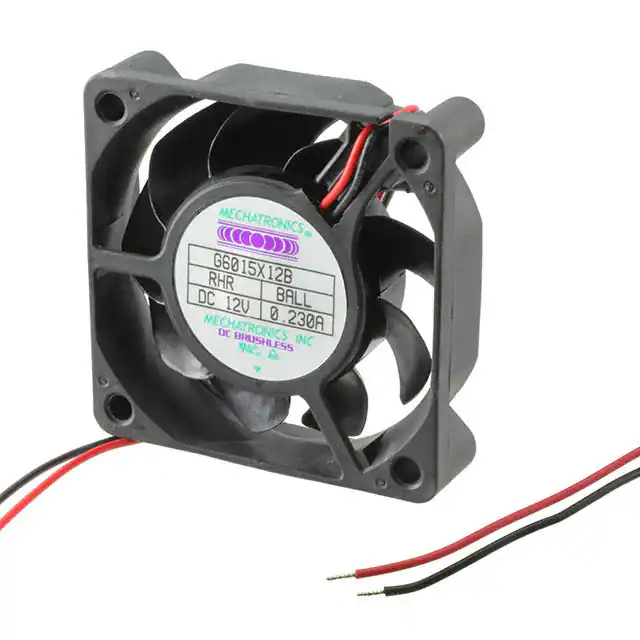

G6015X12B-RHRFAN AXIAL 60X15MM 12VDC WIRE |
28 | - |
|
数据表 |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 15.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 5600 RPM | - | 2 Wire Leads | - |
|
|
BFB03512MA-CR00FAN BLOWER 35X10MM 12VDC WIRE |
43 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Sensor | 10.00mm | 26.0dB(A) | 720 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MD6020L12B-FSRFAN AXIAL 60X20.2MM 12VDC WIRE |
43 | - |
|
数据表 |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.9 CFM (0.389m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.20mm | 23.0dB(A) | - | cUL, TUV, UL | 2700 RPM | - | 2 Wire Leads | - |
|

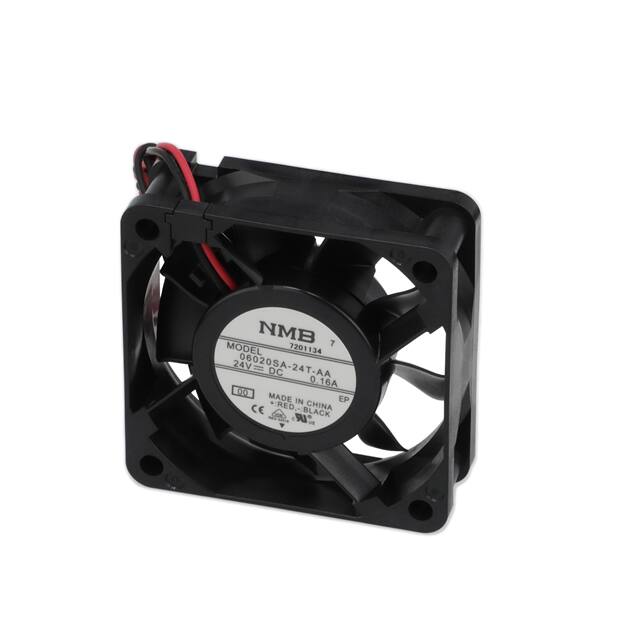

06020SA-24T-AA-00FAN AXIAL 60X20MM 24VDC WIRE |
98 | - |
|
数据表 |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
G4020E05B1-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
81 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
9GA0912M402FAN AXIAL 92X25MM 12VDC WIRE |
50 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 1.32 W | - | - | - | 2 Wire Leads | - |
|

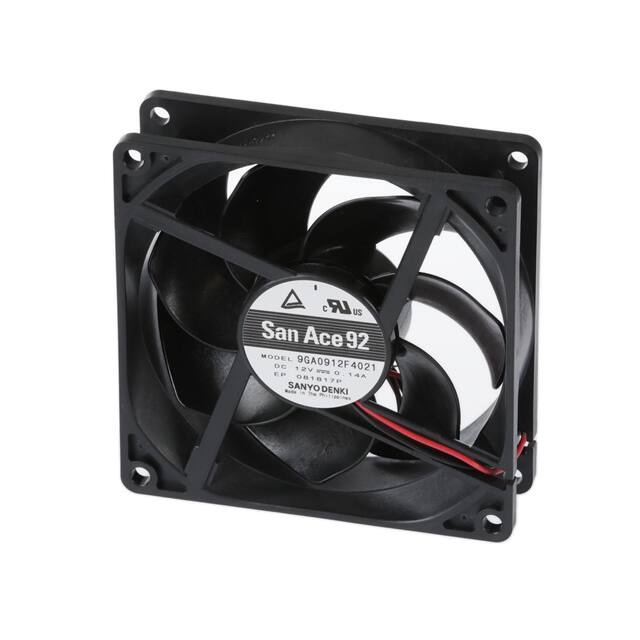

9GA0912F4021FAN AXIAL 92X25MM 12VDC WIRE |
49 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 1.68 W | - | - | - | 2 Wire Leads | - |
|
|
MS8038H48B1+6-FHRFAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 0.391 lb (177.35 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 77.0dB(A) | - | - | 10000 RPM | - | 4 Wire Leads | - |
|
MR1238E24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 67.9dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 3 Wire Leads | - |
|
|
DC0923824U2B-BT0FAN 92X38MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 60 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0803824V2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.0dB(A) | 64.8 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
OD9238-24HHBXCFAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 38.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
OD9238-12HHBXCFAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 174.0 CFM (4.87m³/min) | 1.700 in H2O (423.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 68.0dB | 42 W | cURus, TUV | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
OD9238-48HHBXCFAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 38.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9WP0812H4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 40.0dB(A) | 4.56 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9238BF-280-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 13.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-9238BF-195-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 21.6 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19032142AFAN AXIAL 120X32MM 24VDC MC24E3 |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 39.7dB(A) | 2.4 W | - | 2170 RPM | - | 2 Wire Leads | - |
