直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1203824W2B-BT4FAN 120X38MM 24VDC PWM/TACH MOLE |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 37.2 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
DC0923812L2B-3T0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 97.0 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 6 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0803848V2B-3T0FAN 80X38MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 129.6 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923824L2B-2T0FAN 92X38MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 52.0dB(A) | 12 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB1212HH-F00FAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.5 CFM (0.910m³/min) | 1.063 in H2O (264.8 Pa) | Ball | 0.508 lb (230.42 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 54.0dB(A) | 13.2 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

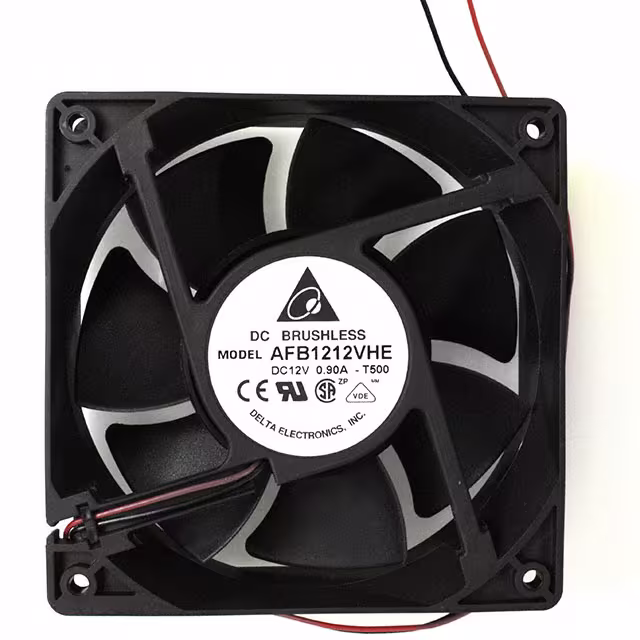

AFB1212VHE-T500FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 129.9 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 7.2 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
CFM-6020V-142-280-20FAN AXIAL 60X20MM 12VDC WIRE |
55 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.112 lb (50.8 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 900 mW | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FAD1-12038CBLW12FAN AXIAL 120X38.5MM 12VDC WIRE |
45 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 71.6 CFM (2.00m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | - | 38.50mm | 36.2dB(A) | 2.64 W | CE, cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-5015BF-145-312FAN AXIAL 50X15.5MM 12VDC WIRE |
96 | - |
|
数据表 |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 11.7 CFM (0.328m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.50mm | 31.3dB(A) | 1.08 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025CHMW12-AFAN AXIAL 60X25MM 12VDC WIRE |
87 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 28.1dB(A) | 1.56 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR8032H12B-FSRFAN AXIAL 80X32MM 12VDC WIRE |
80 | - |
|
数据表 |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 0.32 lb (145.15 g) | Tubeaxial | Auto Restart | 32.00mm | 48.6dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
|
09225SA-24K-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
58 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 33.5 CFM (0.938m³/min) | 0.086 in H2O (21.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | - | 960 mW | - | 2050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025DBHW12-AFAN AXIAL 60X25MM 24VDC WIRE |
82 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 33.1dB(A) | 2.88 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SA-12L-ET-D0FAN AXIAL 92X25MM 12VDC WIRE |
60 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 25.0dB | 1.2 W | - | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MB8020M12B-FSRFAN AXIAL 80X20MM 12VDC WIRE |
12 | - |
|
数据表 |
MB8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 26.9 CFM (0.753m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 20.00mm | 29.0dB(A) | - | cUL, UL | 2500 RPM | - | 2 Wire Leads | - |
|
OD8020-24HB02AFAN AXIAL 80X20MM 24VDC WIRE |
98 | - |
|
数据表 |
OD8020 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 20.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
MR4020L12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
98 | - |
|
数据表 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart | 20.00mm | 26.5dB(A) | - | CE, cUL, TUV, UL | 6500 RPM | - | 2 Wire Leads | - |
|
F6025L24B-FHRFAN AXIAL 60X25MM 24VDC WIRE |
14 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 25.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
MR6025H12B-RSRFAN AXIAL 60X25.5MM 12VDC WIRE |
13 | - |
|
数据表 |
MR6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 31.7 CFM (0.888m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.50mm | 46.0dB(A) | - | - | 6500 RPM | - | 2 Wire Leads | - |
|
CFM-8038B-140-449FAN AXIAL 80X37.6MM 12VDC WIRE |
35 | - |
|
数据表 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.60mm | 45.0dB(A) | 4.56 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
