直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

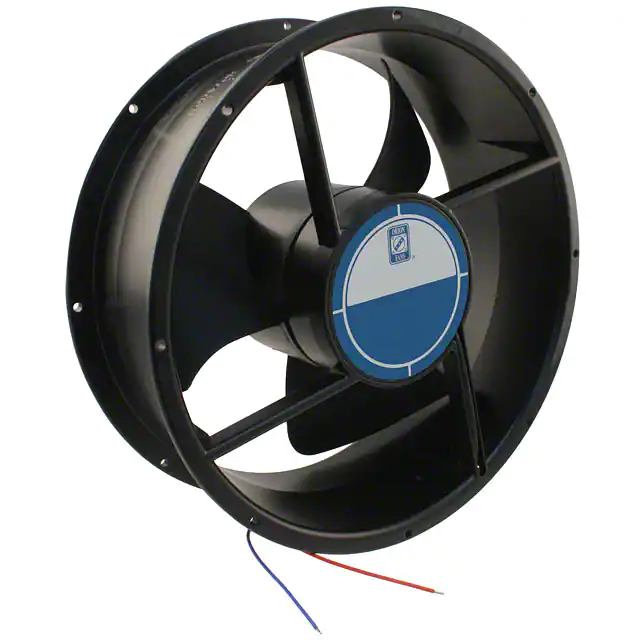

OD254AP-12HBFAN AXIAL 254X89MM 12VDC WIRE |
8 | - |
|
数据表 |
OD254 | Box | Active | 12VDC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 60.0dB | 65 W | cURus, TUV | 2400 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
OD254AP-48HB10AFAN AXIAL 254X89MM 48VDC WIRE |
6 | - |
|
数据表 |
OD254 | Bulk | Active | 48VDC | Round - 254mm Dia | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 89.00mm | 64.0dB | 62 W | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|
|
OD254AP-12HB10AFAN AXIAL 254X89MM 12VDC WIRE |
25 | - |
|
数据表 |
OD254 | Bulk | Active | 12VDC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 89.00mm | 60.0dB | 65 W | cURus, TUV | 2400 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|

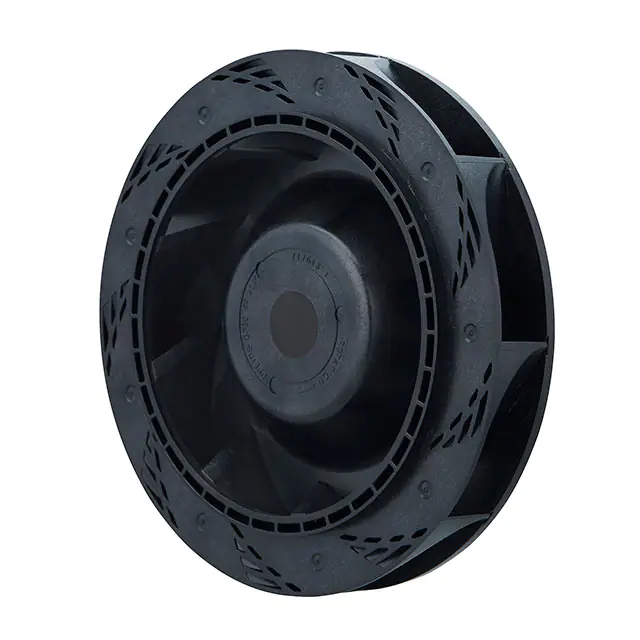

9W2TN24P1H001FAN IMP MTRZD 150X35MM 24VDC |
6 | - |
|
数据表 |
San Ace 150W | Box | Active | 24VDC | Round - 150mm Dia | 135.0 CFM (3.78m³/min) | 1.578 in H2O (393.1 Pa) | Ball | 0.86 lb (390.09 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 35.00mm | 59.0dB(A) | 15.4 W | cURus, TUV | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD254AP-24HBIP68FAN IMP MTRZD 254X89MM 24VDC |
13 | - |
|
数据表 |
OD254AP-IP68 | Box | Active | 24VDC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Motorized Impellers | Auto Restart | 89.00mm | 62.1dB(A) | 65 W | CE, cURus, TUV, UR | 2450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
MSI2577H24B1+7-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
9 | - |
|
数据表 |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | 4.5 lbs (2 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 77.30mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
F175H3-061-D0540FAN IMP MTRZD 175X69MM 24VDC |
12 | - |
|
数据表 |
F175H | Bulk | Active | 24VDC | Round - 175mm Dia | 541.0 CFM (15.15m³/min) | 3.490 in H2O (870.0 Pa) | Ball | 2 lbs (907.2 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | 74.0dB(A) | 113 W | - | 4700 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
F175G1-061-D0750FAN IMP MTRZD 175X69MM 48VDC |
9 | - |
|
数据表 |
F175 | Bulk | Active | 48VDC | Round - 175mm Dia | 534.4 CFM (14.96m³/min) | 4.070 in H2O (1013.8 Pa) | Ball | - | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 69.00mm | 77.0dB(A) | 153.6 W | - | 5100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
R1G190-AC11-52FAN IMP MTRZD 190X68.5MM 48VDC |
17 | - |
|
数据表 |
R1G190 | Bulk | Active | 48VDC | Round - 190mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.50mm | 68.0dB(A) | 71 W | CCC, CSA, EAC, UL | 3200 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP42 |
|
R1G225-AF07-52FAN IMP MTRZD 225X99MM 24VDC |
15 | - |
|
数据表 |
R1G225 | Bulk | Active | 24VDC | Round - 225mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 67.0dB(A) | 100 W | CSA, EAC, UL | 2600 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP42 |
|

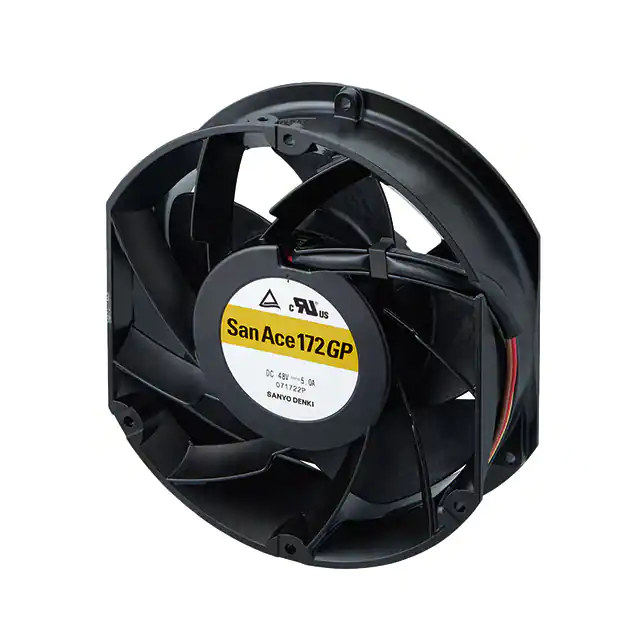

9GP5748P5G001FAN AXIAL 172X51MM 48VDC WIRE |
22 | - |
|
数据表 |
San Ace 172GP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 568.0 CFM (15.90m³/min) | 6.430 in H2O (1601.6 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.00mm | 83.0dB(A) | 240 W | cURus, TUV | 10500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

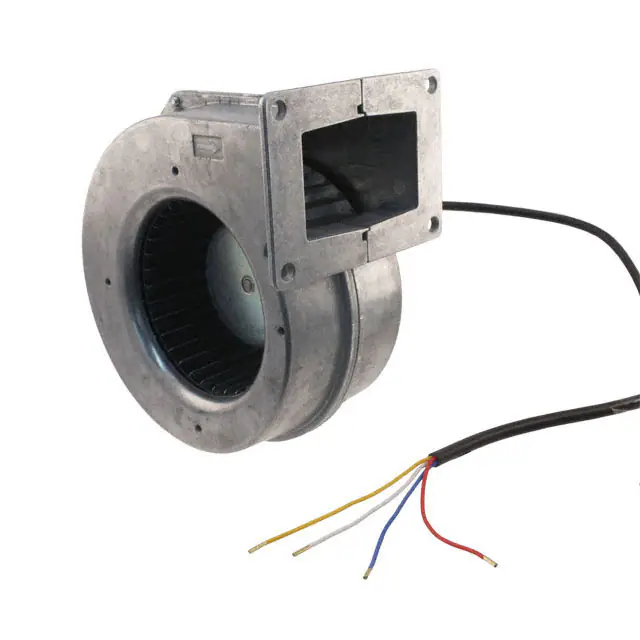

G1G120-AB67-02FAN BLOWER 178X115.0MM 24VDC |
20 | - |
|
数据表 |
EC | Box | Active | 24VDC | Rectangular/Rounded - 178mm L x 184mm H | - | - | Ball | 3.5 lbs (1.6 kg) | Blower | PWM Control, Speed Sensor (Tach) | 115.0mm | - | 40 W | CSA, EAC, UL | 2200 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP22 |
|
D1G133-AB29-52FAN BLOWER CF 170.5X215MM 24VDC |
8 | - |
|
数据表 |
D1G133 | Bulk | Active | 24VDC | Rectangular/Rounded - 170.5mm L x 180mm H | - | - | Ball | - | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 215.0mm | 64.0dB(A) | 105 W | CSA, UL | 1780 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|
9W2TGA48P0G001FAN IMP MTRZD 175X69MM 48VDC |
22 | - |
|
数据表 |
San Ace 175W | Box | Active | 48VDC | Round - 175mm Dia | 611.0 CFM (17.11m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | 2.2 lbs (997.9 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | 80.0dB(A) | 185 W | - | 5700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|

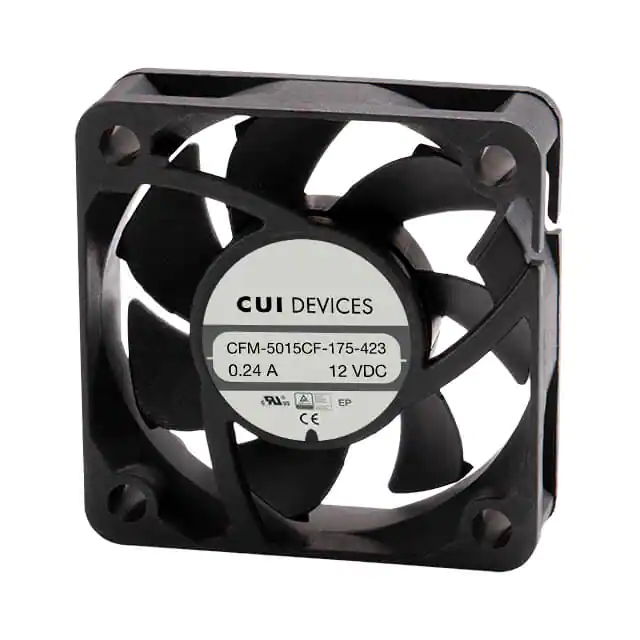

CFM-5015CF-130-224FAN AXIAL 50X15.5MM 12VDC WIRE |
48 | - |
|
数据表 |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 7.8 CFM (0.218m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 15.50mm | 22.4dB(A) | 720 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-08032CBLW12FAN AXIAL 80.5X32MM 12VDC WIRE |
45 | - |
|
数据表 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 39.6 CFM (1.11m³/min) | 0.187 in H2O (46.6 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | - | 32.00mm | 35.5dB(A) | 1.32 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9RA0912S4D001192X25MM 12V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA0924G4D00192X25MM 24V, LOW NOISE DC LCKRTR |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA0924F4D00192X25MM 24V, LOW NOISE DC LCKRTR |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA0924S4D00192X25MM 24V, LOW NOISE DC LCKRTR |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
