直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0812J4001FAN AXIAL 80X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.20mm | 48.0dB(A) | 7.2 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0812J40011FAN AXIAL 80X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.20mm | 48.0dB(A) | 7.2 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0824G4001FAN AXIAL 80X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.20mm | 45.0dB(A) | 5.04 W | CSA, TUV, UL | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
DV5218/2NFAN AXIAL 127X38MM 48VDC WIRE |
9 | - |
|
数据表 |
DV5200 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 159.0 CFM (4.45m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 69.0dB(A) | 18.5 W | - | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

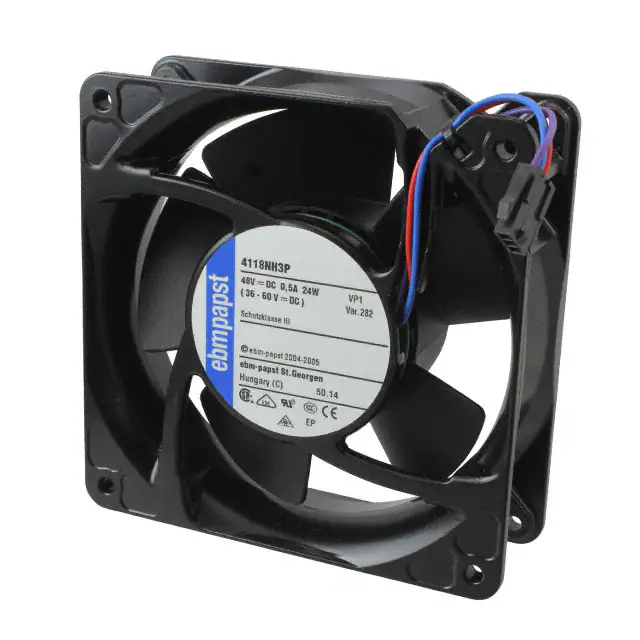

4118NH3P-282FAN AXL 119X38MM 48VDC RECT CONN |
14 | - |
|
数据表 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 182.4 CFM (5.11m³/min) | - | Ball | 0.26 lb (117.93 g) | Tubeaxial | PWM Control | 38.00mm | 64.0dB(A) | 24 W | CE, CSA, UL, VDE | 6000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Position Rectangular Connector | - |
|
OD172SAP-12HBFAN AXIAL 172X50.8MM 12VDC WIRE |
11 | - |
|
数据表 |
OD172S | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.750 in H2O (186.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 52.0dB | - | cURus, TUV | 3200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9WL0912P1F001FAN AXIAL 92X38MM 12VDC WIRE |
22 | - |
|
数据表 |
San Ace 92W | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 11.4 W | cURus, TUV | 7000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

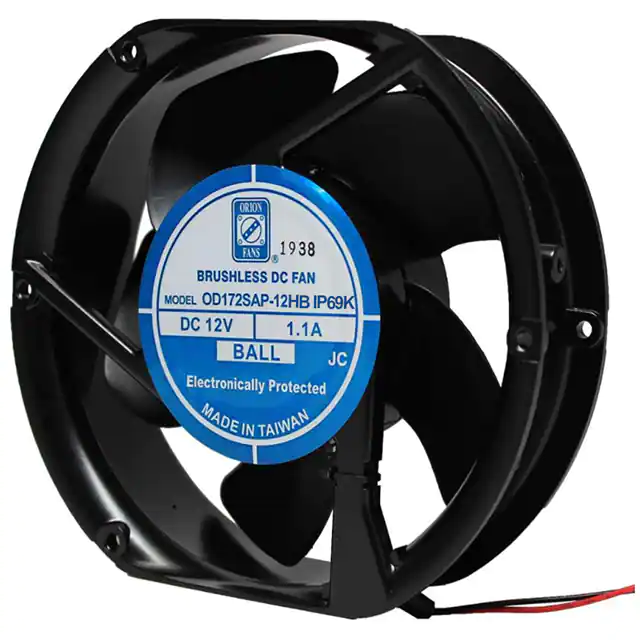

OD172SAP-12MBXCIP69KFAN AXIAL 172X51.6MM 12VDC WIRE |
3 | - |
|
数据表 |
OD172SAP XC | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 152mm H | 263.0 CFM (7.36m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Auto Restart | 51.60mm | 57.0dB | 13.2 W | CE, cURus, TUV, UR | 3500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
MSI1769H24B1+7-BBRFAN IMP MTRZD 175X69MM 24VDC |
15 | - |
|
数据表 |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
9WL0948P1F601FAN AXIAL 92X38MM 48VDC WIRE |
4 | - |
|
数据表 |
San Ace 92W | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 11.52 W | cURus, TUV | 7000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
ODB17567-12HB10AFAN IMP MTRZD 175X67MM 12VDC |
9 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Round - 175mm Dia | 298.0 CFM (8.34m³/min) | 1.380 in H2O (343.7 Pa) | Ball | 1.9 lbs (900.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 67.00mm | 64.0dB | 50.4 W | CE, TUV | 3000 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
109E1324A102FAN AXIAL 127X38MM 24VDC WIRE |
9 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 52.0dB(A) | 16.8 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
ODB19069-48HB10AFAN IMP MTRZD 189.5X68.5MM 48VDC |
3 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Round - 189.5mm Dia | 432.0 CFM (12.10m³/min) | 2.810 in H2O (700.0 Pa) | Ball | 2.205 lb (1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 68.50mm | 77.0dB | 122 W | CE, cURus, TUV, UR | 3500 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
OD172SAP-48HBIP69KFAN AXIAL 172X51MM 48VDC WIRE |
10 | - |
|
数据表 |
OD172SAP-IP69K | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 52.0dB(A) | 23.5 W | CE, cURus, TUV, UR | 3300 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
RG125-19/14NFAN BLOWER CF 180X40MM 24VDC |
17 | - |
|
数据表 |
RG125N | Bulk | Active | 24VDC | Square - 180mm L x 180mm H | 51.5 CFM (1.44m³/min) | - | Ball | 1.6 lbs (725.7 g) | Blower, Centrifugal | - | 40.00mm | 58.0dB(A) | 5 W | - | 2550 RPM | -22 ~ 167°F (-30 ~ 75°C) | 2 Wire Leads | - |
|

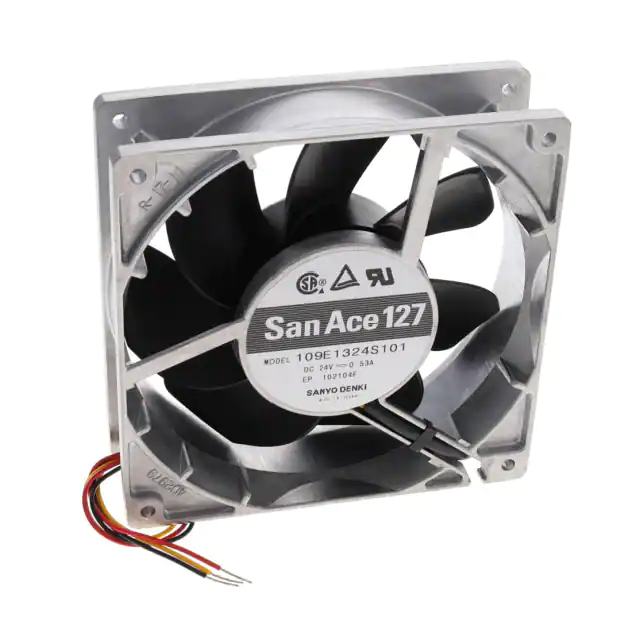

109E1324S101FAN AXIAL 127X38MM 24VDC WIRE |
19 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12.7 W | CSA, TUV, UL | 3450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9LG1424A5D001FAN AXIAL 140X51MM 24VDC WIRE |
7 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | - | 29.1 W | cURus, TUV | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109E1724K501FAN AXIAL 172X51MM 24VDC WIRE |
17 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 55.0dB(A) | 31.2 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

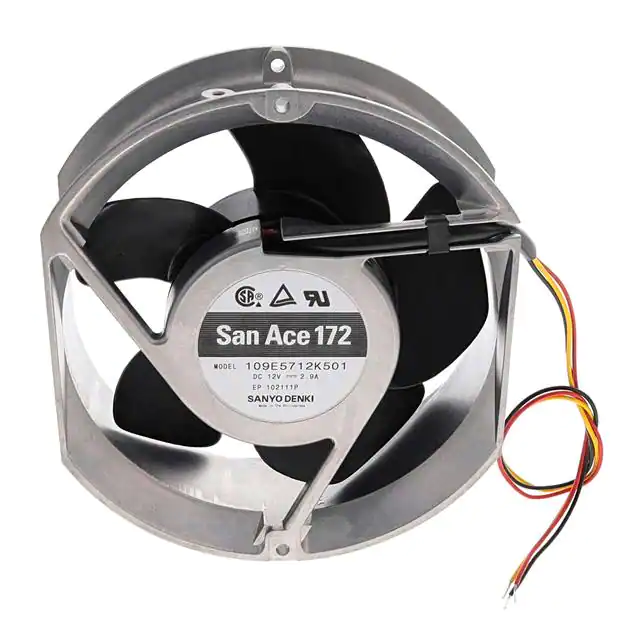

109E5712K501FAN AXIAL 172X51MM 12VDC WIRE |
15 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 60.0dB(A) | 34.8 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9LG1424P1M001FAN AXIAL 140X38MM 24VDC WIRE |
21 | - |
|
数据表 |
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 1.4 lbs (650.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
