直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15050VE-48R-GT-00FAN AXIAL 172.7X50.8MM 48VDC |
10 | - |
|
数据表 |
15050VE | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.80mm | 68.0dB(A) | 43.2 W | CE, cULus, VDE | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
9LG0812H4001FAN AXIAL 80X25MM 12VDC WIRE |
17 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.44 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
3314NNUFAN AXIAL 92X32MM 24VDC WIRE |
9 | - |
|
数据表 |
3300NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 46.9 CFM (1.31m³/min) | - | Ball | 0.419 lb (190.06 g) | Tubeaxial | - | 32.00mm | 35.0dB(A) | 1.8 W | UL | 2650 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
4112NH3FAN AXIAL 119X38MM 12VDC WIRE |
5 | - |
|
数据表 |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 182.4 CFM (5.11m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | - | 38.00mm | 65.0dB(A) | 21.6 W | CE | 6000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
9GA1212G4001FAN AXIAL 120X25.4MM 12VDC WIRE |
25 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 57.0dB(A) | 11.16 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
08080EA-12S-EUE-C80X80X80MM, 12VDC, 15,400/13,900 |
14 | - |
|
数据表 |
08080EA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 171.0 CFM (4.79m³/min) | 6.800 in H2O (1693.8 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 80.00mm | 83.5dB(A) | 144 W | CE, cULus, VDE | 15400 RPM Front, 13900 RPM Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
OD172SAP-48HBXCIP69KFAN AXIAL 172X51.6MM 48VDC WIRE |
12 | - |
|
数据表 |
OD172SAP XC | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 152mm H | 323.0 CFM (9.04m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Auto Restart | 51.60mm | 63.5dB | 49.4 W | CE, cURus, TUV, UR | 4400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
9WV1224P1H012120X38MM, DC, 24V,SPLASH PROOF,R |
5 | - |
|
数据表 |
San Ace 120W | Bulk | Active | 24VDC | Square - 120.1mm L x 120.1mm H | - | - | Ball | - | Tubeaxial | - | 38.00mm | 58.5dB(A) | - | - | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof |
|

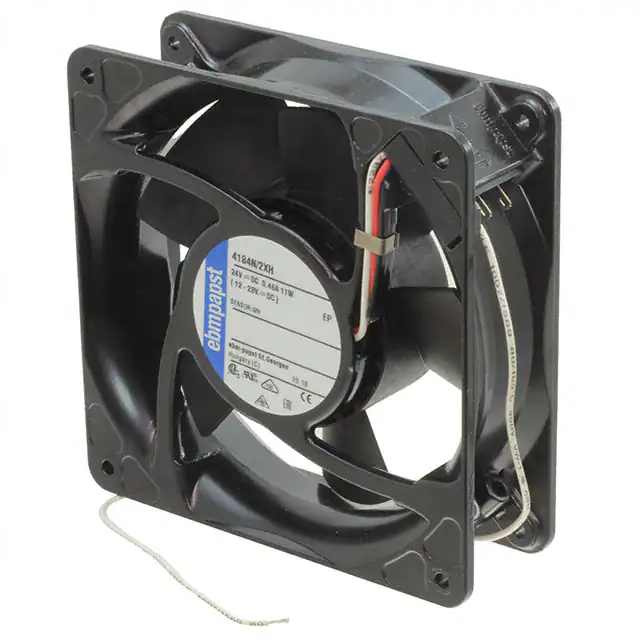

4184N/2XHFAN AXIAL 119X38MM 24VDC WIRE |
18 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 11 W | - | 4400 RPM | -22 ~ 131°F (-30 ~ 55°C) | 1 Wire Lead, 2 Terminals | - |
|
RG125-19/18NFAN BLOWER CF 180X40MM 48VDC |
22 | - |
|
数据表 |
RG125N | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 51.5 CFM (1.44m³/min) | - | Ball | 1.6 lbs (725.7 g) | Blower, Centrifugal | - | 40.00mm | 58.0dB(A) | 5 W | - | 2550 RPM | -22 ~ 167°F (-30 ~ 75°C) | 2 Wire Leads | - |
|

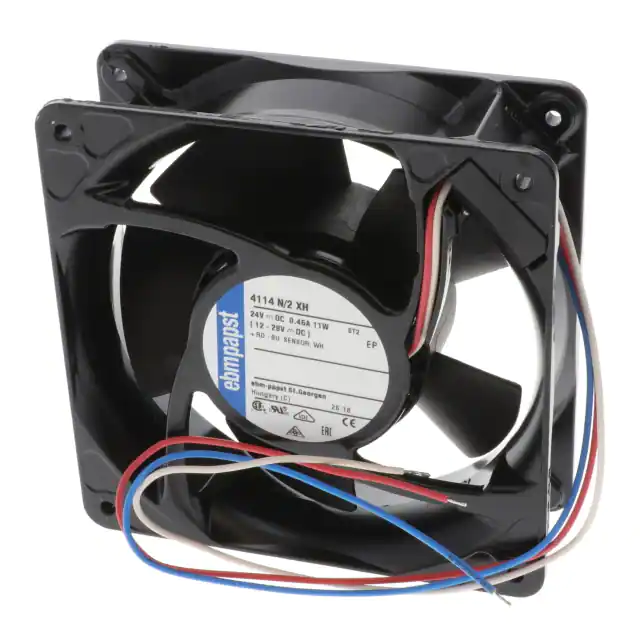

4114N/2XHFAN AXIAL 119X38MM 24VDC WIRE |
3 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 139.5 CFM (3.91m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 11 W | - | 4400 RPM | -22 ~ 131°F (-30 ~ 55°C) | 3 Wire Leads | - |
|
612J/2HFAN AXIAL 60X32MM 12VDC WIRE |
16 | - |
|
数据表 |
600J | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 41.2 CFM (1.15m³/min) | 0.363 in H2O (90.5 Pa) | Ball | 0.22 lb (99.79 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 53.0dB(A) | 7.7 W | - | 11700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WP0812H402FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9GV1412P1S001FAN AXIAL 140X38MM 12VDC WIRE |
24 | - |
|
数据表 |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 272.0 CFM (7.62m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 37.2 W | CSA, TUV, UL | 6650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
G1338H12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
W2G107-AD03-01FAN AXIAL 119X38MM 24VDC WIRE |
16 | - |
|
数据表 |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 70.0dB(A) | 3.3 W | EAC, UL | 2800 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Wire Leads | IP22 |
|
|
G1338H24B-FSRFAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
G1338L12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
9LG0912S4001FAN AXIAL 92X25MM 12VDC WIRE |
15 | - |
|
数据表 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
G1338L24B-FSRFAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
