直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA1212P4S0011FAN AXIAL 120X25.4MM 12VDC WIRE |
55 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 54.0dB(A) | 7.32 W | cURus, TUV | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GV1512M501FAN AXIAL 150X50MM 12VDC WIRE |
22 | - |
|
数据表 |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 0.993 lb (450.42 g) | Tubeaxial | Speed Sensor (Tach) | 50.00mm | 53.0dB(A) | 14.4 W | CSA, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
14539GA-12N-AA-00FAN BLOWER 145X39MM 12VDC WIRE |
66 | - |
|
数据表 |
14539GA | Box | Active | 12VDC | Square/Rounded - 145mm L x 145mm H | 51.2 CFM (1.43m³/min) | 1.550 in H2O (385.0 Pa) | Ball | - | Blower | Auto Restart | 39.00mm | 54.5dB | 15 W | - | 2450 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0803848U2B-3T3FAN 80X38MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 72 W | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
4312NH3FAN AXIAL 119X32MM 12VDC WIRE |
39 | - |
|
数据表 |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 167.0 CFM (4.68m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 55.0dB(A) | 12 W | - | 4050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
CFM-8038BF-2110-595-20FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 83.6 CFM (2.34m³/min) | 1.960 in H2O (488.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 59.5dB(A) | 21.12 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GV1512P5M03FAN AXIAL 150X50MM 12VDC WIRE |
33 | - |
|
数据表 |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | 0.993 lb (450.42 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.00mm | 53.0dB(A) | 14.4 W | CSA, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-8038BF-1110-595-20FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 83.6 CFM (2.34m³/min) | 1.960 in H2O (488.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 59.5dB(A) | 19.68 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
628HHFAN AXIAL 60X25.4MM 48VDC WIRE |
62 | - |
|
数据表 |
620 | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 43.0dB(A) | 4.2 W | CSA, UL, VDE | 8200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238BF-180-585DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.5dB(A) | 13.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA1212P4G0011FAN AXIAL 120X25.4MM 12VDC WIRE |
55 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 57.0dB(A) | 11.16 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GV1224P1H011FAN AXIAL 119X38MM 24VDC WIRE |
24 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GV0948P1H03FAN AXIAL 92X38MM 48VDC WIRE |
6 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 39.4 W | CSA, TUV, UL | 8500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-9238BF-280-585DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.5dB(A) | 13.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0923824U2B-2T2FAN 92X38MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 67.0dB(A) | 60 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0923824H2B-2T2FAN 92X38MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 28.8 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0923824M2B-3T3FAN 92X38MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 21.6 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
PFR0612UHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 56.7 CFM (1.59m³/min) | 1.979 in H2O (492.9 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 60.2dB(A) | 12 W | CE, cURus, TUV | 12500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
PFR0612DHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 66.0 CFM (1.85m³/min) | 2.502 in H2O (623.2 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 63.3dB(A) | 19.2 W | CE, cURus, TUV | 14500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

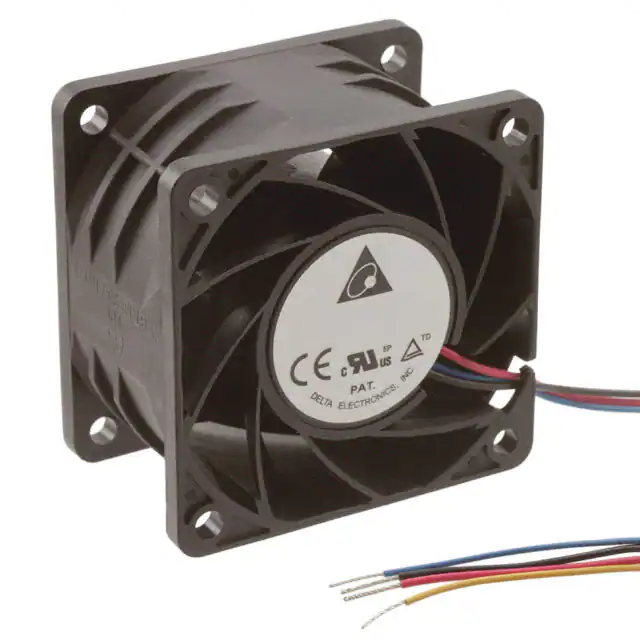

PFR0612XHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.2 CFM (2.13m³/min) | 3.185 in H2O (793.4 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 67.7dB(A) | 27.6 W | CE, cURus, TUV | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
