直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0923812U2B-BT4FAN 92X38MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 30 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0923848H2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 57.6 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0923848U2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 67.0dB(A) | 120 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0803812L2B-3T3FAN 80X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 4.8 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
4715KL-05W-B20-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
1 | - |
|
数据表 |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | - | 38.40mm | 41.0dB | 5.04 W | CE, CSA, UL, VDE | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4715KL-05W-B30-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
11938KA | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | - | 38.40mm | 42.5dB | 7.44 W | CE, CSA, UL, VDE | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031162AFAN AXIAL 80X25.4MM 12VDC FE12B3 |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 36.2dB(A) | 2 W | - | 3574 RPM | - | 2 Wire Leads | - |
|
|
19031163AFAN AXIAL 80X25.4MM 24VDC FE24B3 |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 36.2dB(A) | 2 W | - | 3628 RPM | - | 2 Wire Leads | - |
|
|
DC0603812J2B-3T3FAN 60X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 8.16 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0603812L2B-3T3FAN 60X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 12 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0603812I2B-3T3FAN 60X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 6.24 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|

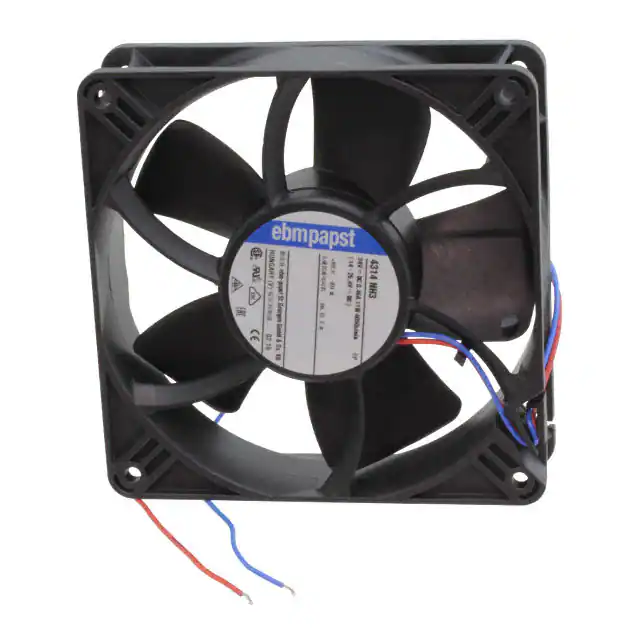

4314NH3FAN AXIAL 119X32MM 24VDC WIRE |
18 | - |
|
数据表 |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 167.0 CFM (4.68m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 55.0dB(A) | 11 W | - | 4050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
PSD1204PBB1-A(2).Z.F.PWM.GNFAN AXIAL 40X24MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PSD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 21.6 CFM (0.605m³/min) | 1.233 in H2O (307.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 24.00mm | 55.7dB(A) | 6 W | - | 14700 RPM | - | 3 Wire Leads | - |
|
9RF0924P1H001FAN AXIAL 92X38MM 24VDC WIRE |
22 | - |
|
数据表 |
San Ace 92RF | Bulk | Active | 24VDC | Round - 92mm Dia | 42.4 CFM (1.19m³/min) | 0.630 in H2O (156.9 Pa) | Ball | - | Tubeaxial | PWM Control, Reversible Flow, Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 2.2 W | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9HV0924P4H0011FAN AXIAL 92X25.2MM 24VDC WIRE |
19 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 52.0dB(A) | 9.12 W | cURus, TUV | 6050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0923848M2B-BT0FAN 92X38MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 43.2 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

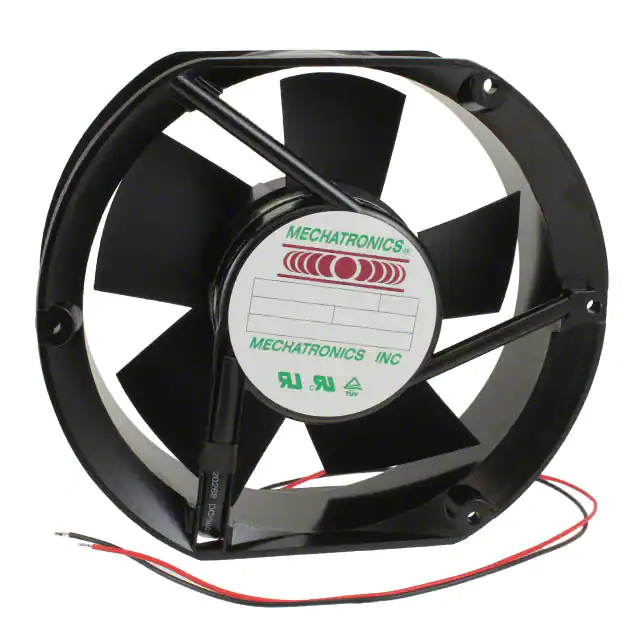

MA1751E12B-FSRFAN AXIAL 172X50.8MM 12VDC WIRE |
14 | - |
|
数据表 |
MA1751 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Thermal Overload Protector (TOP) | 50.80mm | 61.0dB(A) | - | cUL, TUV, UL | 3150 RPM | - | 2 Wire Leads | - |
|
|
9WP0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.00mm | 40.0dB(A) | 4.56 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9HVA0812P1G0011FAN AXIAL 80X38MM 12VDC WIRE |
7 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 132.0 CFM (3.70m³/min) | 5.400 in H2O (1345.1 Pa) | Ball | 0.485 lb (219.99 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 73.0dB(A) | 42 W | cURus, TUV | 16100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
15050VA-48R-GA-00FAN AXIAL 172.7X50.8MM 48VDC |
20 | - |
|
数据表 |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 50.80mm | 68.0dB(A) | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
