直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G1338S12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 87.0 CFM (2.44m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.784 lb (355.62 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 2 Wire Leads | - |
|

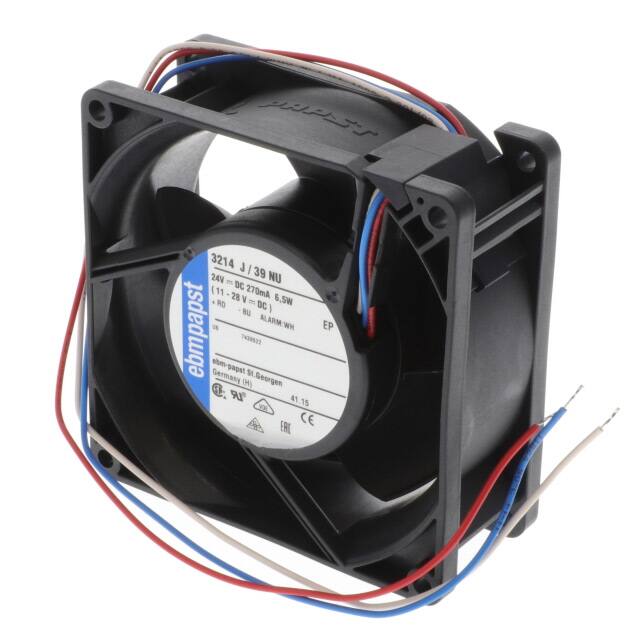

3214J/39NUFAN AXIAL 92X38MM 24VDC WIRE |
25 | - |
|
数据表 |
3200J, S-Force | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 76.5 CFM (2.14m³/min) | - | Ball | - | Tubeaxial | Alarm Sensor | 38.00mm | 51.0dB(A) | 6.5 W | - | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
DC1203824U2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 18 W | CE, cURus | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
109E5712M501FAN AXIAL 172X51MM 12VDC WIRE |
15 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 41.0dB(A) | 5.76 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203824V2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 19.2 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0923848M2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 58.0dB(A) | 43.2 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
W2G115-AE31-13FAN AXIAL 127X38MM 24VDC TERM |
14 | - |
|
数据表 |
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 130.0 CFM (3.64m³/min) | - | Ball | 1.6 lbs (725.7 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 5.7 W | - | - | - | 2 Terminals | - |
|
|
DC0803848H2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 48 W | CE, cURus | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0803848M2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 36.48 W | CE, cURus | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0923812M2B-BT4FAN 92X38MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 10.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0803848U2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 72 W | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|

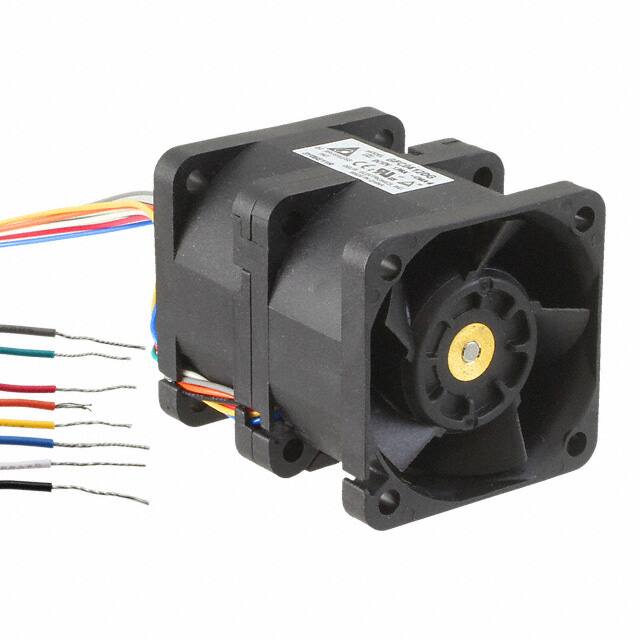

GFC0412DG-CMA4FAN AXIAL DUAL 40X48MM 12VDC |
0 | - |
|
数据表 |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 32.4 CFM (0.907m³/min) | 2.382 in H2O (593.3 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.00mm | 64.4dB(A) | 16.8 W | CE, cURus, TUV | 15150 Front, 14300 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
DC0923824M2B-BT4FAN 92X38MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 21.6 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
DC0923812V2B-2T0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 72.0dB(A) | 35.4 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0803848L2B-BT0FAN 80X38MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 19.2 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1224F4021FAN AXIAL 119X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 2.4 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G1212F4021FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 2.28 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238BF-180-585-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 13.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-165-535-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 53.5dB(A) | 8.4 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0812J4D001FAN AXIAL 80X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.20mm | 48.0dB(A) | 7.2 W | CSA, TUV, UL | 7400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
