交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MFA420PS24-STFAC/DC CONVERTER 24V 420W XP Power |
0 | - |
|
数据表 |
MFA (420W) | Box | Active | Enclosed | 1 | 24V | - | - | 420W (434W Forced Air) | - | - | 85 ~ 264 VAC | - | 17.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.33" W x 2.80" H (172.7mm x 84.5mm x 52.8mm) |
|

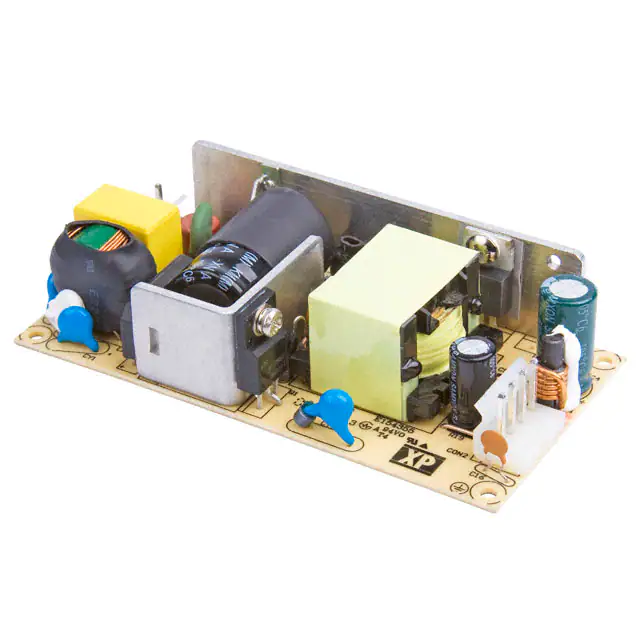

VCT40US05AC/DC CONVERTER 5V 40W XP Power |
0 | - |
|
数据表 |
VCT (60W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 40W | - | - | 85 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
|

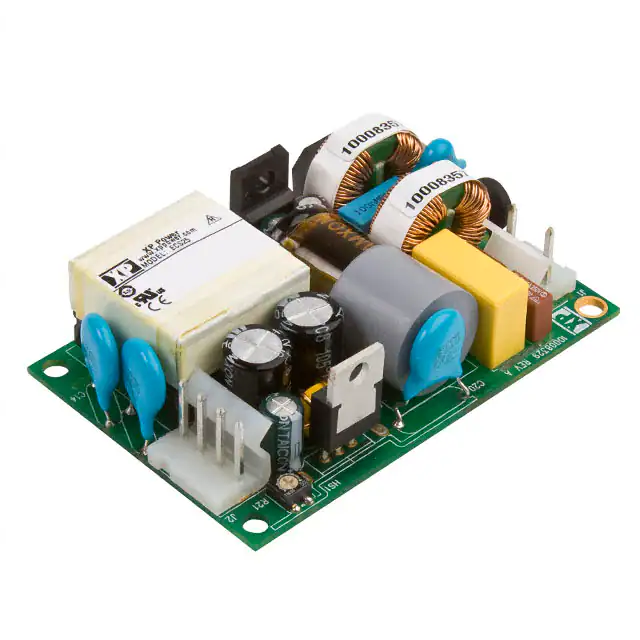

ECS25US24AC/DC CONVERTER 24V 25W XP Power |
298 | - |
|
数据表 |
ECS (25W) | Box | Active | Open Frame | 1 | 24V | - | - | 25W | - | - | 80 ~ 264 VAC | - | 1.04 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.2mm) |
|
|
ECS25US15AC/DC CONVERTER 15V 25W XP Power |
141 | - |
|
数据表 |
ECS (25W) | Box | Active | Open Frame | 1 | 15V | - | - | 25W | - | - | 80 ~ 264 VAC | - | 1.67 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.2mm) |
|
ECS45US15AC/DC CONVERTER 15V 45W XP Power |
236 | - |
|
数据表 |
ECS (45W) | Box | Active | Open Frame | 1 | 15V | - | - | 45W | - | - | 80 ~ 264 VAC | - | 3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|
ECS60US15AC/DC CONVERTER 15V 60W XP Power |
906 | - |
|
数据表 |
ECS (60W) | Box | Active | Open Frame | 1 | 15V | - | - | 60W | - | - | 80 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|

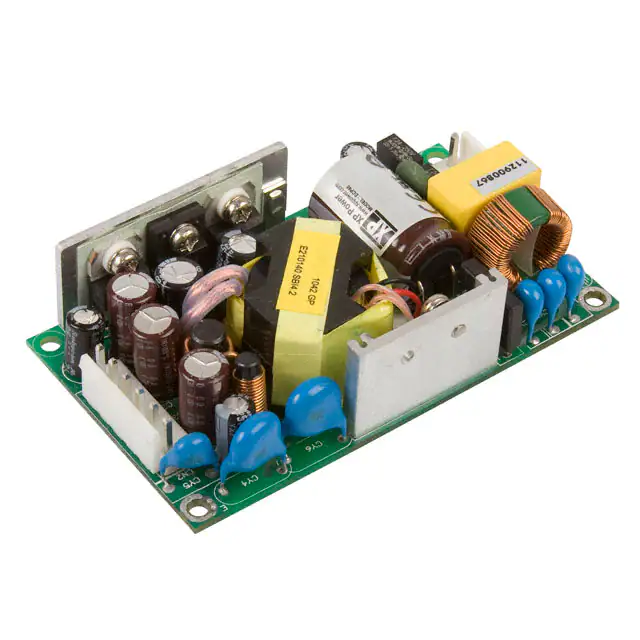

ECP40UD03AC/DC CONVERTER 5V 24V 40W XP Power |
258 | - |
|
数据表 |
ECP (40W) | Box | Active | Open Frame | 2 | 5V | 24V | - | 40W | - | - | 85 ~ 264 VAC | - | 5 A | - | 1 A | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.01" H (88.9mm x 50.8mm x 26.0mm) |
|

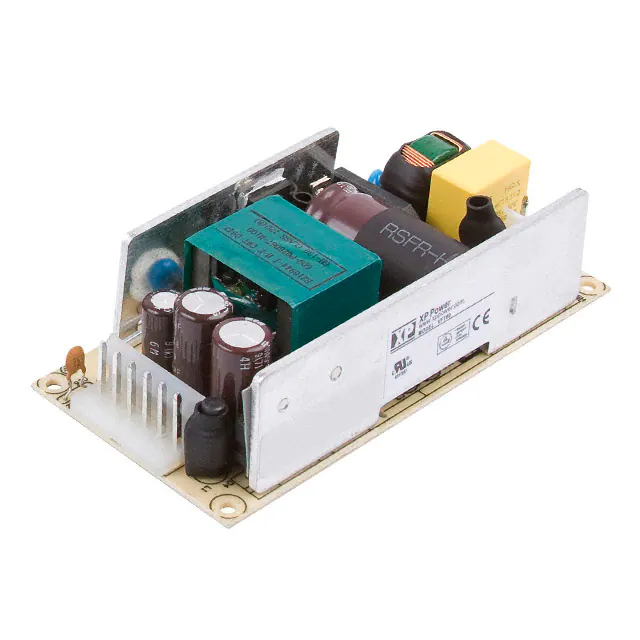

VFT80US12AC/DC CONVERTER 12V 80W XP Power |
0 | - |
|
数据表 |
VFT (80W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 6.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) |
|
|
VFT80US24AC/DC CONVERTER 24V 80W XP Power |
0 | - |
|
数据表 |
VFT (80W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) |
|
ECL15US03-TAC/DC CONVERTER 3.3V 15W XP Power |
0 | - |
|
数据表 |
ECL (15W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
