交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECL30UD01-SAC/DC CONVERTER +/-12V 30W XP Power |
50 | - |
|
数据表 |
ECL (30W) | Box | Active | Enclosed | 2 | 12V | -12V | - | 30W | - | - | 85 ~ 264 VAC | - | 1.3 A | - | 1.3 A | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
ECE40US24-SAC/DC CONVERTER 24V 40W XP Power |
293 | - |
|
数据表 |
ECE (40W) | Box | Active | Enclosed | 1 | 24V | - | - | 40W | - | - | 85 ~ 264 VAC | - | 1.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|

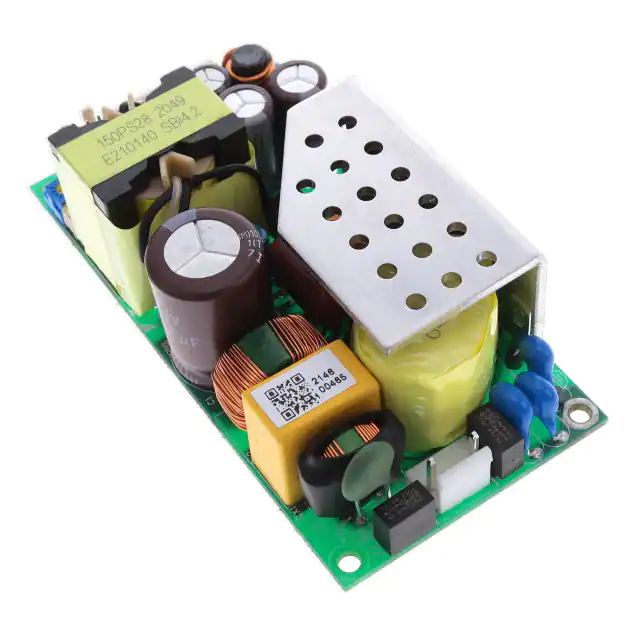

ECP150PS28AC/DC CONVERTER 28V 100W XP Power |
158 | - |
|
数据表 |
ECP (150W) | Box | Active | Open Frame | 1 | 28V | - | - | 100W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
VCS70US05AC/DC CONVERTER 5V 70W XP Power |
0 | - |
|
数据表 |
VCS (70W) | Box | Active | Enclosed | 1 | 5V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.12" L x 3.88" W x 1.61" H (130.0mm x 98.5mm x 41.0mm) |
|
|
VCS70US15AC/DC CONVERTER 15V 70W XP Power |
0 | - |
|
数据表 |
VCS (70W) | Box | Active | Enclosed | 1 | 15V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 4.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.12" L x 3.88" W x 1.61" H (130.0mm x 98.5mm x 41.0mm) |
|
|
VCS70US48AC/DC CONVERTER 48V 70W XP Power |
0 | - |
|
数据表 |
VCS (70W) | Box | Active | Enclosed | 1 | 48V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 1.46 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.12" L x 3.88" W x 1.61" H (130.0mm x 98.5mm x 41.0mm) |
|
GCS180PS12AC/DC CONVERTER 12V 150W XP Power |
605 | - |
|
数据表 |
GCS (180W) | Box | Active | Open Frame | 1 | 12V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
LCS150US15AC/DC CONVERTER 15V 150W XP Power |
0 | - |
|
数据表 |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 150W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LCS150US48AC/DC CONVERTER 48V 158W XP Power |
0 | - |
|
数据表 |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 158W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
ECP180PS12AC/DC CONVERTER 12V 120W XP Power |
30 | - |
|
数据表 |
ECP180 (180W) | Box | Active | Open Frame | 1 | 12V | - | - | 120W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
