| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
GCS350PS56AC/DC CONVERTER 56V 200W XP Power |
57 | - |
|
数据表 |
GCS (350W) | Box | Active | Open Frame | 1 | 56V | - | - | 200W (350W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
ECP225PS12-AAC/DC CONVERTER 12V 150W XP Power |
265 | - |
|
数据表 |
ECP225-A (225W) | Box | Active | Open Frame | 1 | 12V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
|

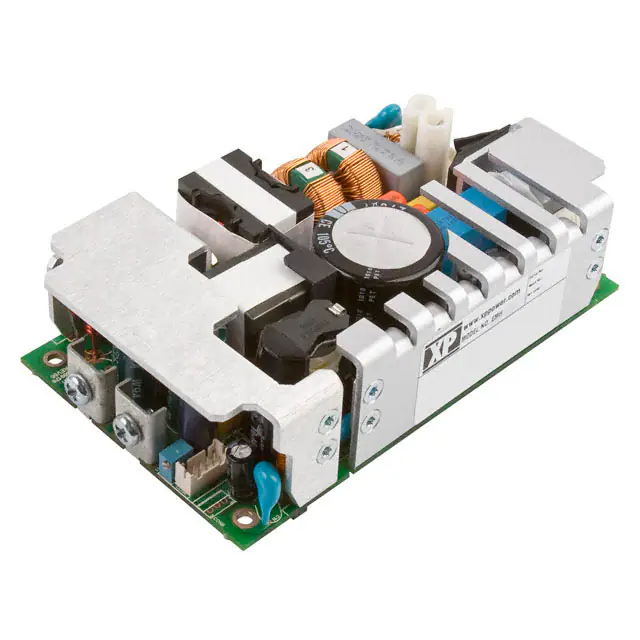

EMH250PS24AC/DC CONVERTER 24V 250W XP Power |
142 | - |
|
数据表 |
EMH (250W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W | - | - | 80 ~ 275 VAC | - | 10.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
EMH250PS48AC/DC CONVERTER 48V 250W XP Power |
129 | - |
|
数据表 |
EMH (250W) | Box | Active | Open Frame | 1 | 48V | - | - | 250W | - | - | 80 ~ 275 VAC | - | 5.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
EMH250PS12AC/DC CONVERTER 12V 250W XP Power |
74 | - |
|
数据表 |
EMH (250W) | Box | Active | Open Frame | 1 | 12V | - | - | 250W | - | - | 80 ~ 275 VAC | - | 21 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
EMH250PS18AC/DC CONVERTER 18V 250W XP Power |
28 | - |
|
数据表 |
EMH (250W) | Box | Active | Open Frame | 1 | 18V | - | - | 250W | - | - | 80 ~ 275 VAC | - | 14 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
|
EML15US48-TAC/DC CONVERTER 48V 15W XP Power |
0 | - |
|
数据表 |
EML15 (15W) | Box | Active | Open Frame | 1 | 48V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 320 mA | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
|
CHD250PS24AC/DC CONVERTER 24V 250W XP Power |
209 | - |
|
数据表 |
CHD250 (250W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W | - | - | 80 ~ 264 VAC | - | 10.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
GSP500PS48-EFAC/DC CONVERTER 48V 500W XP Power |
130 | - |
|
数据表 |
GSP500 (500W) | Box | Active | Enclosed | 1 | 48V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 10.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.71" L x 4.00" W x 1.65" H (170.4mm x 101.6mm x 41.9mm) |
|
HDS3000PS30AC/DC CONVERTER 30V 3000W XP Power |
26 | - |
|
数据表 |
HDS3000 (3000W) | Box | Active | Enclosed | 1 | 30V | - | - | 3000W | - | - | 90 ~ 264 VAC | - | 100 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm) |
