交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GCS250PS12AC/DC CONVERTER 12V 180W XP Power |
1,275 | - |
|
数据表 |
GCS (250W) | Box | Active | Open Frame | 1 | 12V | - | - | 180W (250W Forced Air) | - | - | 85 ~ 264 VAC | - | 15 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
|
GCS250PS48AC/DC CONVERTER 48V 180W XP Power |
768 | - |
|
数据表 |
GCS (250W) | Box | Active | Open Frame | 1 | 48V | - | - | 180W (250W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
VFT80US05AC/DC CONVERTER 5V 80W XP Power |
0 | - |
|
数据表 |
VFT (80W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 12 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) |
|
|
VFT80US15AC/DC CONVERTER 15V 80W XP Power |
0 | - |
|
数据表 |
VFT (80W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 5.53 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) |
|

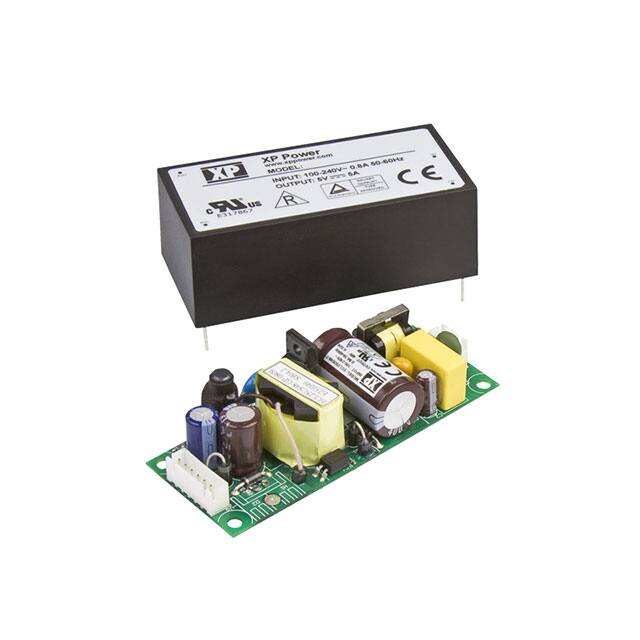

ECL10US03-TAC/DC CONVERTER 3.3V 10W XP Power |
0 | - |
|
数据表 |
ECL (10W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 10W | - | - | 85 ~ 264 VAC | - | 2.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
GCS350PS12AC/DC CONVERTER 12V 200W XP Power |
295 | - |
|
数据表 |
GCS (350W) | Box | Active | Open Frame | 1 | 12V | - | - | 200W (350W Forced Air) | - | - | 85 ~ 264 VAC | - | 16.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C | 80 Plus® Bronze, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
ECM100UQ44AC/DC CNVRTR 5V 24V +/-15V 80W XP Power |
322 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 4 | 5V | 24V | 15V | 80W (100W Forced Air) | -15V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 2 A | ITE (Commercial), Medical | - | 800 mA | 500 mA | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
CCB200PS24AC/DC CONVERTER 24V 199W XP Power |
252 | - |
|
数据表 |
CCB200 (200W) | Box | Active | Open Frame | 1 | 24V | - | - | 199W | - | - | 80 ~ 264 VAC | - | 8.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
|
CCB200PS48AC/DC CONVERTER 48V 202W XP Power |
250 | - |
|
数据表 |
CCB200 (200W) | Box | Active | Open Frame | 1 | 48V | - | - | 202W | - | - | 80 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
VCT60US12AC/DC CONVERTER 12V 60W XP Power |
0 | - |
|
数据表 |
VCT (60W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
