交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

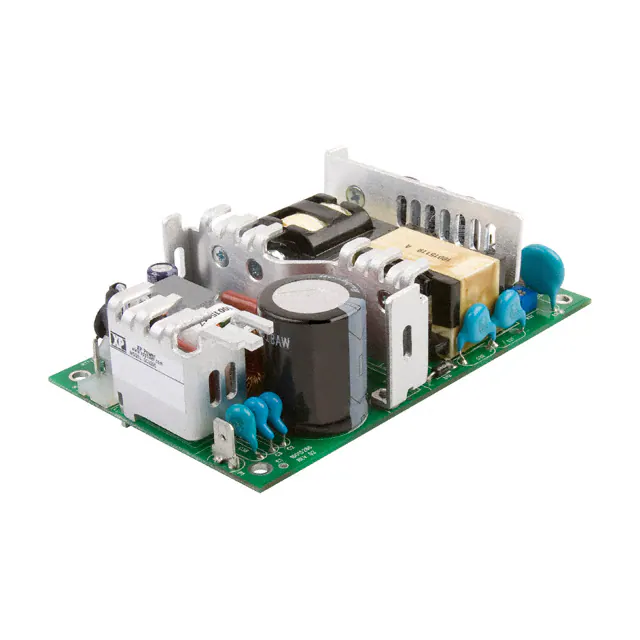

GCS250PS24-RAC/DC CONVERTER 24V 180W XP Power |
0 | - |
|
数据表 |
GCS (250W) | Box | Active | Open Frame | 1 | 24V | - | - | 180W (250W Forced Air) | - | - | 85 ~ 264 VAC | - | 7.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
|
GCS250PS28-RAC/DC CONVERTER 28V 180W XP Power |
0 | - |
|
数据表 |
GCS (250W) | Box | Active | Open Frame | 1 | 28V | - | - | 180W (250W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
|
GCS250PS48-RAC/DC CONVERTER 48V 180W XP Power |
0 | - |
|
数据表 |
GCS (250W) | Box | Active | Open Frame | 1 | 48V | - | - | 180W (250W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
LCL500PS27AC/DC CONVERTER 27V 500W XP Power |
0 | - |
|
数据表 |
LCL (500W) | Box | Active | Enclosed | 1 | 27V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 18.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
|

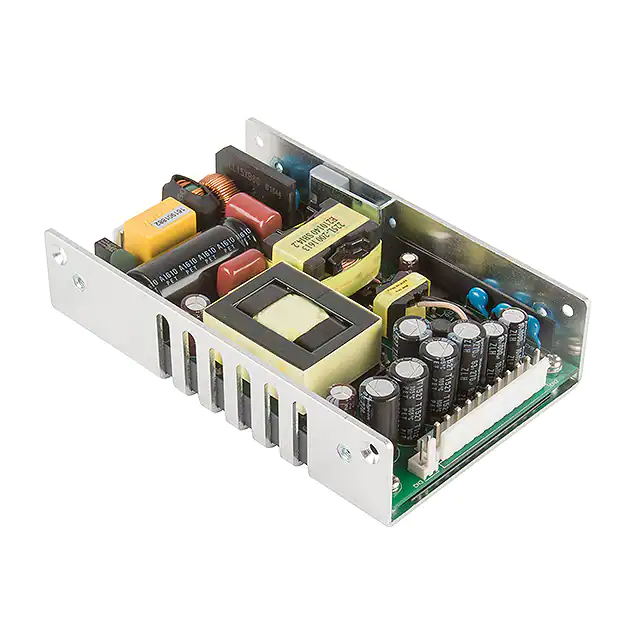

UCP225PS12AC/DC CONVERTER 12V 150W XP Power |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
|
|
UCP225PS15AC/DC CONVERTER 15V 150W XP Power |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
|
|
UCP225PS24AC/DC CONVERTER 24V 150W XP Power |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
|
|
UCP225PS28AC/DC CONVERTER 28V 150W XP Power |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 28V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 5.36 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
