交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECL30UT03-TAC/DC CONVERTER 5V +/-15V 30W XP Power |
12 | - |
|
数据表 |
ECL (30W) | Box | Active | Open Frame | 3 | 5V | 15V | -15V | 30W | - | - | 85 ~ 264 VAC | - | 3 A | - | 500 mA | ITE (Commercial) | - | 500 mA | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
SDS60UT06AC/DC CONVERTER 5V +/-12V 60W XP Power |
12 | - |
|
数据表 |
SDS (60W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 60W | - | - | 90 ~ 264 VAC | - | 6 A | - | 3 A | ITE (Commercial) | - | 800 mA | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) |
|
ECE80US24-SAC/DC CONVERTER 24V 80W XP Power |
6 | - |
|
数据表 |
ECE80 (80W) | Box | Active | Enclosed | 1 | 24V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 3.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.45" L x 1.87" W x 1.12" H (113.0mm x 47.5mm x 28.5mm) |
|
ECM100US15AC/DC CONVERTER 15V 100W XP Power |
2 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 1 | 15V | - | - | 100W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 6.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
CCP550PS15-AACDC 550W OPEN FRAME XP Power |
10 | - |
|
数据表 |
CCP550 (550W) | Box | Active | Open Frame | 1 | 15V | - | - | 300W (549W Forced Air) | - | - | 80 ~ 264 VAC | - | 36.63 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
|
|
CCP550PS36-AACDC 550W OPEN FRAME XP Power |
10 | - |
|
数据表 |
CCP550 (550W) | Box | Active | Open Frame | 1 | 36V | - | - | 300W (550W Forced Air) | - | - | 80 ~ 264 VAC | - | 15.27 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
|
|
CCP550PS48-AACDC 550W OPEN FRAME XP Power |
6 | - |
|
数据表 |
CCP550 (550W) | Box | Active | Open Frame | 1 | 48V | - | - | 300W (550W Forced Air) | - | - | 80 ~ 264 VAC | - | 11.45 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
|

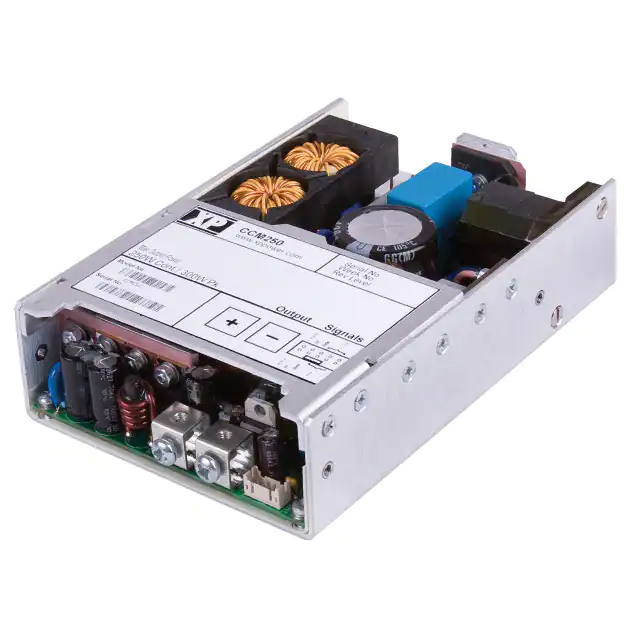

CCM250PS36AC/DC CONVERTER 36V 248W XP Power |
3 | - |
|
数据表 |
CCM (250W) | Box | Active | Open Frame | 1 | 36V | - | - | 248W | - | - | 80 ~ 275 VAC | - | 6.9 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm) |
|

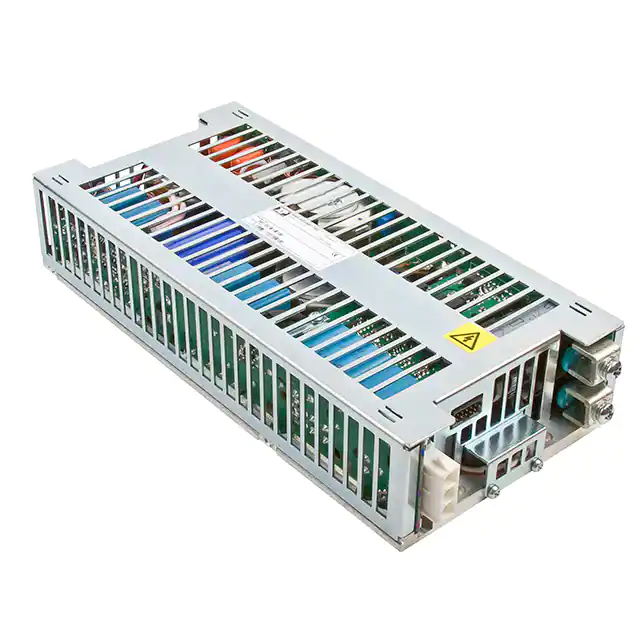

CCH400PS12AC/DC CONVERTER 12V 411W XP Power |
2 | - |
|
数据表 |
CCH400 (400W) | Box | Active | Enclosed | 1 | 12V | - | - | 411W | - | - | 90 ~ 264 VAC | - | 34 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|
|
HPF3K0PS48AC/DC 3KW PROGRAMMABLE POWER SUP XP Power |
19 | - |
|
数据表 |
HPF3K0 (3kW) | Box | Active | Enclosed | 1 | 48V | - | - | 3000W | - | - | 90 ~ 264 VAC | - | 62.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.00" L x 7.00" W x 2.50" H (283.5mm x 175.5mm x 50.0mm) |
