| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDS1500PS60AC/DC CONVERTER 60V 1500W XP Power |
76 | - |
|
数据表 |
HDS1500 (1500W) | Box | Active | Enclosed | 1 | 60V | - | - | 1500W | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
|
VCS50US05AC/DC CONVERTER 5V 50W XP Power |
0 | - |
|
数据表 |
VCS (50W) | Box | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.35" L x 3.07" W x 1.38" H (110.5mm x 78.0mm x 35.0mm) |
|
ECF40US15AC/DC CONVERTER 15V 40W XP Power |
0 | - |
|
数据表 |
ECF40 (40W) | Box | Active | Open Frame | 1 | 15V | - | - | 40W | - | - | 80 ~ 264 VAC | - | 2.67 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) |
|
FCS40US18AC/DC CONVERTER 18V 40W XP Power |
147 | - |
|
数据表 |
FCS40 (40W) | Box | Active | Open Frame | 1 | 18V | - | - | 40W | - | - | 80 ~ 264 VAC | - | 2.23 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
LCW100US15AC/DC CONVERTER 15V 105W XP Power |
1 | - |
|
数据表 |
LCW100 (100W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 105W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|

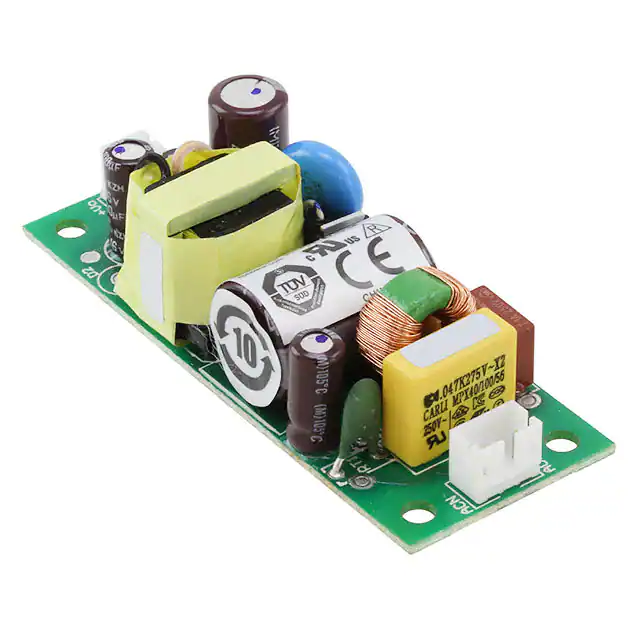

ECL05US03-TAC/DC CONVERTER 3.3V 5W XP Power |
0 | - |
|
数据表 |
ECL (5W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECL05US12-TAC/DC CONVERTER 12V 5W XP Power |
0 | - |
|
数据表 |
ECL (5W) | Box | Active | Open Frame | 1 | 12V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 410 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECL05US15-TAC/DC CONVERTER 15V 5W XP Power |
0 | - |
|
数据表 |
ECL (5W) | Box | Active | Open Frame | 1 | 15V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 330 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECL05US48-TAC/DC CONVERTER 48V 5W XP Power |
0 | - |
|
数据表 |
ECL (5W) | Box | Active | Open Frame | 1 | 48V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 100 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
VCS50US12AC/DC CONVERTER 12V 50W XP Power |
632 | - |
|
数据表 |
VCS (50W) | Box | Active | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.35" L x 3.07" W x 1.38" H (110.5mm x 78.0mm x 35.0mm) |
