交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS400M-12/FAC/DC CONVERTER 12V 250W |
12 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 12V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 20.83 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 2.66" H (142.0mm x 90.0mm x 67.5mm) | ||
|
EPG300-1324POWER SUPPLY EPG300-1324 |
24 | - |
|
数据表 |
EPG300 (300W) | Box | Active | Open Frame | 1 | 24V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) | ||
|
EPG300-1312POWER SUPPLY EPG300-1312 |
22 | - |
|
数据表 |
EPG300 (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 140W (216 Forced Air) | - | - | 90 ~ 264 VAC | - | 18 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) | ||
|
MSP-450-3.3AC/DC CONVERTER 3.3V 297W |
5 | - |
|
数据表 |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 3.3V | - | - | 297W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 90 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
MSP-450-5AC/DC CONVERTER 5V 450W |
4 | - |
|
数据表 |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 5V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 90 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
LCM300N-T-4AC/DC CONVERTER 12V 310W |
10 | - |
|
数据表 |
LCM300 (310W) | Bulk | Active | Front End | 1 | 12V | - | - | 310W | - | - | 90 ~ 264 VAC | - | 20 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) | ||
|
CCP550PS15-AACDC 550W OPEN FRAME |
10 | - |
|
数据表 |
CCP550 (550W) | Box | Active | Open Frame | 1 | 15V | - | - | 300W (549W Forced Air) | - | - | 80 ~ 264 VAC | - | 36.63 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) | ||
|
CCP550PS36-AACDC 550W OPEN FRAME |
10 | - |
|
数据表 |
CCP550 (550W) | Box | Active | Open Frame | 1 | 36V | - | - | 300W (550W Forced Air) | - | - | 80 ~ 264 VAC | - | 15.27 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) | ||
|
CCP550PS48-AACDC 550W OPEN FRAME |
6 | - |
|
数据表 |
CCP550 (550W) | Box | Active | Open Frame | 1 | 48V | - | - | 300W (550W Forced Air) | - | - | 80 ~ 264 VAC | - | 11.45 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) | ||
|
360ACMOP_12SC4OPEN FRAME AC DC CONVERTERS 1 OU |
4 | - |
|
数据表 |
360ACMOP_S4 (360W) | Retail Package | Active | Open Frame | 1 | 12V | - | - | 360W | - | - | 90 ~ 264 VAC | - | - | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.18" H (152.4mm x 101.6mm x 30.0mm) | ||
|
EPG300-1348-LPOWER SUPPLY EPG300-1348-L |
9 | - |
|
数据表 |
EPG300 (300W) | Box | Active | Open Frame | 1 | 48V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 6.25 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.21" L x 2.56" W x 1.69" H (106.9mm x 65.0mm x 42.9mm) | ||
|
HBAA40W-A+GAC/DC CONVERTER 5V +/-12V 39W |
0 | - |
|
数据表 |
Linear BAA | Bulk | Active | Linear | 3 | 5V | 12V | -12V | 39W | - | - | 100 ~ 240 VAC | - | 3 A | - | 1 A | ITE (Commercial) | - | 1 A | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 10.25" L x 4.00" W x 2.50" H (260.4mm x 101.6mm x 63.5mm) | ||
|
PSPA-1000-15AC/DC CONVERTER 15V 960W |
3 | - |
|
数据表 |
PSPA-1000 (1000W) | Box | Active | Enclosed | 1 | 15V | - | - | 960W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 64 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.69" L x 4.72" W x 3.66" H (170.0mm x 120.0mm x 93.0mm) | ||
|
|

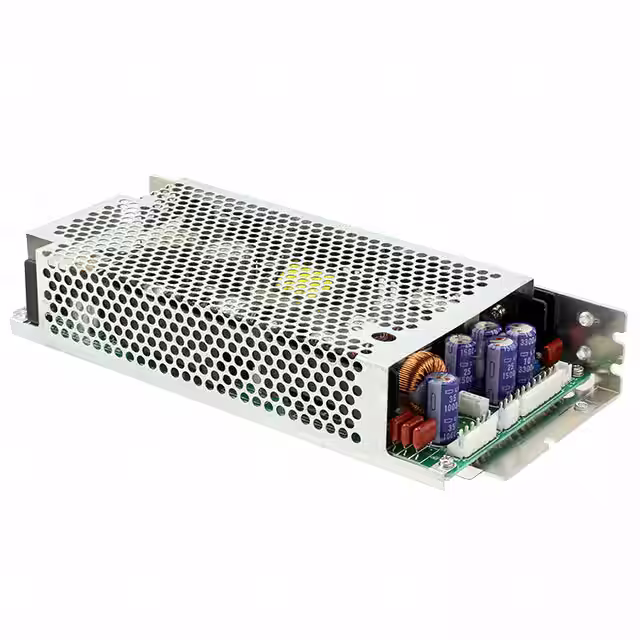

ZWQ130-5225/AAC/DC CNVRTR 5V +/-12V 5V 130W |
12 | - |
|
数据表 |
ZWQ (130W) | Bulk | Active | Enclosed | 4 | 5V | 12V | -12V | 130W | 5V | - | 85 ~ 265 VAC | - | 15 A | - | 4 A | ITE (Commercial) | - | 4 A | 10 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm) | ||
|
|
ZWQ130-5223/AAC/DC CNVRTR 5V +/-12V 3.3V 130W |
3 | - |
|
数据表 |
ZWQ (130W) | Bulk | Active | Enclosed | 4 | 5V | 12V | -12V | 130W | 3.3V | - | 85 ~ 265 VAC | - | 15 A | - | 4 A | ITE (Commercial) | - | 4 A | 10 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm) | ||
|
|
ZWQ130-5222/AAC/DC CNVRTR 5V +/-12V 12V 130W |
2 | - |
|
数据表 |
ZWQ (130W) | Bulk | Active | Enclosed | 4 | 5V | 12V | -12V | 130W | 12V | - | 85 ~ 265 VAC | - | 15 A | - | 4 A | ITE (Commercial) | - | 4 A | 4 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm) | ||
|
MEU-650A12T AAAAC/DC CONVERTER 12V 401W |
18 | - |
|
数据表 |
MEU-650T (650W) | Box | Active | Open Frame, Conformal Coated | 1 | 12V | - | - | 401W (600W Forced Air) | - | - | 110 ~ 264 VAC | - | 50 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 40.0mm) | ||
|
MEU-650A24T AAAAC/DC CONVERTER 24V 401W |
18 | - |
|
数据表 |
MEU-650T (650W) | Box | Active | Open Frame, Conformal Coated | 1 | 24V | - | - | 401W (600W Forced Air) | - | - | 110 ~ 264 VAC | - | 50 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 40.0mm) | ||
|
MEU-650A48T AAAAC/DC CONVERTER 48V 401W |
16 | - |
|
数据表 |
MEU-650T (650W) | Box | Active | Open Frame, Conformal Coated | 1 | 48V | - | - | 401W (600W Forced Air) | - | - | 110 ~ 264 VAC | - | 13.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 40.0mm) | ||
|
MEPG300-1348POWER SUPPLY MEPG300-1348 |
24 | - |
|
数据表 |
MEPG300 (300W) | Box | Active | Open Frame | 1 | 48V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 6.25 A | - | - | Medical | - | - | - | 4.4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) |
