交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2660200292PRO PM 250W 24V 10.5A |
5 | - |
|
数据表 |
- | Box | Active | Enclosed | 1 | 24V | - | - | 252W | - | - | 90 ~ 264 VAC | - | 10.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|

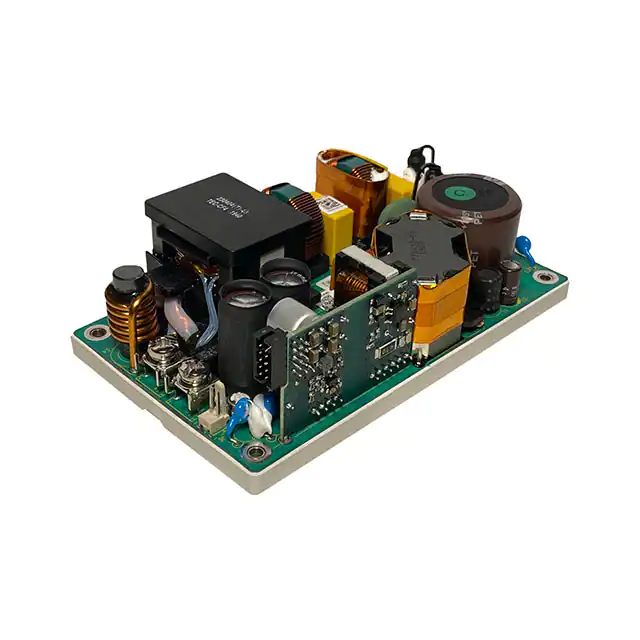

CUS400M-24/BAC/DC CONVERTER 24V 250W |
10 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 10.42 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.57" L x 3.36" W x 1.61" H (141.6mm x 85.3mm x 40.8mm) | ||
|
HRPG-600-15AC/DC CONVERTER 15V 645W |
8 | - |
|
数据表 |
HRPG-600 (600W) | Box | Active | Enclosed | 1 | 15V | - | - | 645W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 43 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) | ||
|
HRP-600N3-24PWR SUPP, BATT & COND |
8 | - |
|
数据表 |
HRP-600N3 (600W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 648W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 27 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.42" H (218.0mm x 105.0mm x 61.5mm) | ||
|
HRP-600N3-12PWR SUPP, BATT & COND |
3 | - |
|
数据表 |
HRP-600N3 (600W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 636W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 53 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.42" H (218.0mm x 105.0mm x 61.5mm) | ||
|
HRP-600N3-36PWR SUPP, BATT & COND |
3 | - |
|
数据表 |
HRP-600N3 (600W) | Bulk | Active | Enclosed | 1 | 36V | - | - | 630W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 17.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.42" H (218.0mm x 105.0mm x 61.5mm) | ||
|
360ACMOP_24SC4OPEN FRAME AC DC CONVERTERS 1 OU |
5 | - |
|
数据表 |
360ACMOP_S4 (360W) | Retail Package | Active | Open Frame | 1 | 24V | - | - | 360W | - | - | 90 ~ 264 VAC | - | - | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.18" H (152.4mm x 101.6mm x 30.0mm) | ||
|
VOF-500B-12AC-DC, 500 W, 12 VDC, SINGLE OUT |
25 | - |
|
数据表 |
VOF-500B (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 500W | - | - | 80 ~ 264 VAC | - | 41.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm) | ||
|
VOF-500B-24AC-DC, 500 W, 24 VDC, SINGLE OUT |
25 | - |
|
数据表 |
VOF-500B (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 500W | - | - | 80 ~ 264 VAC | - | 20.83 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm) | ||
|
VOF-500B-48AC-DC, 500 W, 48 VDC, SINGLE OUT |
24 | - |
|
数据表 |
VOF-500B (500W) | Box | Active | Open Frame | 1 | 48V | - | - | 500W | - | - | 80 ~ 264 VAC | - | 10.42 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm) | ||
|
CUS400M-24/UAC/DC CONVERTER 24V 250W |
12 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 10.42 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.61" H (142.0mm x 90.0mm x 41.0mm) | ||
|
ZWS150BP-24/AAC/DC CONVERTER 24V 150W |
14 | - |
|
数据表 |
ZWS-BP (150W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 150W | - | - | 85 ~ 265 VAC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | ||
|
2660200294PRO PM 350W 24V 14.6A |
6 | - |
|
数据表 |
- | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 90 ~ 264 VAC | - | 14.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
HWS150A-3/HDAC/DC CONVERTER 3.3V 99W |
2 | - |
|
数据表 |
HWS/HD (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 3.3V | - | - | 99W | - | - | 85 ~ 265 VAC, 120 ~ 370 VDC | - | 30 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.30" L x 3.23" W x 1.46" H (160.0mm x 82.0mm x 37.0mm) | ||
|
HRPG-450-15AC/DC CONVERTER 15V 450W |
3 | - |
|
数据表 |
HRPG-450 (450W) | Box | Active | Enclosed | 1 | 15V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 30 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
VGS-250C-24AC-DC, 250 W, 24 VDC, SINGLE OUT |
23 | - |
|
数据表 |
* | Box | Active | Enclosed | 1 | 24V | - | - | 120W | - | - | 85 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) | ||
|
TCI 500-148U-T500 WATT U-BRACKET CONDUCTION CO |
18 | - |
|
数据表 |
TCI 500U (500W) | Box | Active | Open Frame | 1 | 48V | - | - | 500W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 10.41 A | - | - | ITE (Commercial) | - | - | - | 4.25 kV | -30°C ~ 80°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 1.57" H (130.0mm x 83.0mm x 40.0mm) | ||
|
TCI 500-112U-T500 WATT U-BRACKET CONDUCTION CO |
12 | - |
|
数据表 |
TCI 500U (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 500W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 41.5 A | - | - | ITE (Commercial) | - | - | - | 4.25 kV | -30°C ~ 80°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 1.57" H (130.0mm x 83.0mm x 40.0mm) | ||
|
MSP-450-36AC/DC CONVERTER 36V 450W |
4 | - |
|
数据表 |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 36V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
CINT1275A2414K01AC/DC CONVERTER 24V 180W |
0 | - |
|
数据表 |
CINT1275 (275W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 180W (275W Forced Air) | - | - | 90 ~ 264 VAC | - | 7.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) |
