交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPG500-1048POWERSUPPLY |
21 | - |
|
数据表 |
EPG500 (500W) | Box | Active | Open Frame | 1 | 48V | - | - | 300W (500W Forced Air) | - | - | 90 ~ 264 VAC | - | 10.41 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | ||
|
MBS400-1012AC/DC CONVERTER 12V 400W |
12 | - |
|
数据表 |
MBS400 (400W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 400W | - | - | 90 ~ 264 VAC, 170 ~ 270 VDC | - | 33.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, IP67, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.35" L x 3.27" W x 1.65" H (212.0mm x 83.0mm x 42.0mm) | ||
|
EPG500-1024POWERSUPPLY |
21 | - |
|
数据表 |
EPG500 (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 300W (500W Forced Air) | - | - | 90 ~ 264 VAC | - | 20.83 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | ||
|
EPG500-1012POWERSUPPLY |
21 | - |
|
数据表 |
EPG500 (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 240W (400W Forced Air) | - | - | 90 ~ 264 VAC | - | 33.33 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) | ||
|
MEB-750A24T AAA24V/750W ENCLOSED POWER |
19 | - |
|
数据表 |
MEB-750A (750W) | Box | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 750W | - | - | 85 ~ 264 VAC | - | 31.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.57" H (177.8mm x 101.6mm x 40.0mm) | ||
|
MEB-750A48B AAA48V/750W ENCLOSED POWER, C14 |
18 | - |
|
数据表 |
MEB-750A (750W) | Box | Active | Enclosed, Conformal Coated | 1 | 48V | - | - | 625W | - | - | 85 ~ 264 VAC | - | 13.02 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.57" H (177.8mm x 101.6mm x 40.0mm) | ||
|
MEB-750A12B AAA12V/750W ENCLOSED POWER, C14 |
4 | - |
|
数据表 |
MEB-750A (750W) | Box | Active | Enclosed, Conformal Coated | 1 | 12V | - | - | 625W | - | - | 85 ~ 264 VAC | - | 52.08 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.57" H (177.8mm x 101.6mm x 40.0mm) | ||
|
|
NV1-453TT-NAC/DC CNVRTR 5V 3.3V +/-12V 175W |
5 | - |
|
数据表 |
NV175 (175-200W) | Bulk | Active | Open Frame | 4 | 5V | 3.3V | 12V | 175W | -12V | - | 90 ~ 264 VAC | - | 25 A | - | 15 A | ITE (Commercial), Medical | - | 5 A | 1 A | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
|
NV1-453TT-N3AC/DC CNVRTR 5V 3.3V +/-12V 175W |
2 | - |
|
数据表 |
NV175 (175-200W) | Bulk | Active | Open Frame | 4 | 5V | 3.3V | 12V | 175W | -12V | - | 90 ~ 264 VAC | - | 25 A | - | 15 A | ITE (Commercial), Medical | - | 5 A | 1 A | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.70" W x 1.25" H (127.0mm x 94.0mm x 31.8mm) | ||
|
PET800-12-074NAAC/DC CONVERTER 12V 800W |
20 | - |
|
数据表 |
PET800 (800W) | Bulk | Active | Front End | 1 | 12V | - | - | 800W | - | - | 90 ~ 264 VAC | - | 65 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.54" H (185.0mm x 73.5mm x 39.0mm) | ||
|
|

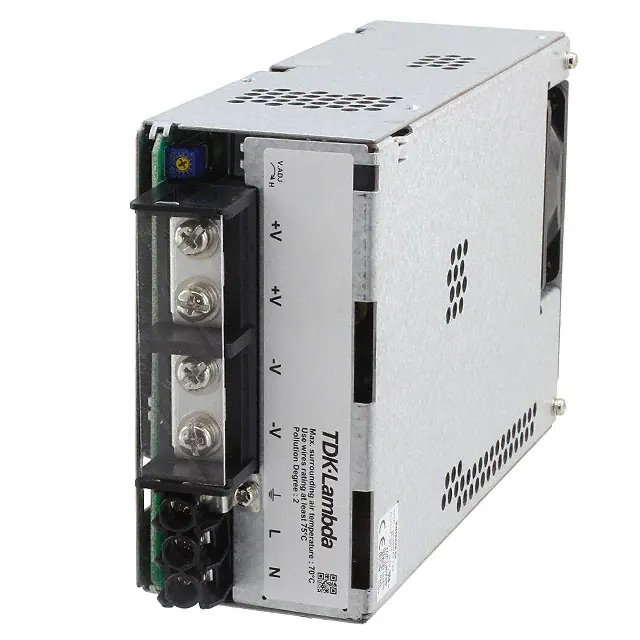

RWS600B-24/RFOAC/DC CONVERTER 24V 600W |
4 | - |
|
数据表 |
RWS-B (600W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 600W | - | - | 85 ~ 265 VAC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
|
RWS600B-36/CO2AC/DC CONVERTER 36V 601W |
4 | - |
|
数据表 |
RWS-B (600W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 36V | - | - | 601W | - | - | 85 ~ 265 VAC | - | 16.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
|
RWS600B-15/FOAC/DC CONVERTER 15V 600W |
2 | - |
|
数据表 |
RWS-B (600W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 600W | - | - | 85 ~ 265 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
|
RWS600B-36/FOAC/DC CONVERTER 36V 601W |
2 | - |
|
数据表 |
RWS-B (600W) | Bulk | Active | Enclosed | 1 | 36V | - | - | 601W | - | - | 85 ~ 265 VAC | - | 16.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
LCM600L-4-AAC/DC CONVERTER 12V 600W |
10 | - |
|
数据表 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 12V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 52 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
LCM600N-4-AAC/DC CONVERTER 15V 600W |
10 | - |
|
数据表 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 15V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 44 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
LCM600U-4-AAC/DC CONVERTER 36V 600W |
10 | - |
|
数据表 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 36V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 16.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
LCM600W-4-AAC/DC CONVERTER 48V 600W |
10 | - |
|
数据表 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 48V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 14 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
LCM600L-T-4-AAC/DC CONVERTER 12V 600W |
6 | - |
|
数据表 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 12V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 52 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
DPS-800AB-64 CSLIM TYPE CRPS, 800W PLATINUM |
17 | - |
|
数据表 |
CRPS | Box | Active | Front End | 1 | 12V | - | - | 787W | - | - | 90 ~ 264 VAC | - | 65.57 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 55°C | PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 9.31" L x 2.15" W x 1.57" H (236.6mm x 54.5mm x 40.0mm) |
