交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPB-450-48NFCO/P +48V6.8A |
6 | - |
|
数据表 |
NPB-450 (450W) | Box | Active | Enclosed | 1 | 48V | - | - | 326W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 6.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 8.07" L x 5.31" W x 2.17" H (205.0mm x 135.0mm x 55.0mm) | ||
|
HWS100A-12/HDAAC-DC, 115-230VAC, OUTPUT 12V 8. |
3 | - |
|
数据表 |
HWS-A/HD (100W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 265 VAC, 120 ~ 370 VDC | - | 8.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 1.65" W x 3.23" H (160.0mm x 42.0mm x 82.0mm) | ||
|
LFM420M120CAC-DC SWITCHING POWER MODULE,90- |
2 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 12V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 35 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M480CAC-DC SWITCHING POWER MODULE,90- |
12 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 48V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.75 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M300CAC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 30V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M360CAC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 36V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 11.67 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M280CAC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 28V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M480C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 48V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.75 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M280C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 28V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M540C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 54V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.78 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M540CAC-DC SWITCHING POWER MODULE,90- |
1 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 54V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.78 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M300C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 30V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M240C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 24V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 17.5 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420M360C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420M (420W) | Tray | Active | Enclosed | 1 | 36V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 11.67 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|

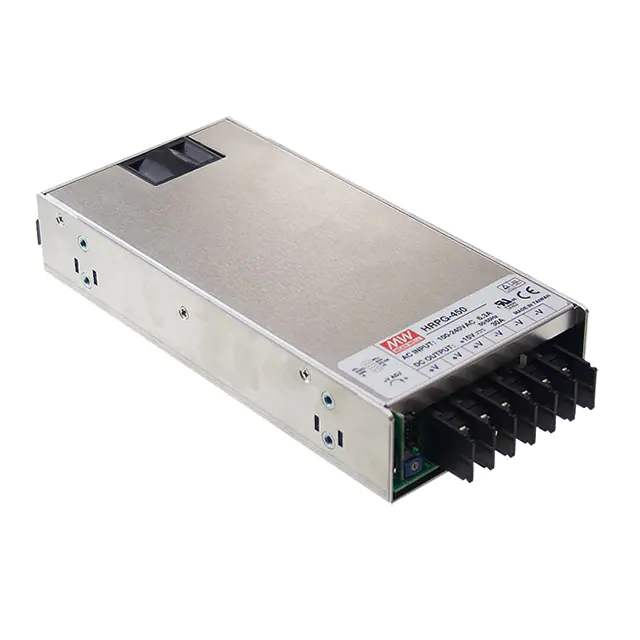

HRPG-450-48AC/DC CONVERTER 48V 456W |
12 | - |
|
数据表 |
HRPG-450 (450W) | Box | Active | Enclosed | 1 | 48V | - | - | 456W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 9.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
HRPG-450-36AC/DC CONVERTER 36V 450W |
4 | - |
|
数据表 |
HRPG-450 (450W) | Box | Active | Enclosed | 1 | 36V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
HRPG-450-5AC/DC CONVERTER 5V 450W |
3 | - |
|
数据表 |
HRPG-450 (450W) | Box | Active | Enclosed | 1 | 5V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 90 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|

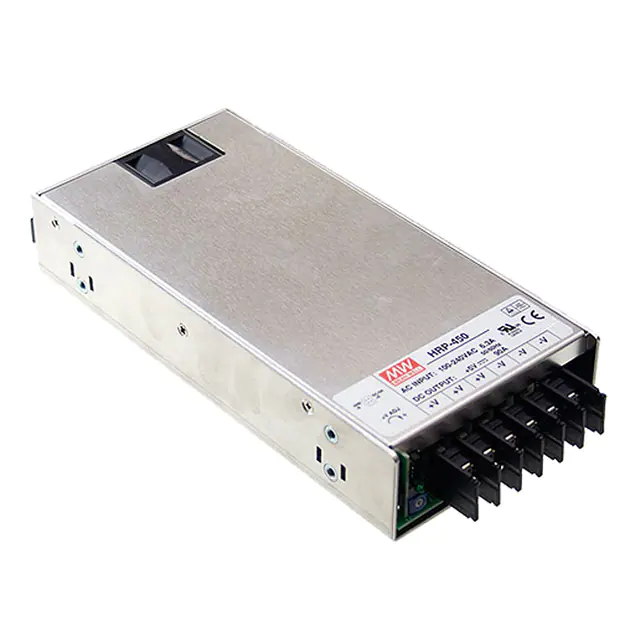

HRP-450-7.5AC/DC CONVERTER 7.5V 450W |
14 | - |
|
数据表 |
HRP-450 (450W) | Box | Active | Enclosed | 1 | 7.5V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 60 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
HRP-450-3.3AC/DC CONVERTER 3.3V 297W |
12 | - |
|
数据表 |
HRP-450 (450W) | Box | Active | Enclosed | 1 | 3.3V | - | - | 297W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 90 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) | ||
|
LCM300W-T-4AC/DC CONVERTER 48V 310W |
10 | - |
|
数据表 |
LCM300 (310W) | Bulk | Active | Front End | 1 | 48V | - | - | 310W | - | - | 90 ~ 264 VAC | - | 6.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) |
