交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

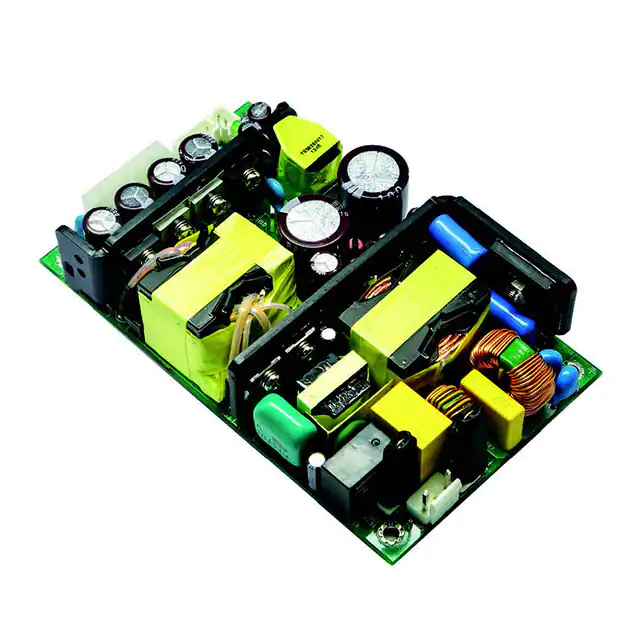

CSS280-54AC/DC CONVERTER 54V 280W |
3 | - |
|
数据表 |
CSS280 (280W) | Bulk | Active | Open Frame | 1 | 54V | - | - | 280W | - | - | 90 ~ 264 VAC | - | 3.88 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | ||
|
ZWQ80-5225/LAC/DC CONVERTER 5V +/-12V 5V 80W |
3 | - |
|
数据表 |
ZWQ (80W) | Bulk | Active | Open Frame | 4 | 5V | 12V | -12V | 80W | 5V | - | 85 ~ 265 VAC | - | 8 A | - | 2 A | ITE (Commercial) | - | 2 A | 7 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) | ||
|
ZWQ80-5223/LAC/DC CNVRTR 5V +/-12V 3.3V 80W |
2 | - |
|
数据表 |
ZWQ (80W) | Bulk | Active | Open Frame | 4 | 5V | 12V | -12V | 80W | 3.3V | - | 85 ~ 265 VAC | - | 8 A | - | 2 A | ITE (Commercial) | - | 2 A | 7 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) | ||
|
TML 100-148CAC/DC CONVERTER 48V 101W |
8 | - |
|
数据表 |
TML 100C (85-100W) | Box | Active | Enclosed | 1 | 48V | - | - | 101W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 5.60" L x 2.48" W x 1.46" H (142.2mm x 63.0mm x 37.1mm) | ||
|
SE-1000-9AC/DC CONVERTER 9V 900W |
2 | - |
|
数据表 |
SE-1000 (1000W) | Box | Active | Enclosed | 1 | 9V | - | - | 900W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | - | 100 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 10.94" L x 5.00" W x 2.50" H (278.0mm x 127.0mm x 63.5mm) | ||
|
VGS-500B-48AC-DC, 500 W, 48 VDC, SINGLE OUT |
12 | - |
|
数据表 |
VGS-500B (500W) | Box | Active | Enclosed | 1 | 48V | - | - | 500W | - | - | 80 ~ 264 VAC | - | 10.42 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) | ||
|
VGS-500B-12AC-DC, 500 W, 12 VDC, SINGLE OUT |
7 | - |
|
数据表 |
VGS-500B (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 500W | - | - | 80 ~ 264 VAC | - | 41.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) | ||
|
VGS-500B-24AC-DC, 500 W, 24 VDC, SINGLE OUT |
7 | - |
|
数据表 |
VGS-500B (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 500W | - | - | 80 ~ 264 VAC | - | 20.83 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) | ||
|
VS150E-12AC/DC CONVERTER 6X12V 150W |
5 | - |
|
数据表 |
VS-E (150W) | Box | Active | Open Frame | 6 | 12V | 12V | 12V | 150W | 12V | 12V | 85 ~ 132 VAC, 110 ~ 175 VDC | 12V | 12.5 A | 12.5 A | 12.5 A | ITE (Commercial) | 12.5 A | 12.5 A | 12.5 A | 2 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.30" L x 2.95" W x 1.34" H (160.0mm x 75.0mm x 34.0mm) | ||
|
LCM300L-T-2AC/DC CONVERTER 12V 310W |
9 | - |
|
数据表 |
LCM300 (310W) | Bulk | Active | Front End | 1 | 12V | - | - | 310W | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) | ||
|
LCM300Q-T-2AC/DC CONVERTER 24V 310W |
9 | - |
|
数据表 |
LCM300 (310W) | Bulk | Active | Front End | 1 | 24V | - | - | 310W | - | - | 90 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) | ||
|
|
MU425S24EAC/DC CONVERTER 24V 300W |
12 | - |
|
数据表 |
MU425S (425W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 300W (425W Forced Air) | - | - | 90 ~ 264 VAC | - | 11.9 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.20" L x 3.30" W x 1.62" H (157.4mm x 83.8mm x 41.1mm) | ||
|

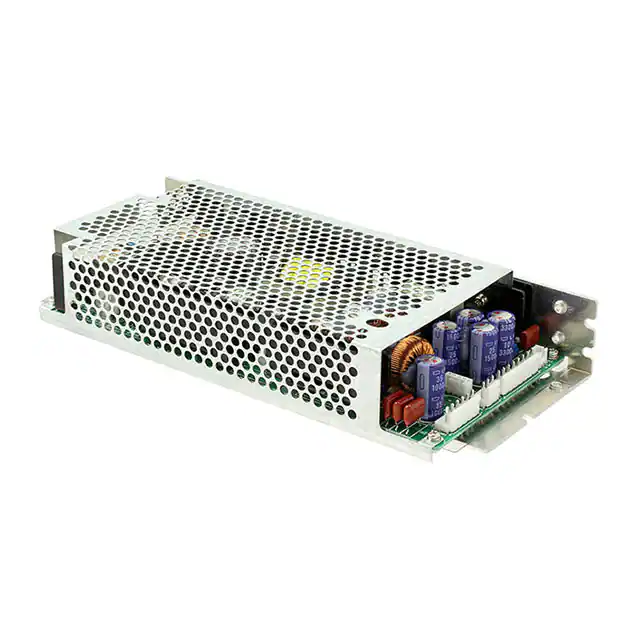

ZWQ80-5225/AAC/DC CONVERTER 5V +/-12V 5V 80W |
2 | - |
|
数据表 |
ZWQ (80W) | Bulk | Active | Enclosed | 4 | 5V | 12V | -12V | 80W | 5V | - | 85 ~ 265 VAC | - | 8 A | - | 2 A | ITE (Commercial) | - | 2 A | 7 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) | ||
|
EPG300-1348POWER SUPPLY EPG300-1348 |
24 | - |
|
数据表 |
EPG300 (300W) | Box | Active | Open Frame | 1 | 48V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 6.25 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) | ||
|
CUS600M-36/ADJAC/DC CONVERTER 6X36V 400W |
12 | - |
|
数据表 |
CUS600M (600W) | Box | Active | Open Frame | 6 | 36V | 36V | 36V | 400W (601W Forced Air) | 36V | 36V | 85 ~ 265 VAC | 36V | 16.7 A | 16.7 A | 16.7 A | ITE (Commercial), Medical | 16.7 A | 16.7 A | 16.7 A | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) | ||
|
CUS600M-12/ADJAC/DC CONVERTER 6X12V 401W |
5 | - |
|
数据表 |
CUS600M (600W) | Box | Active | Open Frame | 6 | 12V | 12V | 12V | 401W (600W Forced Air) | 12V | 12V | 85 ~ 265 VAC | 12V | 50 A | 50 A | 50 A | ITE (Commercial), Medical | 50 A | 50 A | 50 A | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) | ||
|
|
MAP40-3105GAC/DC CONVERTER 5V 12V -5V 40W |
4 | - |
|
数据表 |
MAP40 (40W) | Bulk | Active | Open Frame | 3 | 5V | 12V | -5V | 40W | - | - | 90 ~ 264 VAC | - | 3 A | - | 2 A | ITE (Commercial) | - | 500 mA | - | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
TCI 500-148-T502 WATT ENCASED AC/DC POWER SUP |
9 | - |
|
数据表 |
TCI 500 (500W) | Box | Active | Enclosed | 1 | 48V | - | - | 500W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 10.41 A | - | - | ITE (Commercial) | - | - | - | 4.25 kV | -30°C ~ 70°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 2.45" H (130.0mm x 83.0mm x 62.3mm) | ||
|
TCI 500-112-T500 WATT ENCASED AC/DC POWER SUP |
8 | - |
|
数据表 |
TCI 500 (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 498W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 41.5 A | - | - | ITE (Commercial) | - | - | - | 4.25 kV | -30°C ~ 70°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 2.45" H (130.0mm x 83.0mm x 62.3mm) | ||
|
TCI 500-124-T501 WATT ENCASED AC/DC POWER SUP |
4 | - |
|
数据表 |
TCI 500 (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 499W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 20.8 A | - | - | ITE (Commercial) | - | - | - | 4.25 kV | -30°C ~ 70°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 2.45" H (130.0mm x 83.0mm x 62.3mm) |
