交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS250M-48AC/DC CONVERTER 48V 250W |
7 | - |
|
数据表 |
CUS250M (250W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 250W | - | - | 80 ~ 264 VAC | - | 5.2 A | - | - | Household Appliances, ITE (Commercial), Laboratory, Medical | - | - | - | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.56" H (101.6mm x 50.8mm x 39.5mm) | ||
|
|

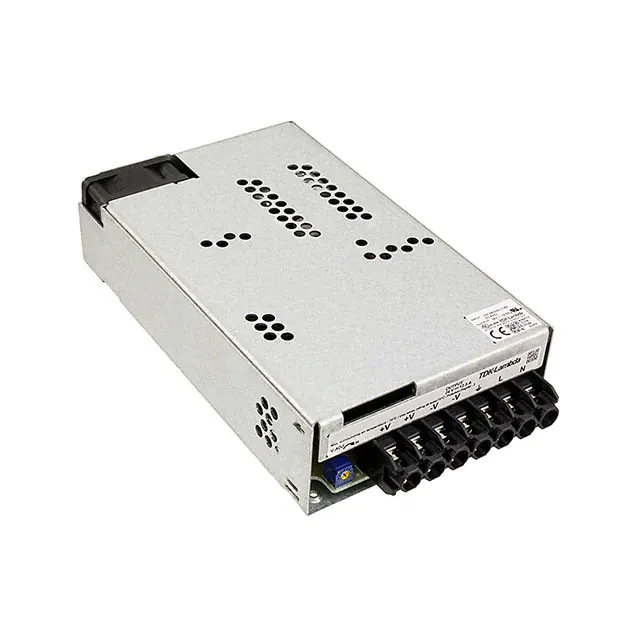

RWS300B-15/CO2AC/DC CONVERTER 15V 300W |
3 | - |
|
数据表 |
RWS-B (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 15V | - | - | 300W | - | - | 85 ~ 265 VAC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.70" L x 4.02" W x 1.61" H (170.0mm x 102.0mm x 41.0mm) | ||
|
|
RWS300B-5/CO2AC/DC CONVERTER 5V 300W |
3 | - |
|
数据表 |
RWS-B (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 5V | - | - | 300W | - | - | 85 ~ 265 VAC | - | 50 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.70" L x 4.02" W x 1.61" H (170.0mm x 102.0mm x 41.0mm) | ||
|
VMS-450B-48AC/DC CONVERTER 48V 451W |
20 | - |
|
数据表 |
VMS-450B (450W) | Box | Active | Open Frame | 1 | 48V | - | - | 451W | - | - | 100 ~ 240 VAC | - | 9.4 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) | ||
|
TOP 200-115AC/DC CONVERTER 15V 195W |
10 | - |
|
数据表 |
TOP 200 (200W) | Box | Active | Open Frame | 1 | 15V | - | - | 195W | - | - | 85 ~ 264 VAC | - | 13 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
LFM420S120CAC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 12V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 35 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S240CAC-DC SWITCHING POWER MODULE,90- |
2 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 24V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 17.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S300CAC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 30V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S480CAC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 48V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.75 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S540CAC-DC SWITCHING POWER MODULE,90- |
3 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 54V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.78 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S280C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 28V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S360C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 36V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 11.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S360CAC-DC SWITCHING POWER MODULE,90- |
1 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 36V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 11.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S150C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 15V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 28 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S240C-C0AC-DC SWITCHING POWER MODULE,90- |
4 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 24V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 17.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S150CAC-DC SWITCHING POWER MODULE,90- |
0 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 15V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 28 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S540C-C0AC-DC SWITCHING POWER MODULE,90- |
2 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 54V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.78 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
LFM420S120C-C0AC-DC SWITCHING POWER MODULE,90- |
2 | - |
|
数据表 |
LFM420S (420W) | Tray | Active | Enclosed | 1 | 12V | - | - | 280W (420W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 35 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.25 kV | -40°C ~ 80°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.09" L x 3.29" W x 1.00" H (129.3mm x 83.6mm x 25.4mm) | ||
|
ZWS150BP-36AC/DC CONVERTER 36V 150W |
6 | - |
|
数据表 |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 36V | - | - | 150W | - | - | 85 ~ 265 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | ||
|
NPB-450-12NFCO/P +12V25A |
8 | - |
|
数据表 |
NPB-450 (450W) | Box | Active | Enclosed | 1 | 12V | - | - | 300W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 25 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 8.07" L x 5.31" W x 2.17" H (205.0mm x 135.0mm x 55.0mm) |
