单个二极管
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 电压 - 直流反向 (Vr)（最大值） | 电压 - 正向 (Vf)（最大值）@ If | 速度 | 反向恢复时间 (trr) | 电流 - 反向漏电 @ Vr | 电容 @ Vr, F | 电流 - 平均整流（Io） | 等级 | 认证 | 安装类型 | 供应商设备封装 | 工作温度 - 结点 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCG10P1200HRDIODE SCHOTT 1.2KV 12.5A ISO247 IXYS |
3,586 | - |
|
数据表 |
- | TO-247-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 1.8 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 1200 V | 755pF @ 0V, 1MHz | 12.5A | - | - | Through Hole | ISO247 | -40°C ~ 150°C |
|
|
DCG17P1200HRDIODE SCHOTTKY 1.2KV 18A ISO247 IXYS |
6,538 | - |
|
数据表 |
- | TO-247-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 1.8 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 1200 V | 1500pF @ 0V, 1MHz | 18A | - | - | Through Hole | ISO247 | -40°C ~ 150°C |
|
|
DCG20C1200HRDIODE SIC 1.2KV 12.5A ISO247 IXYS |
3,933 | - |
|
数据表 |
- | TO-247-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 1.8 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 1200 V | 755pF @ 0V, 1MHz | 12.5A | - | - | Through Hole | ISO247 | -40°C ~ 150°C |
|
|
M0358WC120DIODE GEN PURP 1.2KV 358A W1 IXYS |
5,792 | - |
|
数据表 |
- | DO-200AB, A-PUK | Box | Active | Standard | 1200 V | 2.1 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | 1.4 µs | 20 mA @ 1200 V | - | 358A | - | - | Clamp On | W1 | -40°C ~ 125°C |
|
|
W1263YC160DIODE GEN PURP 1.6KV 1263A IXYS |
7,008 | - |
|
数据表 |
- | DO-200AB, B-PUK | Box | Active | Standard | 1600 V | 2.12 V @ 3770 A | Standard Recovery >500ns, > 200mA (Io) | 17 µs | 30 mA @ 1600 V | - | 1263A | - | - | Clamp On | - | -40°C ~ 175°C |
|
|
W1263YC200DIODE GEN PURP 2KV 1263A W2 IXYS |
5,613 | - |
|
数据表 |
- | DO-200AB, A-PUK | Box | Active | Standard | 2000 V | 2.12 V @ 3770 A | Standard Recovery >500ns, > 200mA (Io) | 17 µs | 30 mA @ 2000 V | - | 1263A | - | - | Clamp On | W2 | -40°C ~ 175°C |
|
|
M0358WC180DIODE GEN PURP 1.8KV 358A W1 IXYS |
7,149 | - |
|
数据表 |
- | DO-200AB, A-PUK | Box | Active | Standard | 1800 V | 2.1 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | 1.4 µs | 20 mA @ 1800 V | - | 358A | - | - | Clamp On | W1 | -40°C ~ 125°C |
|

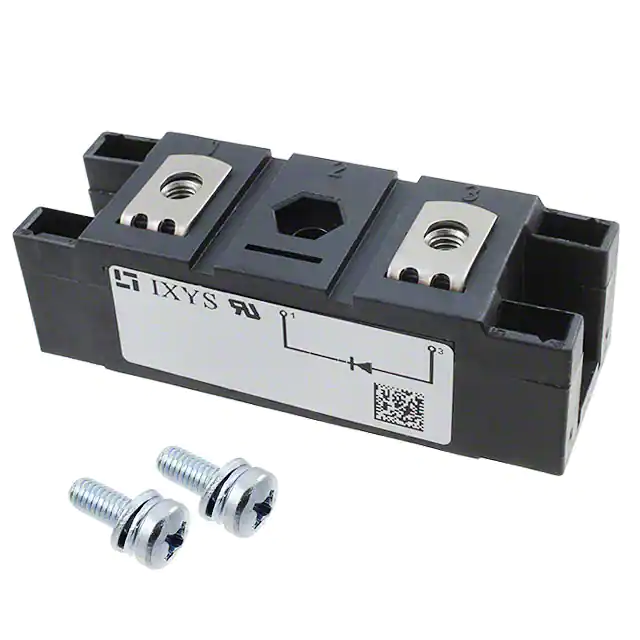

ME0500-06DADIODE GEN PURP 600V 514A Y4-M6 IXYS |
9,929 | - |
|
数据表 |
- | Y4-M6 | Bulk | Obsolete | Standard | 600 V | 1.36 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 24 mA @ 600 V | - | 514A | - | - | Chassis Mount | Y4-M6 | - |
|
|
M0437WC080DIODE GEN PURP 80V 437A W1 IXYS |
6,882 | - |
|
数据表 |
- | DO-200AB, A-PUK | Box | Active | Standard | 80 V | 1.47 V @ 635 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 80 V | - | 437A | - | - | Clamp On | W1 | -40°C ~ 125°C |
|
|
M0437WC140DIODE GEN PURP 1.4KV 437A W1 IXYS |
8,867 | - |
|
数据表 |
- | DO-200AB, A-PUK | Box | Active | Standard | 1400 V | 1.47 V @ 635 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | - | 437A | - | - | Clamp On | W1 | -40°C ~ 125°C |
