单个 IGBTs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 电压 - 集电极发射极击穿（最大值） | 电流 - 集电极脉冲 (Icm) | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 功率 - 最大值 | 安装类型 | 开关能量 | 输入类型 | 电流 - 集电极 (Ic)（最大值） | 栅极电荷 | 导通/关断时间 (Td) @ 25°C | 认证 | 测试条件 | 供应商设备封装 | 等级 | 反向恢复时间 (trr) | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

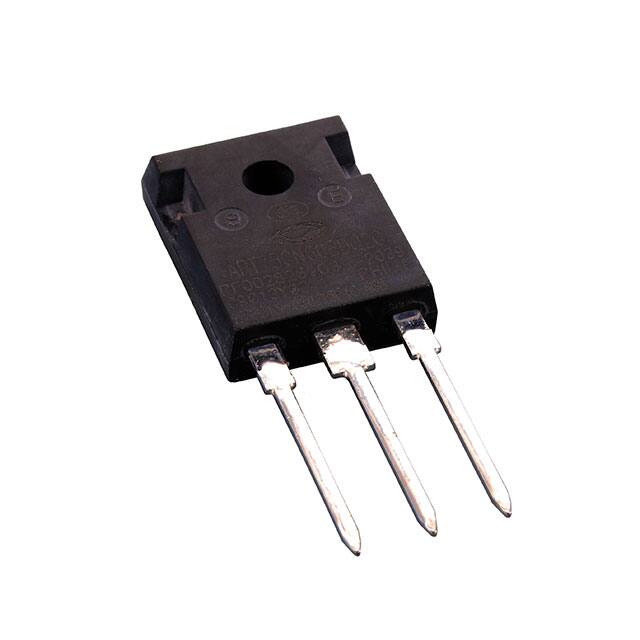

APT75GN60BDQ2GIGBT TRENCH FS 600V 155A TO247-3 Microchip Technology |
97 | - |
|
数据表 |
- | TO-247-3 | Tube | Active | Trench Field Stop | 600 V | 225 A | 1.85V @ 15V, 75A | 536 W | Through Hole | 2.5mJ (on), 2.14mJ (off) | Standard | 155 A | 485 nC | 47ns/385ns | - | 400V, 75A, 1Ohm, 15V | TO-247-3 | - | 25 ns | -55°C ~ 175°C (TJ) |
|
APT35GN120L2DQ2GIGBT NPT FIELD STOP 1200V 94A Microchip Technology |
60 | - |
|
数据表 |
- | TO-264-3, TO-264AA | Tube | Active | NPT, Trench Field Stop | 1200 V | 105 A | 2.1V @ 15V, 35A | 379 W | Through Hole | 2.315mJ (off) | Standard | 94 A | 220 nC | 24ns/300ns | - | 800V, 35A, 2.2Ohm, 15V | - | - | - | -55°C ~ 150°C (TJ) |
|
APT80GA90BIGBT PT 900V 145A TO247 Microchip Technology |
17 | - |
|
数据表 |
- | TO-247-3 | Tube | Active | PT | 900 V | 239 A | 3.1V @ 15V, 47A | 625 W | Through Hole | 1652µJ (on), 1389µJ (off) | Standard | 145 A | 200 nC | 18ns/149ns | - | 600V, 47A, 4.7Ohm, 15V | TO-247 [B] | - | - | -55°C ~ 150°C (TJ) |
|
APT45GP120B2DQ2GIGBT PT 1200V 113A Microchip Technology |
20 | - |
|
数据表 |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 170 A | 3.9V @ 15V, 45A | 625 W | Through Hole | 900µJ (on), 905µJ (off) | Standard | 113 A | 185 nC | 18ns/100ns | - | 600V, 45A, 5Ohm, 15V | - | - | - | -55°C ~ 150°C (TJ) |
|
|
APT75GP120B2GIGBT PT 1200V 100A Microchip Technology |
31 | - |
|
数据表 |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 300 A | 3.9V @ 15V, 75A | 1042 W | Through Hole | 1620µJ (on), 2500µJ (off) | Standard | 100 A | 320 nC | 20ns/163ns | - | 600V, 75A, 5Ohm, 15V | - | - | - | -55°C ~ 150°C (TJ) |
|
|
APT43GA90BIGBT PT 900V 78A TO247 Microchip Technology |
81 | - |
|
数据表 |
POWER MOS 8™ | TO-247-3 | Tube | Active | PT | 900 V | 129 A | 3.1V @ 15V, 25A | 337 W | Through Hole | 875µJ (on), 425µJ (off) | Standard | 78 A | 116 nC | 12ns/82ns | - | 600V, 25A, 4.7Ohm, 15V | TO-247 [B] | - | - | -55°C ~ 150°C (TJ) |
|
|
APT25GT120BRDQ2GIGBT NPT 1200V 54A TO247 Microchip Technology |
88 | - |
|
数据表 |
Thunderbolt IGBT® | TO-247-3 | Tube | Active | NPT | 1200 V | 75 A | 3.7V @ 15V, 25A | 347 W | Through Hole | 930µJ (on), 720µJ (off) | Standard | 54 A | 170 nC | 14ns/150ns | - | 800V, 25A, 5Ohm, 15V | TO-247 [B] | - | - | -55°C ~ 150°C (TJ) |
|
|
APT95GR65B2IGBT NPT 650V 208A TMAX Microchip Technology |
58 | - |
|
数据表 |
- | TO-247-3 | Tube | Active | NPT | 650 V | 400 A | 2.4V @ 15V, 95A | 892 W | Through Hole | 3.12mJ (on), 2.55mJ (off) | Standard | 208 A | 420 nC | 29ns/226ns | - | 433V, 95A, 4.3Ohm, 15V | T-MAX™ [B2] | - | - | -55°C ~ 150°C (TJ) |
|
|
APT25GP120BGIGBT PT 1200V 69A TO247 Microchip Technology |
18 | - |
|
数据表 |
POWER MOS 7® | TO-247-3 | Tube | Active | PT | 1200 V | 90 A | 3.9V @ 15V, 25A | 417 W | Through Hole | 500µJ (on), 438µJ (off) | Standard | 69 A | 110 nC | 12ns/70ns | - | 600V, 25A, 5Ohm, 15V | TO-247 [B] | - | - | -55°C ~ 150°C (TJ) |
|
|
APT85GR120B2IGBT NPT 1200V 170A TMAX Microchip Technology |
28 | - |
|
数据表 |
- | TO-247-3 | Tube | Active | NPT | 1200 V | 340 A | 3.2V @ 15V, 85A | 962 W | Through Hole | 6mJ (on), 3.8mJ (off) | Standard | 170 A | 660 nC | 43ns/300ns | - | 600V, 85A, 4.3Ohm, 15V | T-MAX™ | - | - | -55°C ~ 150°C (TJ) |
