IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT40GP90JDQ2IGBT MODULE 900V 64A 284W ISOTOP Microchip Technology |
6,874 | - |
|
数据表 |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 64 A | 284 W | 3.9V @ 15V, 40A | 350 µA | 3.3 nF @ 25 V | 900 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT45GP120JIGBT MOD 1200V 75A 329W ISOTOP Microchip Technology |
6,995 | - |
|
数据表 |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 75 A | 329 W | 3.9V @ 15V, 45A | 500 µA | 3.94 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 Microchip Technology |
4,353 | - |
|
数据表 |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 Microchip Technology |
2,838 | - |
|
数据表 |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | 600 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
APTGF100DA120TGIGBT MODULE 1200V 135A 568W SP4 Microchip Technology |
9,863 | - |
|
数据表 |
- | SP4 | Bulk | Obsolete | NPT | Single | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTGF180SK60TGIGBT MODULE 600V 220A 833W SP4 Microchip Technology |
7,627 | - |
|
数据表 |
- | SP4 | Bulk | Obsolete | NPT | Single | 220 A | 833 W | 2.5V @ 15V, 180A | 300 µA | 8.6 nF @ 25 V | 600 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGF25X120T3GIGBT MODULE 1200V 40A 208W SP3 Microchip Technology |
8,479 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APT75GT120JRDQ3IGBT MOD 1200V 97A 480W ISOTOP Microchip Technology |
7,858 | - |
|
数据表 |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 97 A | 480 W | 3.7V @ 15V, 75A | 200 µA | 5.1 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT200GT60JRIGBT MOD 600V 195A 500W SOT227 Microchip Technology |
9,091 | - |
|
数据表 |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tray | Obsolete | NPT | Single | 195 A | 500 W | 2.5V @ 15V, 200A | 25 µA | 8.65 nF @ 25 V | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

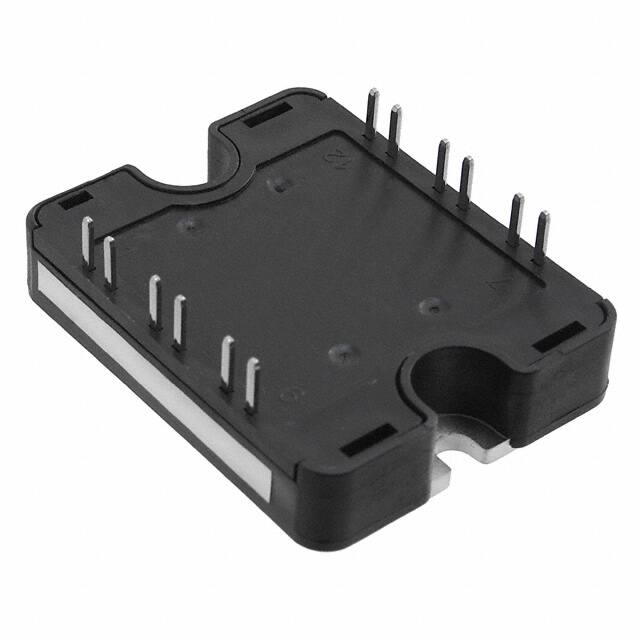

APTGT75DA60T1GIGBT MODULE 600V 100A 250W SP1 Microchip Technology |
7,765 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
