IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT47GA60JD40IGBT 600V 87A 283W SOT-227 Microchip Technology |
5,649 | - |
|
数据表 |
POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 87 A | 283 W | 2.5V @ 15V, 47A | 275 µA | 6.32 nF @ 25 V | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APT50GP60JIGBT MOD 600V 100A 329W ISOTOP Microchip Technology |
2,965 | - |
|
数据表 |
POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 100 A | 329 W | 2.7V @ 15V, 50A | 500 µA | 5.7 nF @ 25 V | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF100DA120T1GIGBT MODULE 1200V 130A 735W SP1 Microchip Technology |
8,493 | - |
|
数据表 |
- | SP1 | Bulk | Obsolete | NPT | Single | 130 A | 735 W | 3.7V @ 15V, 100A | 250 µA | 6.5 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT50GP60JDQ2IGBT MOD 600V 100A 329W ISOTOP Microchip Technology |
4,833 | - |
|
数据表 |
POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 100 A | 329 W | 2.7V @ 15V, 50A | 525 µA | 5.7 nF @ 25 V | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT150GN60JIGBT MOD 600V 220A 536W ISOTOP Microchip Technology |
4,688 | - |
|
数据表 |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 220 A | 536 W | 1.85V @ 15V, 150A | 25 µA | 9.2 nF @ 25 V | 600 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF50H60T1GIGBT MODULE 600V 65A 250W SP1 Microchip Technology |
6,942 | - |
|
数据表 |
- | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | 600 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT75GT120JU3IGBT MOD 1200V 100A 416W SOT227 Microchip Technology |
6,054 | - |
|
数据表 |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

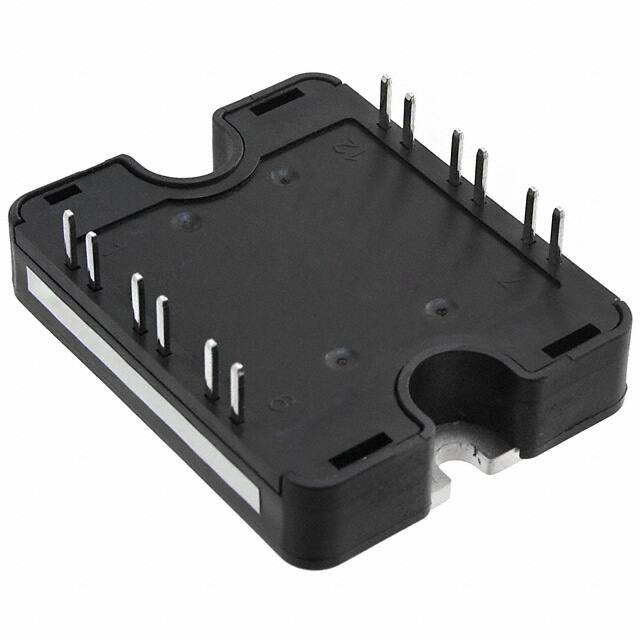

APTGF25H120T1GIGBT MODULE 1200V 40A 208W SP1 Microchip Technology |
6,095 | - |
|
数据表 |
- | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP1 |
|
APTGF50H60T3GIGBT MODULE 600V 65A 250W SP3 Microchip Technology |
8,476 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | 600 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGF50DH120T3GIGBT MODULE 1200V 70A 312W SP3 Microchip Technology |
3,077 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP3 |
