IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

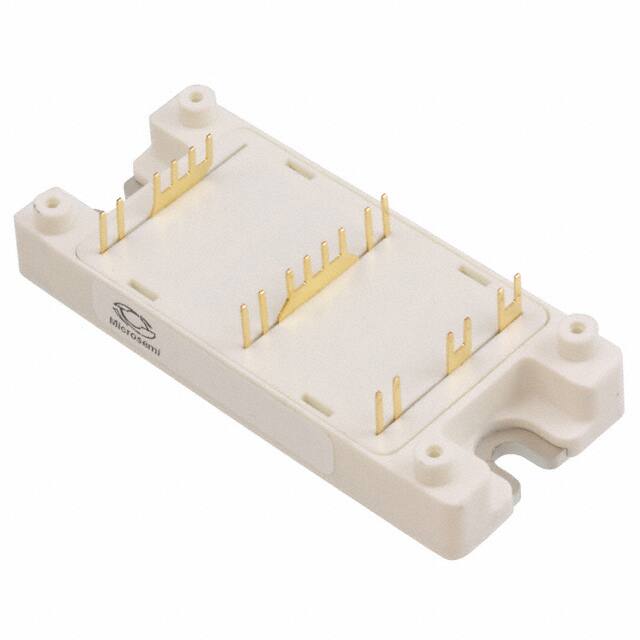

APTGF100A120TGIGBT MODULE 1200V 135A 568W SP4 Microchip Technology |
5,519 | - |
|
数据表 |
- | SP4 | Bulk | Obsolete | NPT | Half Bridge | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APT150GT120JRIGBT MOD 1200V 170A 830W ISOTOP Microchip Technology |
7,695 | - |
|
数据表 |
Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 170 A | 830 W | 3.7V @ 15V, 150A | 150 µA | 9.3 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT100A60T1GIGBT MODULE 600V 150A 340W SP1 Microchip Technology |
9,200 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
APTGT100DA120T1GIGBT MODULE 1200V 140A 480W SP1 Microchip Technology |
6,485 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|

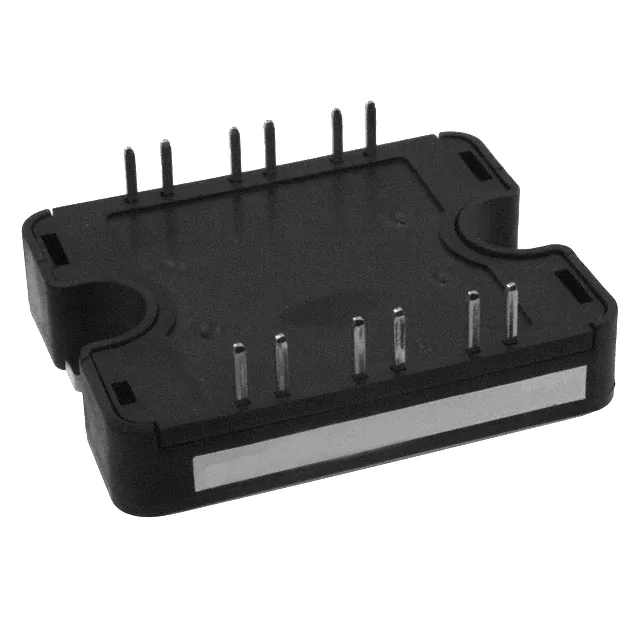

APTGT50SK170T1GIGBT MODULE 1700V 75A 312W SP1 Microchip Technology |
8,812 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT50DDA60T3GIGBT MODULE 600V 80A 176W SP3 Microchip Technology |
4,238 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ30H65T3GIGBT MODULE 650V 40A 95W Microchip Technology |
3,130 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 40 A | 95 W | 2.3V @ 15V, 30A | 50 µA | 1.9 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
APTGT50A120T1GIGBT MODULE 1200V 75A 277W SP1 Microchip Technology |
3,331 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|

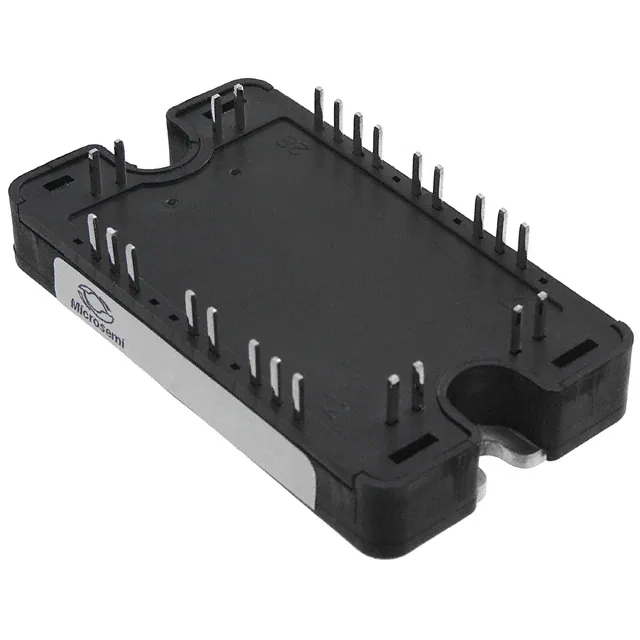

APTGF150A120T3AGIGBT MODULE 1200V 210A 1041W SP3 Microchip Technology |
3,794 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Half Bridge | 210 A | 1041 W | 3.7V @ 15V, 150A | 250 µA | 9.3 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGT50H60T1GIGBT MODULE 600V 80A 176W SP1 Microchip Technology |
5,633 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
