IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT50GF120JRDIGBT NPT COMBI 1200V 50A ISOTOP Microchip Technology |
8,072 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Active | - | Single | 75 A | 460 W | 3.4V @ 15V, 50A | 750 µA | 3.45 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 (ISOTOP®) |
|

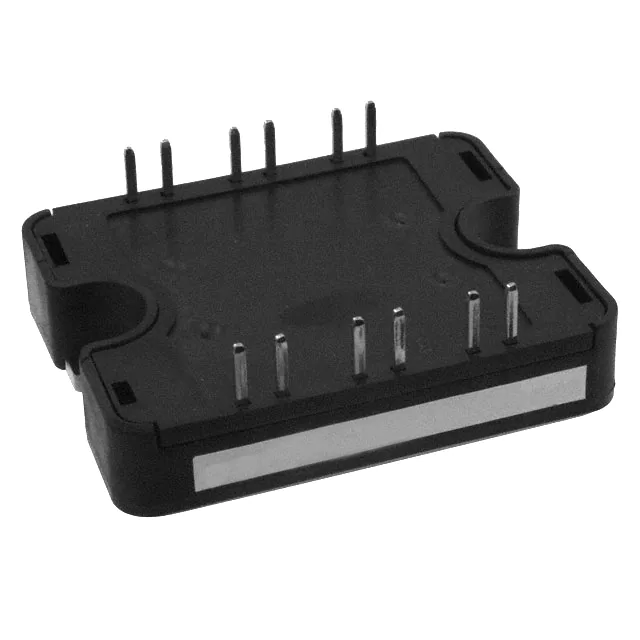

APTGT100DA60T1GIGBT MODULE 600V 150A 340W SP1 Microchip Technology |
4,003 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APT100GT120JRIGBT MOD 1200V 123A 570W ISOTOP Microchip Technology |
8,804 | - |
|
数据表 |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 123 A | 570 W | 3.7V @ 15V, 100A | 100 µA | 6.7 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

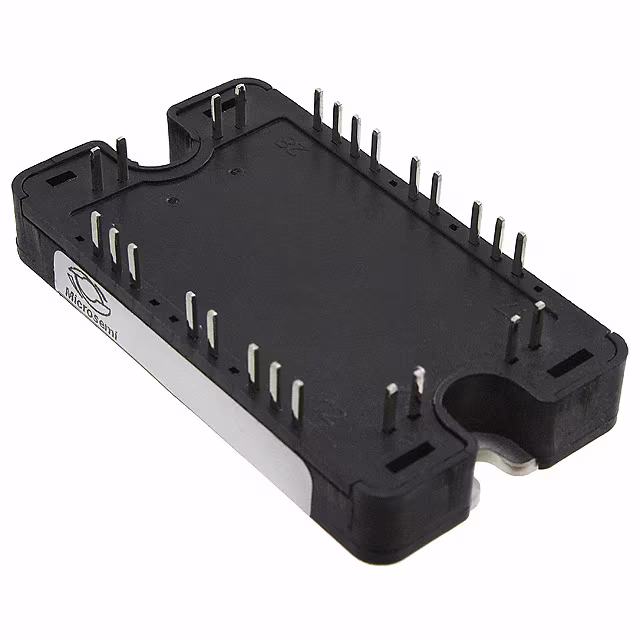

APTGF90H60T3GIGBT MODULE 600V 120A 416W SP3 Microchip Technology |
2,054 | - |
|
数据表 |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 120 A | 416 W | 2.45V @ 15V, 100A | 250 µA | 4.4 nF @ 25 V | 600 V | Standard | Yes | - | Chassis Mount | SP3 |
|
APTGT20H60T1GIGBT MODULE 600V 32A 62W SP1 Microchip Technology |
3,996 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APT100GN120JDQ4IGBT MOD 1200V 153A 446W ISOTOP Microchip Technology |
8,056 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 153 A | 446 W | 2.1V @ 15V, 100A | 200 µA | 6.5 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APTGL90DA120T1GIGBT MODULE 1200V 110A 385W SP1 Microchip Technology |
4,895 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT50DH60T1GIGBT MODULE 600V 80A 176W SP1 Microchip Technology |
3,397 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT20TL601GIGBT MODULE 600V 32A 62W SP1 Microchip Technology |
6,134 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 pF @ 25 V | 600 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|

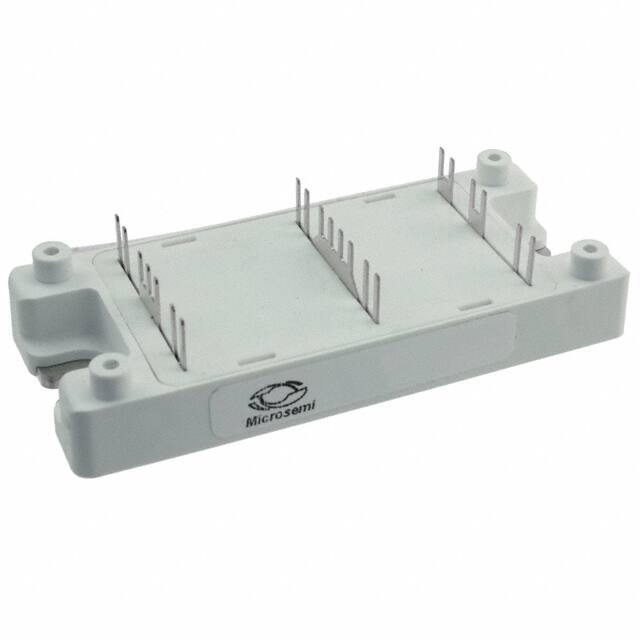

APTGF75DSK120TGIGBT MODULE 1200V 100A 500W SP4 Microchip Technology |
6,590 | - |
|
数据表 |
- | SP4 | Bulk | Obsolete | NPT | Dual, Common Source | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP4 |
