固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4028-101YFIXED IND 100UH 510MA 600MOHM SM |
77,149 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 510 mA | 300mA | - | Shielded | 600mOhm Max | 100 µH | 8.78 @ 796kHz | 9MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRR4028-221YFIXED IND 220UH 340MA 1.25OHM SM |
59,877 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 340 mA | 200mA | - | Shielded | 1.25Ohm Max | 220 µH | 11.3 @ 796kHz | 5MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRR4028-330YFIXED IND 33UH 820MA 230MOHM SMD |
57,741 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 820 mA | 580mA | - | Shielded | 230mOhm Max | 33 µH | 9.7 @ 2.52MHz | 16MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CSBX1275-270MFIX IND 27UH 7A 26.5MOHM SMD |
300 | - |
|
数据表 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 7 A | 11.4A | - | Shielded | 26.5mOhm Max | 27 µH | - | - | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | - | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
CSBL1275-5R6MSMD HIGH CURRENT POWER INDUCTOR |
298 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 17 A | 22A | - | Shielded | 5.29mOhm Max | 5.6 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
CSBX1275-5R6MSMD HIGH CURRENT POWER INDUCTOR |
289 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 17 A | 27A | - | Shielded | 5.3mOhm Max | 5.6 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSBL1275-100MSMD HIGH CURRENT POWER INDUCTOR |
289 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 11 A | 16A | - | Shielded | 10.1mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|

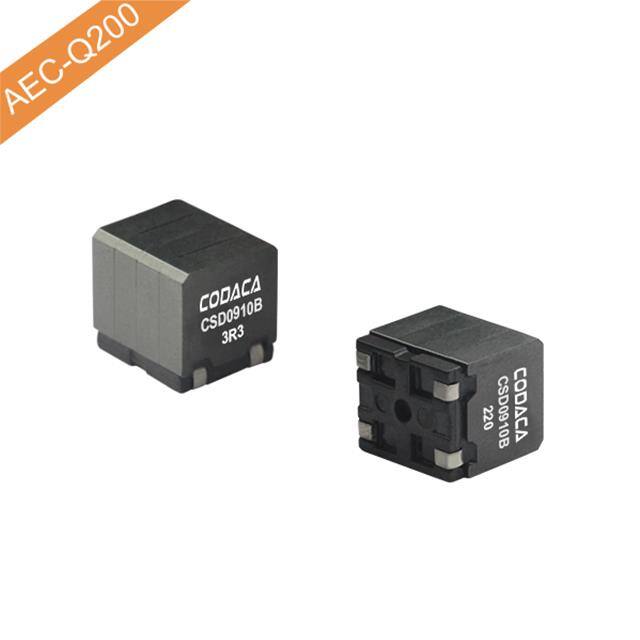

CSD0910B-100MCLASS D INDUCTOR FOR DIGITAL AMP |
283 | - |
|
数据表 |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 5 A | 5.6A | 4-SMD | Shielded | 18.7mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
|
|
CSBL1275-3R3MSMD HIGH CURRENT POWER INDUCTOR |
282 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 22 A | 30A | - | Shielded | 3.1mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSBX1275-330MSMD HIGH CURRENT POWER INDUCTOR |
279 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 6 A | 10.6A | - | Shielded | 32.5mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.287" (7.30mm) |
|
|
CSBX1275-1R5MSMD HIGH CURRENT POWER INDUCTOR |
260 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 28 A | 54A | - | Shielded | 1.61mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSBL1275-330MSMD HIGH CURRENT POWER INDUCTOR |
253 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 6 A | 8A | - | Shielded | 32.5mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.287" (7.30mm) |
|
|
SRR4028-3R3YFIXED IND 3.3UH 2.15A 35MOHM SMD |
46,093 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.15 A | 1.65A | - | Shielded | 35mOhm Max | 3.3 µH | 7.72 @ 7.96MHz | 76MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
CSBX1275-150MSMD HIGH CURRENT POWER INDUCTOR |
227 | - |
|
数据表 |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 9.3 A | 16A | - | Shielded | 13.8mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSBL1275-150MSMD HIGH CURRENT POWER INDUCTOR |
218 | - |
|
数据表 |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 9.3 A | 11A | - | Shielded | 13.8mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
HC8-1R9-RFIXED IND 1.9UH 12.4A 7.7MOHM SM |
0 | - |
|
数据表 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 12.4 A | 20.9A | - | Unshielded | 7.7mOhm Max | 1.9 µH | - | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRR4028-561YFIXED IND 560UH 220MA 3 OHM SMD |
37,517 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 220 mA | 150mA | - | Shielded | 3Ohm Max | 560 µH | 16.46 @ 796kHz | 3MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
.jpg)
|
AIRD-06-471KFIXED IND 470UH 1.6A 355 MOHM TH |
3,998 | - |
|
数据表 |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | 4.5A | - | Unshielded | 355mOhm Max | 470 µH | 15 @ 50kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|
SRU5018-100YFIXED IND 10UH 1.25A 65 MOHM SMD |
31,772 | - |
|
数据表 |
SRU5018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.25 A | 1.05A | - | Shielded | 65mOhm | 10 µH | 12 @ 2.52MHz | 50MHz | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

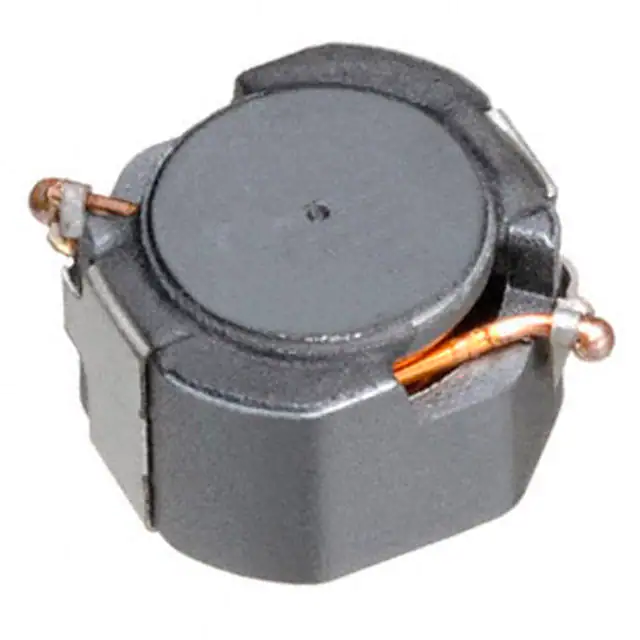

LGJ7045TC-221M-HFIXED IND 220UH 520MA 660MOHM SM |
975 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 520 mA | 620mA | - | Shielded | 660mOhm | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
