固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR6038-6R2YFIXED IND 6.2UH 2.5A 27 MOHM SMD |
3,876 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 2.6A | - | Shielded | 27mOhm Max | 6.2 µH | 9 @ 7.96MHz | 42.3MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
0624CDMCCDS-100MCFIXED IND 10UH 3.1A 101MOHM SMD |
3,863 | - |
|
数据表 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.1 A | 5.5A | SMD | Shielded | 101mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
L0603120GGSTRFIXED IND 12NH 300MA 500MOHM SMD |
3,104 | - |
|
数据表 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±2% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 500mOhm Max | 12 nH | 28 @ 450MHz | 3GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
B82144F1106J000FIXED IND 10MH 85MA 42OHM TH |
2,763 | - |
|
数据表 |
B82144F1 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 85 mA | - | - | Unshielded | 42Ohm Max | 10 mH | 50 @ 79.6kHz | 750kHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
CTS3F-8R2J8.2UH AXL MOLDED SHLD INDUCTOR |
268 | - |
|
数据表 |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | ±5% | 250 mA | - | Axial | Shielded | 1.3Ohm Max | 8.2 µH | 50 @ 7.9MHz | 50MHz | Through Hole | - | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|
SRR6028-100YFIXED IND 10UH 2A 65 MOHM SMD |
2,582 | - |
|
数据表 |
SRR6028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2 A | 1.7A | - | Shielded | 65mOhm Max | 10 µH | 11 @ 2.52MHz | 25MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SRR7032-220MFIXED IND 22UH 960MA 135MOHM SMD |
2,345 | - |
|
数据表 |
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 960 mA | 1.05A | - | Shielded | 135mOhm Max | 22 µH | 20 @ 2.52MHz | 29MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.134" (3.40mm) |
|
SH150S-3.00-77FIXED IND 77UH 3A 80 MOHM SMD |
189 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 80mOhm | 77 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.427" (10.85mm) |
|

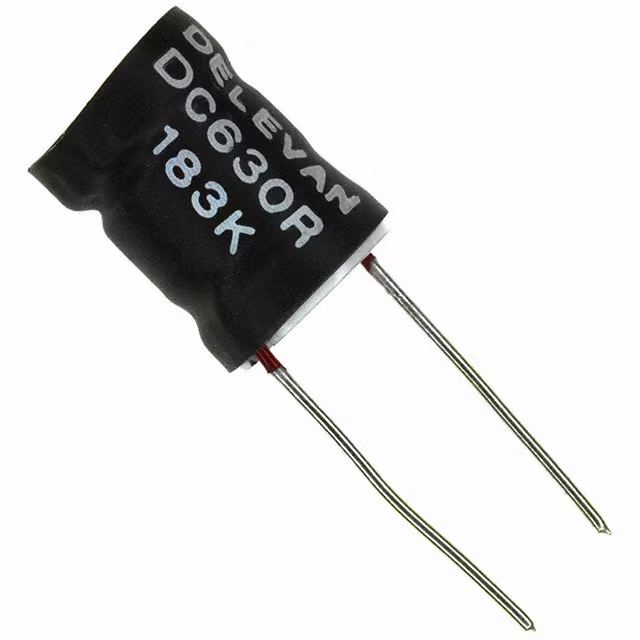

DC630R-183KFIXED IND 18UH 7A 20 MOHM TH |
350 | - |
|
数据表 |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 7 A | 16A | - | Unshielded | 20mOhm Max | 18 µH | - | - | Through Hole | - | 0.630" Dia (16.00mm) | - | -55°C ~ 125°C | 10 kHz | 0.830" (21.08mm) |
|
1110-120K-RCFIXED IND 12UH 9A 11 MOHM TH |
708 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 9 A | - | - | Unshielded | 11mOhm Max | 12 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
CLB1108-2-50TR-RFIXED IND 200NH 0.00028OHM SMD |
500 | - |
|
数据表 |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | - | 25A | - | - | 0.28mOhm | 200 nH | - | - | Surface Mount | - | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 2 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
|

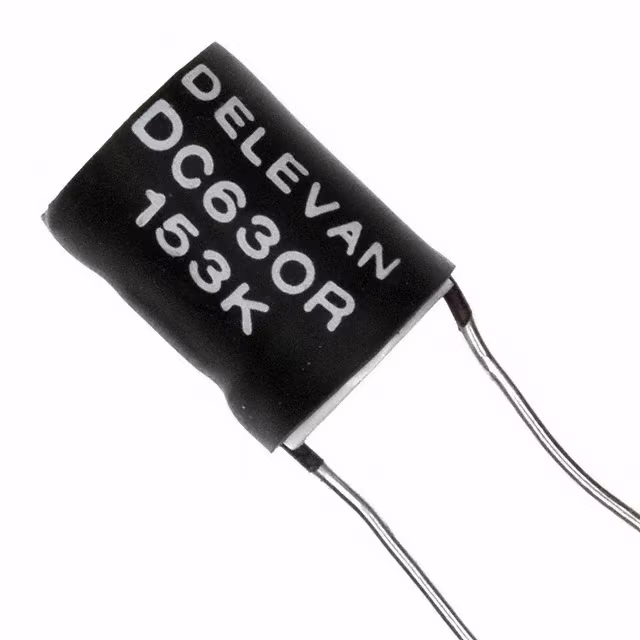

DC630R-153KFIXED IND 15UH 8.09A 15 MOHM TH |
486 | - |
|
数据表 |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 8.09 A | 17.5A | - | Unshielded | 15mOhm Max | 15 µH | - | - | Through Hole | - | 0.630" Dia (16.00mm) | - | -55°C ~ 125°C | 10 kHz | 0.830" (21.08mm) |
|
|
CTS3F-151K150UH AXL MOLDED SHLD INDUCTOR |
195 | - |
|
数据表 |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | ±10% | 140 mA | - | Axial | Shielded | 4.1Ohm Max | 150 µH | 56 @ 790kHz | 8.5MHz | Through Hole | - | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
HCM1A1707-220-RFIXED IND 22UH 8A 23 MOHM SMD |
124 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8 A | 11A | - | Shielded | 23mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
|
CTS3F-180K18UH AXL MOLDED SHLD INDUCTOR |
148 | - |
|
数据表 |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | ±10% | 300 mA | - | Axial | Shielded | 890mOhm Max | 18 µH | 45 @ 2.5MHz | 45MHz | Through Hole | - | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
IHLP6767DZER5R6M11FIXED IND 5.6UH 15A 12.2MOHM SMD |
240 | - |
|
数据表 |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 15 A | 11.5A | - | Shielded | 12.2mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

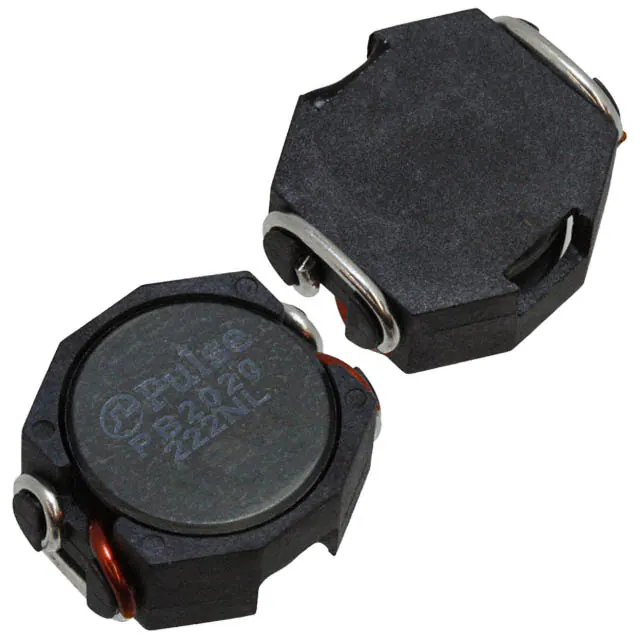

PB2020.222NLFIXED IND 2.2UH 21.8A 2.8MOHM SM |
1,005 | - |
|
数据表 |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | ±20% | 21.8 A | 40A | - | Unshielded | 2.8mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
B82559A7103A019FIXED IND 10UH 9.55 MOHM SMD |
243 | - |
|
数据表 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | - | 12.7A | - | Shielded | 9.55mOhm Max | 10 µH | - | 2MHz | Surface Mount | AEC-Q200 | 0.807" L x 0.807" W (20.50mm x 20.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.358" (9.10mm) |
|
|
B82559A3152A019FIXED IND 1.5UH 1.7 MOHM SMD |
187 | - |
|
数据表 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | - | 36.3A | - | Shielded | 1.7mOhm Max | 1.5 µH | - | 2MHz | Surface Mount | AEC-Q200 | 0.807" L x 0.807" W (20.50mm x 20.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.390" (9.90mm) |
|
PCM120T-1R0N-DFIXED IND 1UH 41.2A 1.06 OHM SMD |
250 | - |
|
数据表 |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | ±30% | 41.2 A | 39.5A | - | Shielded | 1.06mOhm | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.500" W (12.00mm x 12.70mm) | - | -55°C ~ 165°C | 100 kHz | 0.453" (11.50mm) |
