固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGJ7045TC-470M-HFIXED IND 47UH 1.2A 150 MOHM SMD |
949 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.3A | - | Shielded | 150mOhm | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SRR4028-2R2YFIXED IND 2.2UH 2.5A 28 MOHM SMD |
26,515 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 2.05A | - | Shielded | 28mOhm Max | 2.2 µH | 9.24 @ 7.96MHz | 111MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
LGJ7045TC-680M-HFIXED IND 68UH 950MA 210MOHM SMD |
932 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 950 mA | 1.1A | - | Shielded | 210mOhm | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
LGJ7045TC-151M-HFIXED IND 150UH 610MA 480MOHM SM |
926 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 610 mA | 670mA | - | Shielded | 480mOhm | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SRR4018-150YFIXED IND 15UH 1.03A 220MOHM SMD |
25,752 | - |
|
数据表 |
SRR4018 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.03 A | 820mA | - | Shielded | 220mOhm Max | 15 µH | 8 @ 2.52MHz | 30MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
LGJ7045TC-220M-HFIXED IND 22UH 1.8A 69 MOHM SMD |
918 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 1.9A | - | Shielded | 69mOhm | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
LGJ7045TC-150M-HFIXED IND 15UH 2.1A 51 MOHM SMD |
730 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 2.3A | - | Shielded | 51mOhm | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SRR4028-331YFIXED IND 330UH 300MA 1.7OHM SMD |
21,870 | - |
|
数据表 |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 300 mA | 170mA | - | Shielded | 1.7Ohm Max | 330 µH | 16.48 @ 796kHz | 5MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
LQW03AW2N2C00DFIXED IND 2.2NH 400MA 160MOHM SM |
16,904 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±0.2nH | 400 mA | - | - | Unshielded | 160mOhm Max | 2.2 nH | 33 @ 900MHz | 19GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
|
LGJ7045TC-3R3N-HFIXED IND 3.3UH 4.1A 16.4MOHM SM |
713 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 4.1 A | 5A | - | Shielded | 16.4mOhm | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
LGJ7045TC-2R2N-HFIXED IND 2.2UH 4.3A 14.6MOHM SM |
641 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 4.3 A | 5.5A | - | Shielded | 14.6mOhm | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
M27/367-33FIXED IND 100UH 760MA 672MOHM SM |
1,545 | - |
|
数据表 |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 760 mA | 760mA | - | Unshielded | 672mOhm Max | 100 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
M27/367-09FIXED IND 1UH 5.5A 13 MOHM SMD |
1,507 | - |
|
数据表 |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 5.5 A | 5.5A | - | Unshielded | 13mOhm Max | 1 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
LGJ7045TC-6R8N-HFIXED IND 6.8UH 3A 27 MOHM SMD |
626 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3 A | 3.3A | - | Shielded | 27mOhm | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
M27/367-15FIXED IND 3.3UH 3.23A 38MOHM SMD |
1,413 | - |
|
数据表 |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 3.23 A | 3.23A | - | Unshielded | 38mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
LGJ7045TC-100M-HFIXED IND 10UH 2.5A 38 MOHM SMD |
616 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2.7A | - | Shielded | 38mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
M27/367-11FIXED IND 1.5UH 4.45A 20MOHM SMD |
1,072 | - |
|
数据表 |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 4.45 A | 4.45A | - | Unshielded | 20mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
CSBX1275-1R0MSMD HIGH CURRENT POWER INDUCTOR |
590 | - |
|
数据表 |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 32 A | 68A | - | Shielded | 1mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.299" (7.60mm) |
|
|
LGJ7045TC-4R7N-HFIXED IND 4.7UH 3.6A 20 MOHM SMD |
466 | - |
|
数据表 |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.6 A | 4.1A | - | Shielded | 20mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

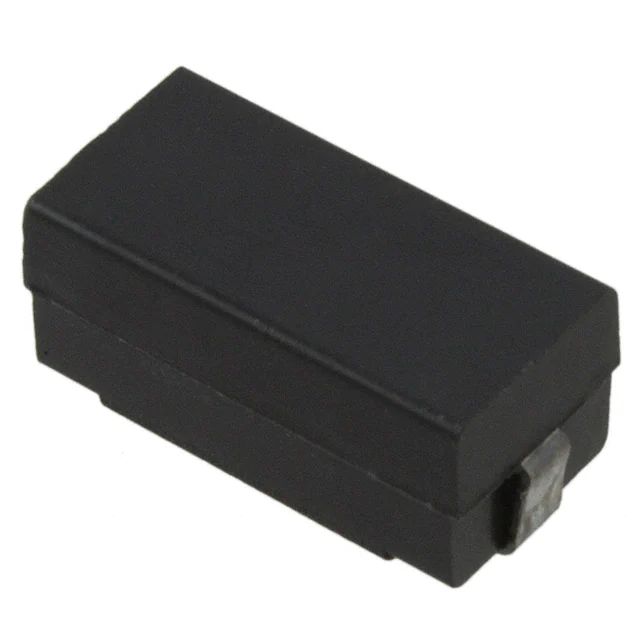

M27/367-27FIXED IND 33UH 1.33A 222MOHM SMD |
949 | - |
|
数据表 |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 1.33 A | 1.33A | - | Unshielded | 222mOhm Max | 33 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
