固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL0603Q68NHT02B03FIXED IND 68NH 100MA 3.2 OHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 100 mA | - | 0201 | Unshielded | 3.2Ohm Max | 68 nH | 11 @ 300MHz | 1.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.33mm) |
|
ER1025-18KSFIXED IND 820NH 415MA 850MOHM TH |
200 | - |
|
数据表 |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 415 mA | - | - | Unshielded | 850mOhm Max | 820 nH | 28 @ 25MHz | 250MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
|
SDCL0603Q5N6JT02B03FIXED IND 5.6NH 350MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 5.6 nH | 13 @ 500MHz | 5.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
ER1025-94KSFIXED IND 100NH 1.35A 80 MOHM TH |
140 | - |
|
数据表 |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 1.35 A | - | - | Unshielded | 80mOhm Max | 100 nH | 40 @ 25MHz | 680MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
|
SDCL0603Q1N0BT02B03FIXED IND 1NH 750MA 80 MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 750 mA | - | 0201 | Unshielded | 80mOhm Max | 1 nH | 13 @ 500MHz | 17GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

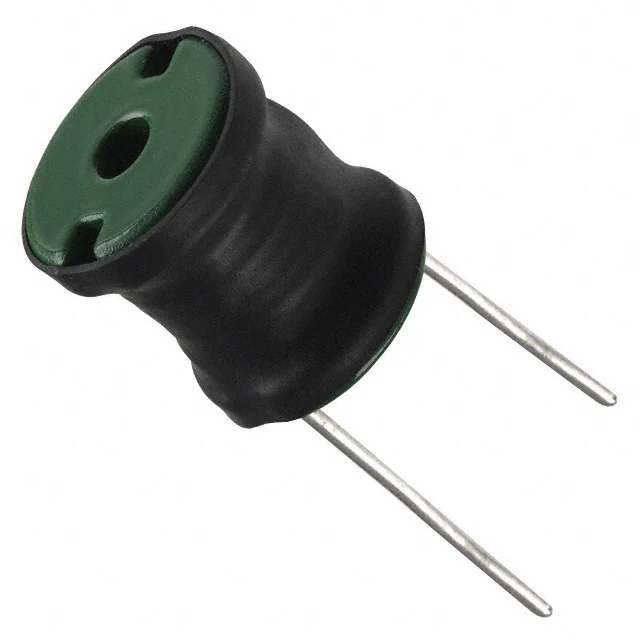

DC780R-224KFIXED IND 220UH 2.8A 150 MOHM TH |
485 | - |
|
数据表 |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 7.4A | - | Unshielded | 150mOhm Max | 220 µH | - | - | Through Hole | - | 0.772" Dia (19.60mm) | - | -55°C ~ 125°C | 1 kHz | 0.831" (21.10mm) |
|
|
SDCL0603Q4N3HT02B03FIXED IND 4.3NH 350MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 4.3 nH | 13 @ 500MHz | 6.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

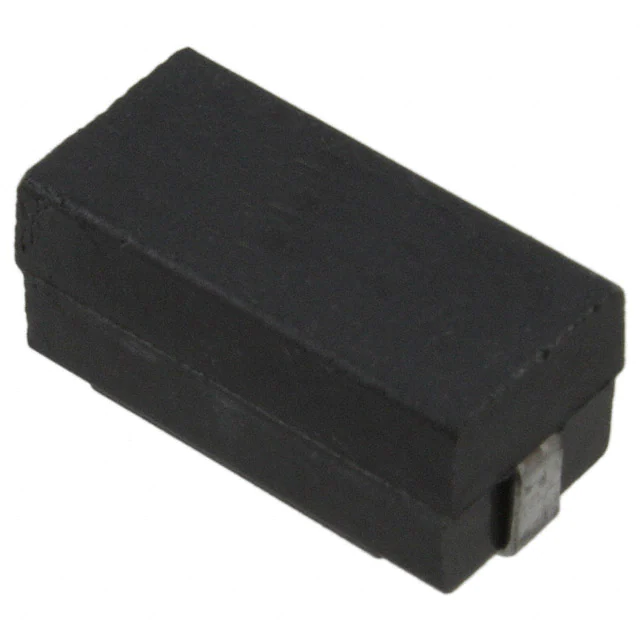

M27/367-01FIXED IND 220NH 7A 8 MOHM SMD |
3,110 | - |
|
数据表 |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 7 A | 7A | - | Unshielded | 8mOhm Max | 220 nH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
SDCL0603Q1N5CT02B03FIXED IND 1.5NH 600MA 120MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 120mOhm Max | 1.5 nH | 13 @ 500MHz | 15GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N0BT02B03FIXED IND 2NH 600MA 150MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 2 nH | 13 @ 500MHz | 12.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q2N9BT02B03FIXED IND 2.9NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 500 mA | - | 0201 | Unshielded | 200mOhm Max | 2.9 nH | 13 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q1N9BT02B03FIXED IND 1.9NH 600MA 150MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 1.9 nH | 13 @ 500MHz | 12.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
LRC0201BK3N3GV001TFIXED IND 3.3NH 300MA 380MOHM SM |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0201 (0603 Metric) | Unshielded | 380mOhm Max | 3.3 nH | 4 @ 100MHz | 7.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
|
|
LRC0201BK3N9GV001TFIXED IND 3.9NH 300MA 450MOHM SM |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0201 (0603 Metric) | Unshielded | 450mOhm Max | 3.9 nH | 4 @ 100MHz | 6.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
|
|
LRC0201BK4N7GV001TFIXED IND 4.7NH 300MA 500MOHM SM |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0201 (0603 Metric) | Unshielded | 500mOhm Max | 4.7 nH | 4 @ 100MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
|
|
LRC0201BK5N6GV001TFIXED IND 5.6NH 300MA 600MOHM SM |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0201 (0603 Metric) | Unshielded | 600mOhm Max | 5.6 nH | 5 @ 100MHz | 5.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
|
DR74-6R8-RFIXED IND 6.8UH 2.6A 41.8MOHM SM |
2,045 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.6 A | 3.67A | - | Shielded | 41.8mOhm | 6.8 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.171" (4.35mm) |
|
SRR7032-221MFIXED IND 220UH 300MA 1.3OHM SMD |
1,698 | - |
|
数据表 |
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 320mA | - | Shielded | 1.3Ohm Max | 220 µH | 47 @ 796kHz | 7.5MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.134" (3.40mm) |
|
|
SRR7032-101MFIXED IND 100UH 450MA 540MOHM SM |
1,260 | - |
|
数据表 |
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 450 mA | 500mA | - | Shielded | 540mOhm Max | 100 µH | 28 @ 796kHz | 12MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.134" (3.40mm) |
|
1227AS-H-1R0N=P2FIXED IND 1UH 3.7A 29 MOHM SMD |
81,368 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.7 A | 2.3A | - | Shielded | 29mOhm Max | 1 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.071" (1.80mm) |
