固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82462A4153K000FIXED IND 15UH 900MA 210MOHM SMD EPCOS - TDK Electronics |
9,746 | - |
|
数据表 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 900 mA | 1.5A | - | Unshielded | 210mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
B82472G4683M000FIXED IND 68UH 690MA 460MOHM SMD EPCOS - TDK Electronics |
2,389 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 690 mA | 600mA | - | Shielded | 460mOhm Max | 68 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
B82131A5302M000FIXED IND 2UH 3A 38 MOHM TH EPCOS - TDK Electronics |
7,968 | - |
|
数据表 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | ±20% | 3 A | - | - | Unshielded | 38mOhm | 2 µH | - | 147MHz | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82111E0000C023FIXED IND 40UH 2A 180 MOHM TH EPCOS - TDK Electronics |
3,296 | - |
|
数据表 |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | - | Unshielded | 180mOhm | 40 µH | - | 90MHz | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82111E0000C022FIXED IND 22UH 3A 70 MOHM TH EPCOS - TDK Electronics |
782 | - |
|
数据表 |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3 A | - | - | Unshielded | 70mOhm | 22 µH | - | 110MHz | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
|
B82472G4473M000FIXED IND 47UH 860MA 300MOHM SMD EPCOS - TDK Electronics |
12,397 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 860 mA | 650mA | - | Shielded | 300mOhm Max | 47 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
B82472G4102M000FIXED IND 1UH 3.45A 18 MOHM SMD EPCOS - TDK Electronics |
1,161 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.45 A | 2.9A | - | Shielded | 18mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
B82472G4333M000FIXED IND 33UH 940MA 250MOHM SMD EPCOS - TDK Electronics |
1,110 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 940 mA | 720mA | - | Shielded | 250mOhm Max | 33 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
B82472G4184M000FIXED IND 180UH 470MA 950MOHM SM EPCOS - TDK Electronics |
1,301 | - |
|
数据表 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 470 mA | 320mA | - | Shielded | 950mOhm Max | 180 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|

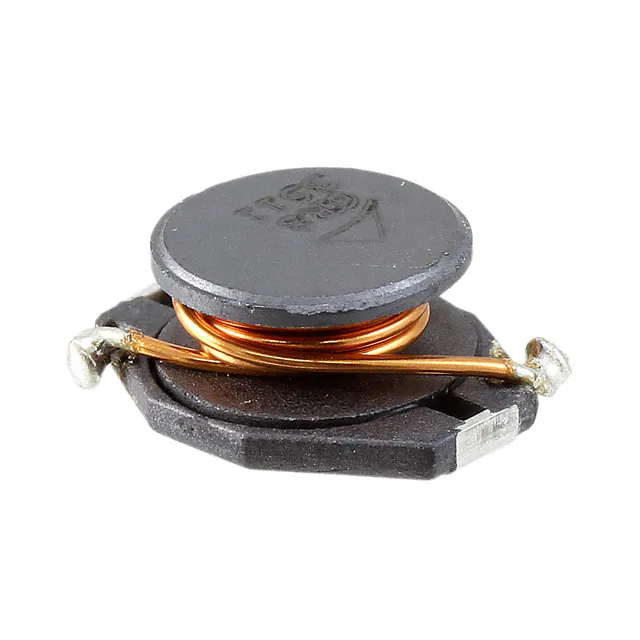

B82476B1222M100FIXED IND 2.2UH 6.7A 10.5MOHM SM EPCOS - TDK Electronics |
1,516 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.7 A | 7A | - | Unshielded | 10.5mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
