固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

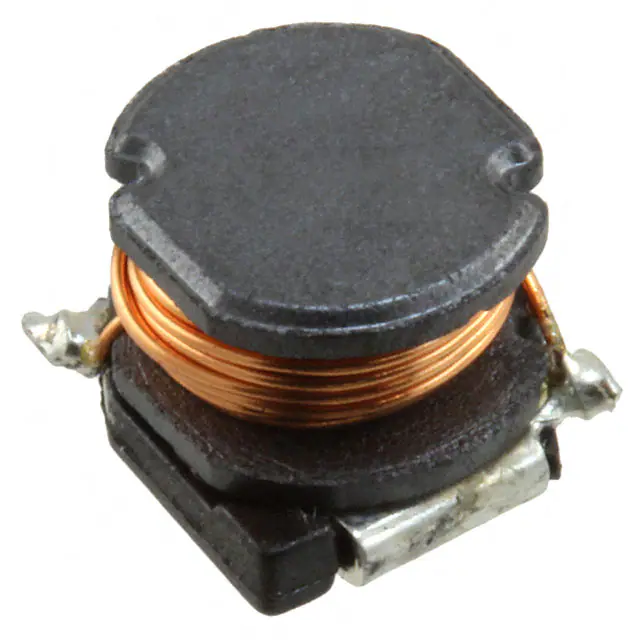

B82471A1103M000FIXED IND 10UH 1.44A 100MOHM SMD EPCOS - TDK Electronics |
696 | - |
|
数据表 |
B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 1.44 A | 1.8A | - | Unshielded | 100mOhm Max | 10 µH | - | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.193" (4.90mm) |
|
B82442T1224K050FIXED IND 220UH 330MA 2.21OHM SM EPCOS - TDK Electronics |
645 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 330 mA | 500mA | 2220 (5650 Metric) | Unshielded | 2.21Ohm Max | 220 µH | 20 @ 796kHz | 3.9MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.209" (5.30mm) |
|
B82476B1683M100FIXED IND 68UH 1.65A 160MOHM SMD EPCOS - TDK Electronics |
499 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.65 A | 1.4A | - | Unshielded | 160mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
B82476B1105M100FIXED IND 1MH 330MA 2.15 OHM SMD EPCOS - TDK Electronics |
544 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 330 mA | 300mA | - | Unshielded | 2.15Ohm Max | 1 mH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
B82442T1152M050FIXED IND 1.5UH 3.02A 33MOHM SMD EPCOS - TDK Electronics |
1,328 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.02 A | 5.48A | 2220 (5650 Metric) | Unshielded | 33mOhm Max | 1.5 µH | 15 @ 7.96MHz | 60MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.209" (5.30mm) |
|
B82476B1333M100FIXED IND 33UH 2.3A 88 MOHM SMD EPCOS - TDK Electronics |
560 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 2A | - | Unshielded | 88mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
B82476B1473M100FIXED IND 47UH 1.95A 120MOHM SMD EPCOS - TDK Electronics |
222 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.95 A | 1.6A | - | Unshielded | 120mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
B82472G6152M000FIXED IND 1.5UH 3.4A 17 MOHM SMD EPCOS - TDK Electronics |
757 | - |
|
数据表 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 3A | - | Shielded | 17mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
B82473A1104K000FIXED IND 100UH 720MA 430MOHM SM EPCOS - TDK Electronics |
237 | - |
|
数据表 |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 720 mA | 800mA | - | Unshielded | 430mOhm Max | 100 µH | - | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.217" (5.50mm) |
|
B82462A4103M000FIXED IND 10UH 1.15A 140MOHM SMD EPCOS - TDK Electronics |
797 | - |
|
数据表 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 1.8A | - | Unshielded | 140mOhm Max | 10 µH | - | 32MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
