固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422A1473J100FIXED IND 47UH 85MA 7 OHM SMD EPCOS - TDK Electronics |
7,988 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 85 mA | - | 1210 (3225 Metric) | Unshielded | 7Ohm Max | 47 µH | 27 @ 2.52MHz | 11MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
B82141A1222K000FIXED IND 2.2UH 630MA 250MOHM TH EPCOS - TDK Electronics |
5,889 | - |
|
数据表 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 630 mA | - | - | Unshielded | 250mOhm Max | 2.2 µH | 45 @ 7.96MHz | 130MHz | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
B82144A2684J000FIXED IND 680UH 240MA 2.8 OHM TH EPCOS - TDK Electronics |
4,363 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 240 mA | - | - | Unshielded | 2.8Ohm Max | 680 µH | 30 @ 796kHz | 1.3MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82144A2563J000FIXED IND 56UH TH EPCOS - TDK Electronics |
1,430 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | - | - | - | Unshielded | - | 56 µH | - | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

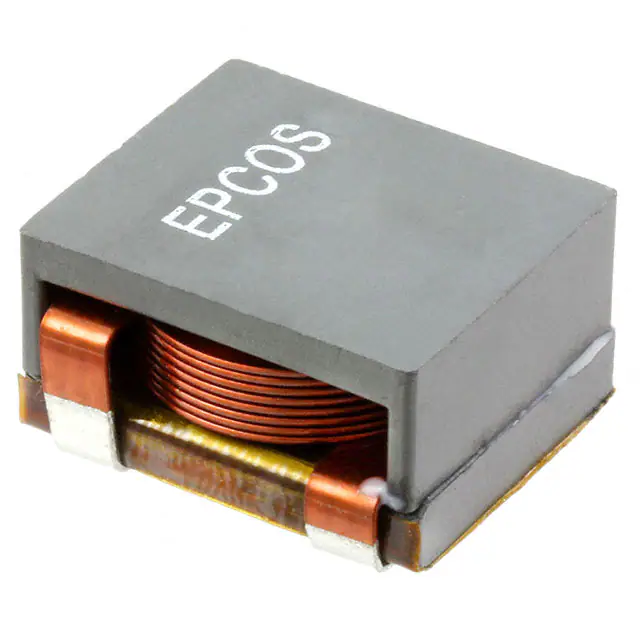

B82559A9153A020FIXED IND 15UH 4.95 MOHM SMD EPCOS - TDK Electronics |
2,705 | - |
|
数据表 |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | - | 15.3A | - | Shielded | 4.95mOhm Max | 15 µH | - | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.492" (12.50mm) |
|
|
B82144A2153K000FIXED IND 15UH 1.25A 280 MOHM TH EPCOS - TDK Electronics |
1,342 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.25 A | - | - | Unshielded | 280mOhm Max | 15 µH | 60 @ 2.52MHz | 20MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
|
B82422A3331J100FIXED IND 330NH 200MA 1.3OHM SMD EPCOS - TDK Electronics |
11,240 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 200 mA | - | 1210 (3225 Metric) | Unshielded | 1.3Ohm Max | 330 nH | 22 @ 30MHz | 580MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
B82422H1152K000FIXED IND 1.5UH 900MA 140MOHM SM EPCOS - TDK Electronics |
4,839 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 900 mA | - | 1210 (3225 Metric) | Unshielded | 140mOhm Max | 1.5 µH | 10 @ 2.52MHz | 110MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.094" (2.40mm) |
|
|
B82144B1155J000FIXED IND 1.5MH 230MA 6.4 OHM TH EPCOS - TDK Electronics |
5,240 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 230 mA | - | - | Unshielded | 6.4Ohm Max | 1.5 mH | 60 @ 252kHz | 1.9MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
B82144B1225J000FIXED IND 2.2MH 180MA 9.5 OHM TH EPCOS - TDK Electronics |
2,945 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 180 mA | - | - | Unshielded | 9.5Ohm Max | 2.2 mH | 60 @ 252kHz | 1.5MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
