固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144F2183K000FIXED IND 18UH 2.2A 0.155OHM TH EPCOS - TDK Electronics |
2,971 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.2 A | 2.25A | - | Unshielded | 155mOhm Max | 18 µH | 50 @ 252kHz | 12MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

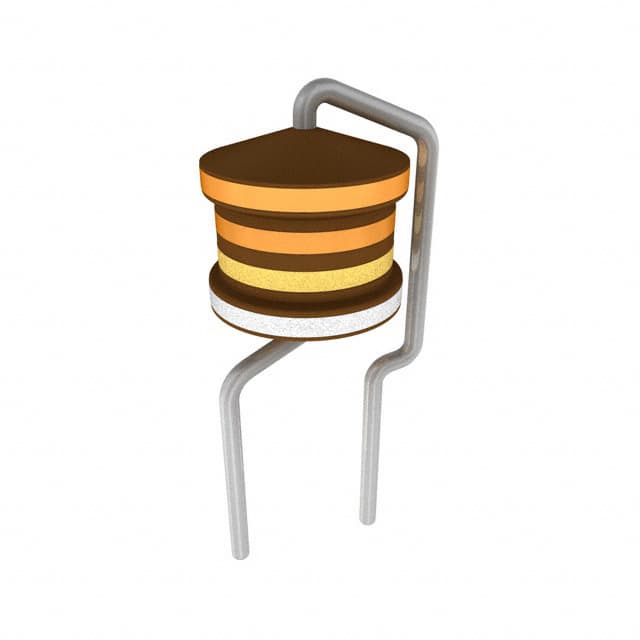

B82144B2332K000FIXED IND 3.3UH 3.5A 65 MOHM TH EPCOS - TDK Electronics |
2,956 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.5 A | 5A | - | Unshielded | 65mOhm Max | 3.3 µH | 60 @ 2.52MHz | 100MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
B82144F2182K000FIXED IND 1.8UH 3.75A 0.05OHM TH EPCOS - TDK Electronics |
3,432 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.75 A | 6.4A | - | Unshielded | 50mOhm Max | 1.8 µH | 60 @ 2.52MHz | 150MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82144F2103K000FIXED IND 10UH 2.45A 0.12OHM TH EPCOS - TDK Electronics |
2,465 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.45 A | 2.85A | - | Unshielded | 120mOhm Max | 10 µH | 40 @ 252kHz | 22MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82498F3181J000FIXED IND 180NH 340MA 530MOHM SM EPCOS - TDK Electronics |
1,391 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 340 mA | - | 0805 (2012 Metric) | Unshielded | 530mOhm Max | 180 nH | 45 @ 250MHz | 1.05GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 100 MHz | 0.055" (1.40mm) |
|

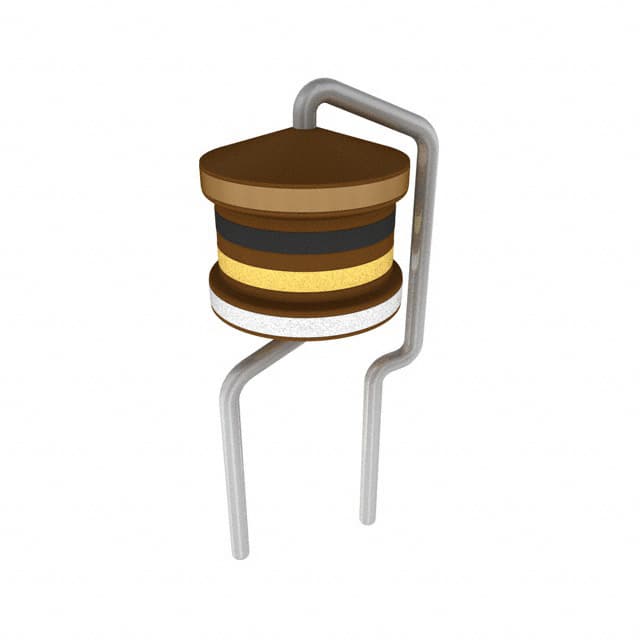

B82144B2102K000FIXED IND 1UH 4.45A 43 MOHM TH EPCOS - TDK Electronics |
2,978 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 4.45 A | 7.7A | - | Unshielded | 43mOhm Max | 1 µH | 50 @ 2.52MHz | 200MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
B82144B2182K000FIXED IND 1.8UH 3.75A 50 MOHM TH EPCOS - TDK Electronics |
1,557 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.75 A | 6.4A | - | Unshielded | 50mOhm Max | 1.8 µH | 60 @ 2.52MHz | 150MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.551" (14.00mm) |
|
B82144B2563J000FIXED IND 56UH 1.6A 310 MOHM TH EPCOS - TDK Electronics |
5,124 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.6 A | 1.3A | - | Unshielded | 310mOhm Max | 56 µH | 40 @ 79.6kHz | 6.8MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
B82145A1474J000FIXED IND 470UH 510MA 1.9 OHM TH EPCOS - TDK Electronics |
3,107 | - |
|
数据表 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 510 mA | - | - | Unshielded | 1.9Ohm Max | 470 µH | 30 @ 796kHz | 1.8MHz | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82144F2272K000FIXED IND 2.7UH 3.55A 0.06OHM TH EPCOS - TDK Electronics |
1,983 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.55 A | 5.4A | - | Unshielded | 60mOhm Max | 2.7 µH | 60 @ 2.52MHz | 120MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 1 MHz | - |
