固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144A2155J000FIXED IND 1.5MH 160MA 6 OHM TH EPCOS - TDK Electronics |
2,900 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | - | Unshielded | 6Ohm Max | 1.5 mH | 60 @ 252kHz | 1MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

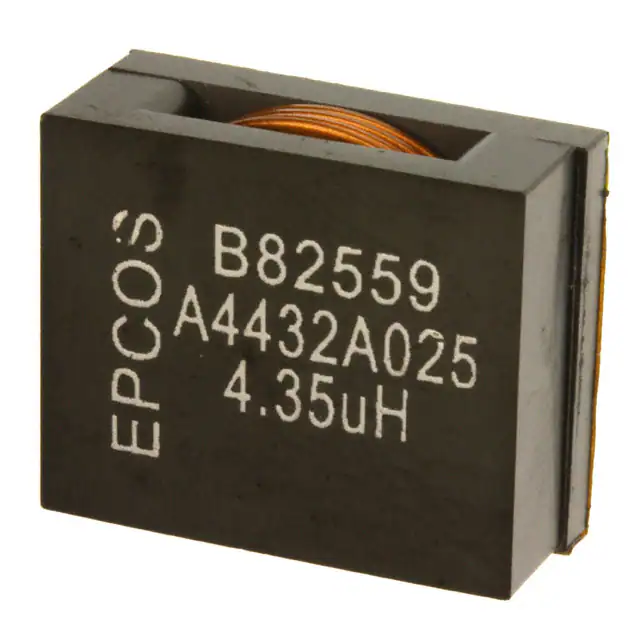

B82559A4432A025FIXED IND 4.35UH 1.3 MOHM SMD EPCOS - TDK Electronics |
1,456 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±7% | - | 30A | - | Shielded | 1.3mOhm | 4.35 µH | - | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | - | -40°C ~ 130°C | 10 kHz | 0.423" (10.75mm) |
|
B82559A7103A025FIXED IND 10UH 2.2 MOHM SMD EPCOS - TDK Electronics |
1,712 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±7% | - | 24A | - | Shielded | 2.2mOhm | 10 µH | - | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | - | -40°C ~ 130°C | 10 kHz | 0.506" (12.85mm) |
|
B82498F3151J001FIXED IND 150NH 400MA 420MOHM SM EPCOS - TDK Electronics |
5,990 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0805 (2012 Metric) | Unshielded | 420mOhm Max | 150 nH | 45 @ 250MHz | 1.15GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 100 MHz | 0.055" (1.40mm) |
|
B82144F1104J000FIXED IND 100UH 760MA 0.7OHM TH EPCOS - TDK Electronics |
4,141 | - |
|
数据表 |
B82144F1 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 760 mA | - | - | Unshielded | 700mOhm Max | 100 µH | 40 @ 796kHz | 5.2MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
B82144B1105J000FIXED IND 1MH 280MA 4.2 OHM TH EPCOS - TDK Electronics |
2,094 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 280 mA | - | - | Unshielded | 4.2Ohm Max | 1 mH | 60 @ 252kHz | 2.2MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
B82498F3180J000FIXED IND 18NH 700MA 80 MOHM SMD EPCOS - TDK Electronics |
30,773 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0805 (2012 Metric) | Unshielded | 80mOhm Max | 18 nH | 60 @ 500MHz | 3.3GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 250 MHz | 0.055" (1.40mm) |
|
B82496C3221G000FIXED IND 220NH 110MA 7 OHM SMD EPCOS - TDK Electronics |
7,036 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 110 mA | - | 0603 (1608 Metric) | Unshielded | 7Ohm Max | 220 nH | 4 @ 25.2MHz | 1.3GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 150°C | 25.2 MHz | 0.035" (0.90mm) |
|
|
B82498F3569K001FIXED IND 5.6NH 900MA 40MOHM SMD EPCOS - TDK Electronics |
5,108 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 900 mA | - | 0805 (2012 Metric) | Unshielded | 40mOhm Max | 5.6 nH | 50 @ 1GHz | 7GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 250 MHz | 0.055" (1.40mm) |
.JPG)
|
B82442H1225J000FIXED IND 2.2MH 75MA 28 OHM SMD EPCOS - TDK Electronics |
1,468 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 75 mA | - | 2220 (5650 Metric) | Unshielded | 28Ohm Max | 2.2 mH | 30 @ 252kHz | 1.2MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 252 kHz | 0.209" (5.30mm) |
