固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAL6374.900HLTIND POWER BEAD TLVR |
350 | - |
|
数据表 |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 71 A | 90A | - | Unshielded | 0.45mOhm Max | 90 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.472" (12.00mm) |
|
|
PAL6374.101HLTIND POWER BEAD TLVR |
350 | - |
|
数据表 |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 71 A | 82A | - | Unshielded | 0.45mOhm Max | 100 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.472" (12.00mm) |
|
MPXV1D1250LR33FIXED IND 330NH 41.6A 1.3MOHM SM |
248 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 41.6 A | 65A | - | Shielded | 1.3mOhm Max | 330 nH | - | 68MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPXV1D1250LR22FIXED IND 220NH 42.7A 1.2MOHM SM |
207 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 42.7 A | 85A | - | Shielded | 1.2mOhm Max | 220 nH | - | 95MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPXV1D1264L6R8FIXED IND 6.8UH 14A 12.3MOHM SMD |
156 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 14 A | 16A | - | Shielded | 12.3mOhm Max | 6.8 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
|
MPXV1D1250L470FIXED IND 47UH 4.5A 105.4MOHM SM |
146 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 4.5 A | 5.5A | - | Shielded | 105.4mOhm Max | 47 µH | - | 4MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
1025R-38KFIXED IND 5.6UH 195MA 1.8 OHM TH |
133 | - |
|
数据表 |
1025R | Axial | Bulk | Active | Molded | Iron | ±10% | 195 mA | - | - | Unshielded | 1.8Ohm Max | 5.6 µH | 50 @ 7.9MHz | 65MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
DRA125-330-RFIXED IND 33UH 3.19A 53 MOHM SMD |
6,484 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.19 A | 3.86A | - | Shielded | 53mOhm | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.236" (6.00mm) |
|
CSEB0420H-R68MSMD MOLDING POWER CHOKE |
2,000 | - |
|
数据表 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 10.7 A | 8.6A | - | Shielded | 9.6mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Molded Inductors, Molding Power Choke, Soft Saturation | -40°C ~ 125°C | - | 0.087" (2.20mm) |
|
ASPI-6045S-270M-TFIXED IND 27UH 1.65A 102MOHM SMD |
1,545 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.65 A | 1.9A | - | Shielded | 102mOhm | 27 µH | - | 9.2MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SDCHA1V6045-3R3-RIND SMD POWER 3.3UH 5.0A |
1,379 | - |
|
数据表 |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | ±20% | 5 A | 7.8A | - | Shielded | 21mOhm | 3.3 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SRN4018TA-101MFIXED IND 100UH 340MA 1.38OHM SM |
1,245 | - |
|
数据表 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 340 mA | 420mA | - | Shielded | 1.38Ohm | 100 µH | 10 @ 100kHz | 4MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
SRN3015TA-4R7MFIXED IND 4.7UH 1.2A 120MOHM SMD |
1,220 | - |
|
数据表 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.2A | - | Shielded | 120mOhm | 4.7 µH | 12 @ 100kHz | 40MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
CSEB0420H-R22MSMD MOLDING POWER CHOKE |
2,000 | - |
|
数据表 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 15.5 A | 16A | - | Shielded | 3.8mOhm Max | 220 nH | - | - | Surface Mount | AEC-Q200 | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Molded Inductors, Molding Power Choke, Soft Saturation | -40°C ~ 125°C | - | 0.087" (2.20mm) |
|

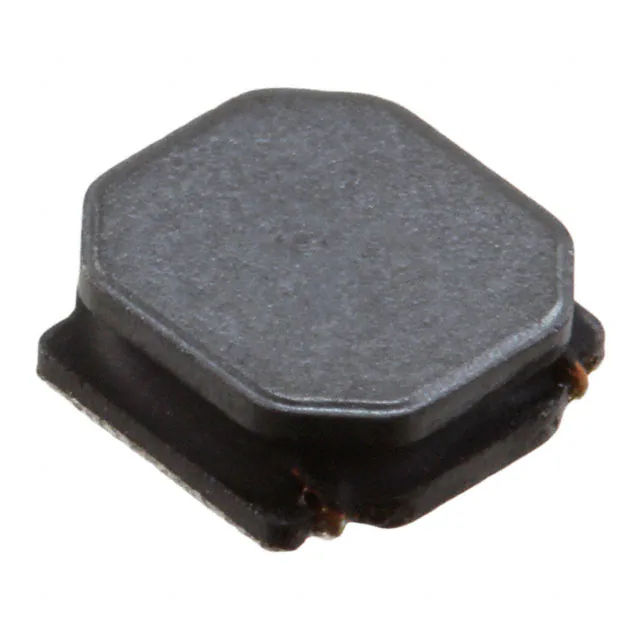

TYS5020220M-10FIXED IND 22UH 1.1A 226 MOHM SMD |
202,032 | - |
|
数据表 |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 1.1 A | 1.15A | - | Shielded | 226mOhm Max | 22 µH | - | 14MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
CSEB0420H-R82MSMD MOLDING POWER CHOKE |
2,000 | - |
|
数据表 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 10.3 A | 7.4A | - | Shielded | 11mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Molded Inductors, Molding Power Choke, Soft Saturation | -40°C ~ 125°C | - | 0.087" (2.20mm) |
|
BSCQ000603031N2S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 800 mA | - | 0201 | Unshielded | 80mOhm Max | 1.2 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
CSEB0420H-R56MSMD MOLDING POWER CHOKE |
1,990 | - |
|
数据表 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 12 A | 10.3A | - | Shielded | 8mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Molded Inductors, Molding Power Choke, Soft Saturation | -40°C ~ 125°C | - | 0.087" (2.20mm) |
|
|
CSEB0420H-47NMSMD MOLDING POWER CHOKE |
1,959 | - |
|
数据表 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 34 A | 40A | - | Shielded | 1.55mOhm Max | 47 nH | - | - | Surface Mount | AEC-Q200 | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Molded Inductors, Molding Power Choke, Soft Saturation | -40°C ~ 125°C | - | 0.087" (2.20mm) |
|
|
BSCQ000603030N7S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 900 mA | - | 0201 | Unshielded | 60mOhm Max | 0.7 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
