固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV1205100M-10FIXED IND 10UH 9A 25.5 MOHM SMD |
457 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 16A | - | Shielded | 25.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
SC303R9KTFIXED IND 3.9UH 420MA 1 OHM TH |
0 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Bulk | Active | - | - | ±10% | 420 mA | - | - | Shielded | 1Ohm Max | 3.9 µH | 45 @ 7.9MHz | 80MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 7.9 MHz | - |
|
BSCQ000603031N3SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 760mA | 0201 | Unshielded | 90mOhm Max | 1.3 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
PM2205.182NLTFIXED IND 1.8UH 16A 7.1MOHM SMD |
1,391 | - |
|
数据表 |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | 18.5A | SMD | Shielded | 7.1mOhm Max | 1.8 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
CTDS5022PF-154150UH SMD SHIELDED POWR INDUCTOR |
500 | - |
|
数据表 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.3 A | 2.1A | - | Shielded | 300mOhm Max | 150 µH | 50 @ 100kHz | 4.8MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.300" (7.62mm) |
|
|
CTDS5022PF-224220UH SMD SHIELDED POWR INDUCTOR |
323 | - |
|
数据表 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.1 A | 1.9A | - | Shielded | 470mOhm Max | 220 µH | 50 @ 100kHz | 4MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.300" (7.62mm) |
|
|
CTDS5022PF-104100UH SMD SHIELDED POWR INDUCTOR |
262 | - |
|
数据表 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.7 A | 2.4A | - | Shielded | 210mOhm Max | 100 µH | 40 @ 100kHz | 5.5MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.300" (7.62mm) |
|
|
CTDS5022PF-334330UH SMD SHIELDED POWR INDUCTOR |
255 | - |
|
数据表 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 860 mA | 1.1A | - | Shielded | 780mOhm Max | 330 µH | 50 @ 100kHz | 3MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.300" (7.62mm) |
|

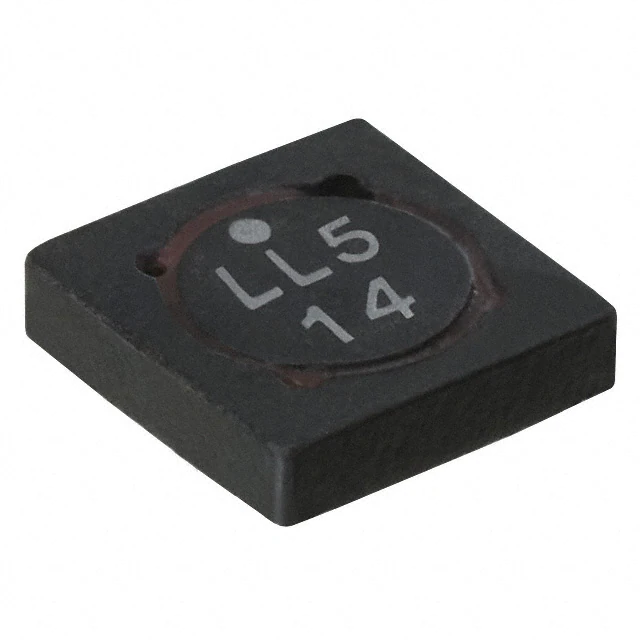

SD14-102-RFIXED IND 1MH 126MA 15.8 OHM SMD |
3,770 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 126 mA | 117mA | - | Shielded | 15.8Ohm | 1 mH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.057" (1.45mm) |
|
HCM1103-8R2-RFIXED IND 8.2UH 5A 38.5 MOHM SMD |
0 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 5 A | 8.5A | - | Shielded | 38.5mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
PAL6374.151HLTIND POWER BEAD TLVR |
1,400 | - |
|
数据表 |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 71 A | 50A | - | Unshielded | 0.45mOhm Max | 150 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.472" (12.00mm) |
|
1025R-18KFIXED IND 820NH 420MA 850MOHM TH |
1,000 | - |
|
数据表 |
1025R | Axial | Bulk | Active | Molded | Phenolic | ±10% | 420 mA | - | - | Unshielded | 850mOhm Max | 820 nH | 28 @ 25MHz | 250MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
MPXV1D1264L150FIXED IND 15UH 9.8A 24.9MOHM SMD |
591 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 9.8 A | 11.5A | - | Shielded | 24.9mOhm Max | 15 µH | - | 6.5MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
MPX1D1264L6R8FIXED IND 6.8UH 14A 12.3MOHM SMD |
575 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 14 A | 16A | - | Shielded | 12.3mOhm Max | 6.8 µH | - | 10MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
ASPI-1306S-470M-TFIXED IND 47UH 2.4A 97 MOHM SMD |
0 | - |
|
数据表 |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 4A | - | Shielded | 97mOhm Max | 47 µH | - | 4MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.300" (7.62mm) |
|
|
SD14-150-RFIXED IND 15UH 980MA 260.9 MOHM |
570 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 980 mA | 969mA | - | Shielded | 260.9mOhm | 15 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.057" (1.45mm) |
|
1210R-330KFIXED IND 33NH 711MA 240MOHM SMD |
7,174 | - |
|
数据表 |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 711 mA | - | 1210 | Unshielded | 240mOhm Max | 33 nH | 30 @ 50MHz | 1GHz | Surface Mount | - | 0.128" L x 0.095" W (3.25mm x 2.42mm) | - | -55°C ~ 125°C | 50 MHz | 0.101" (2.57mm) |
|
|
MPXV1D1264L2R2FIXED IND 2.2UH 25.4A 3.7MOHM SM |
500 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 25.4 A | 32A | - | Shielded | 3.7mOhm Max | 2.2 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
|
1025R-12KFIXED IND 470NH 660MA 350MOHM TH |
374 | - |
|
数据表 |
1025R | Axial | Bulk | Active | Molded | Phenolic | ±10% | 660 mA | - | - | Unshielded | 350mOhm Max | 470 nH | 30 @ 25MHz | 330MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
|
PAL6374.181HLTIND POWER BEAD TLVR |
350 | - |
|
数据表 |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 71 A | 40A | - | Unshielded | 0.45mOhm Max | 180 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.472" (12.00mm) |
