固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV1205150M-10FIXED IND 15UH 8.2A 38 MOHM SMD |
2,000 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 8.2 A | 13A | - | Shielded | 38mOhm Max | 15 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.213" (5.40mm) |
|
DRA127-221-RFIXED IND 220UH 1.253A 398 MOHM |
454 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.253 A | 2.35A | - | Shielded | 398mOhm | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.315" (8.00mm) |
|
BSCQ000603033N5S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 405 mA | - | 0201 | Unshielded | 300mOhm Max | 3.5 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N2CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 900mA | 0201 | Unshielded | 60mOhm Max | 0.2 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N9CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 350mA | 0201 | Unshielded | 410mOhm Max | 3.9 nH | 14 @ 500MHz | 7.7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603034N3C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 320 mA | - | 0201 | Unshielded | 480mOhm Max | 4.3 nH | 14 @ 500MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N4CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 640mA | 0201 | Unshielded | 120mOhm Max | 1.4 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N0C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 850 mA | - | 0201 | Unshielded | 70mOhm Max | 1 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N0SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 850mA | 0201 | Unshielded | 70mOhm Max | 1 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N1BHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | - | 900mA | 0201 | Unshielded | 60mOhm Max | 0.1 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N9SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 350mA | 0201 | Unshielded | 410mOhm Max | 3.9 nH | 14 @ 500MHz | 7.7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N9BHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | - | 350mA | 0201 | Unshielded | 410mOhm Max | 3.9 nH | 14 @ 500MHz | 7.7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603038N2JHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | - | 290mA | 0201 | Unshielded | 570mOhm Max | 8.2 nH | 14 @ 500MHz | 4.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603034N3SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 320mA | 0201 | Unshielded | 480mOhm Max | 4.3 nH | 14 @ 500MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N9C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 900 mA | - | 0201 | Unshielded | 60mOhm Max | 0.9 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N9S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 900 mA | - | 0201 | Unshielded | 60mOhm Max | 0.9 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N0S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 850 mA | - | 0201 | Unshielded | 70mOhm Max | 1 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
SRN5020TA-4R7MFIXED IND 4.7UH 2.4A 60 MOHM SMD |
6,598 | - |
|
数据表 |
SRN5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 2.7A | - | Shielded | 60mOhm | 4.7 µH | 15 @ 100kHz | 58MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
BSCQ000603031N1BHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | - | 850mA | 0201 | Unshielded | 70mOhm Max | 1.1 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

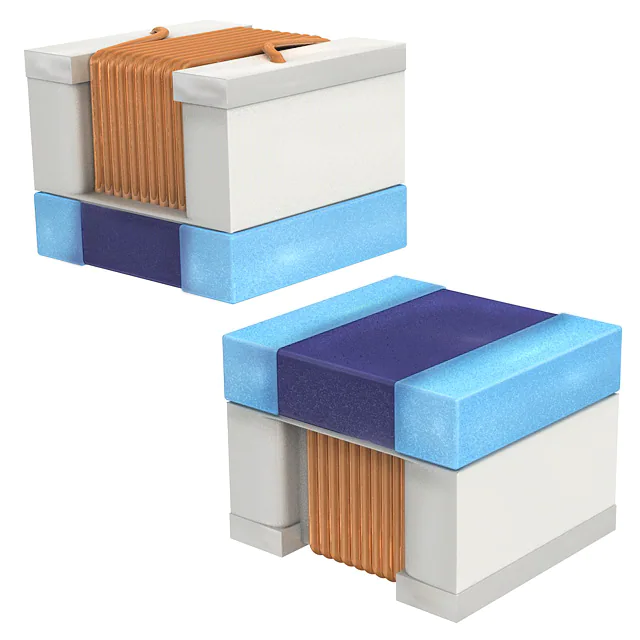

LQW2UAS1R0F00LFIXED IND 1UH 370MA 1.75 OHM SMD |
6,590 | - |
|
数据表 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±1% | 370 mA | - | 1008 (2520 Metric) | Unshielded | 1.75Ohm Max | 1 µH | 35 @ 50MHz | 290MHz | Surface Mount | - | 0.103" L x 0.096" W (2.62mm x 2.45mm) | - | -55°C ~ 125°C | 25 MHz | 0.080" (2.03mm) |
