固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLCF4020T-220MR56FIXED IND 22UH 560MA 431MOHM SMD |
10,825 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 560 mA | 560mA | - | Shielded | 431mOhm Max | 22 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
BMRF00060630100MA1FIXED IND 10UH 4A 68 MOHM SMD |
9,029 | - |
|
数据表 |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4 A | 5.5A | - | Shielded | 68mOhm Max | 10 µH | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
TYS4030220M-10FIXED IND 22UH 1A 292.5 MOHM SMD |
8,684 | - |
|
数据表 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1 A | 1.3A | - | Shielded | 292.5mOhm Max | 22 µH | - | 10MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
LQW18CNR27J0ZDFIXED IND 270NH 750MA 160MOHM SM |
8,553 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 750 mA | - | 0603 | Unshielded | 160mOhm Max | 270 nH | - | 660MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 10 MHz | 0.037" (0.95mm) |
|
ASPI-6045S-331M-TFIXED IND 330UH 570MA 1.27OHM SM |
8,084 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 570 mA | 570mA | - | Shielded | 1.27Ohm | 330 µH | - | 2.8MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
ASPI-6045S-180M-TFIXED IND 18UH 1.85A 81 MOHM SMD |
6,913 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.85 A | 2.2A | - | Shielded | 81mOhm | 18 µH | - | 10MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
TYS50404R7N-10FIXED IND 4.7UH 3A 30 MOHM SMD |
6,817 | - |
|
数据表 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3 A | 3.5A | - | Shielded | 30mOhm Max | 4.7 µH | - | 28MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
|
BMRA000606301R0MA1FIXED IND 1UH 12A 10 MOHM SMD |
6,645 | - |
|
数据表 |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 12 A | 22A | - | Shielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
TYS5040101M-10FIXED IND 100UH 700MA 560MOHM SM |
5,822 | - |
|
数据表 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 700 mA | 750mA | - | Shielded | 560mOhm Max | 100 µH | - | 4.7MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
HCB0750-700L2FIXED IND 70NH 41A 0.25MOHM SMD |
2,916 | - |
|
数据表 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 41 A | 75A | - | Unshielded | 0.25mOhm | 70 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
CDMT40D20HF-3R3NCFIXED IND 3.3UH 3A 46.2 MOHM SMD |
2,581 | - |
|
数据表 |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±30% | 3 A | 4.3A | - | Shielded | 46.2mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|

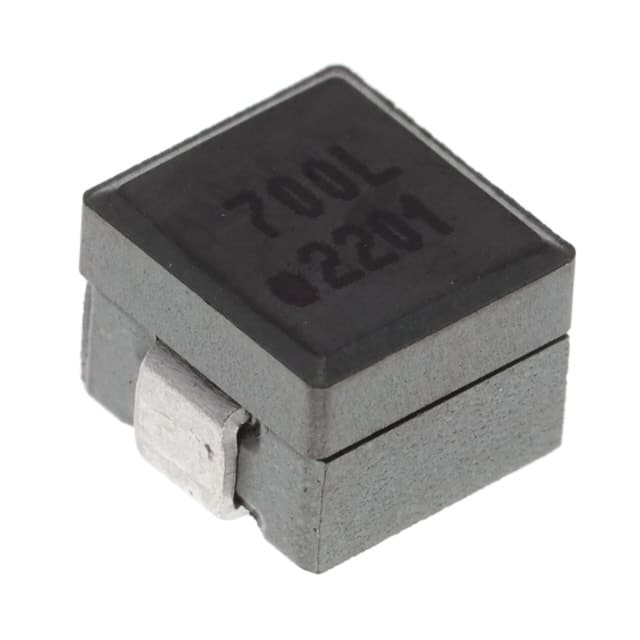

HCB0750-700LFIXED IND 70NH 48A 0.19MOHM SMD |
2,453 | - |
|
数据表 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 48 A | 75A | - | Unshielded | 0.19mOhm | 70 nH | - | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
|
HCB0750-101FIXED IND 100NH 37A 0.32MOHM SMD |
1,993 | - |
|
数据表 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 37 A | 53A | - | Unshielded | 0.32mOhm | 100 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCB0750-121FIXED IND 120NH 37A 0.32MOHM SMD |
1,986 | - |
|
数据表 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 37 A | 42A | - | Unshielded | 0.32mOhm | 120 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
CDMT40D20HF-1R5NCFIXED IND 1.5UH 4.4A 21.5MOHM SM |
1,924 | - |
|
数据表 |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±30% | 4.4 A | 7.1A | - | Shielded | 21.5mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
HCB0750-121LFIXED IND 120NH 48A 0.19MOHM SMD |
1,285 | - |
|
数据表 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 48 A | 42A | - | Unshielded | 0.19mOhm | 120 nH | - | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
MPX1D1264L4R7FIXED IND 4.7UH 17.1A 8.2MOHM SM |
383 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 17.1 A | 19.5A | - | Shielded | 8.2mOhm Max | 4.7 µH | - | 13MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
|
MPX1D1264L2R2FIXED IND 2.2UH 25.4A 3.7MOHM SM |
350 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 25.4 A | 32A | - | Shielded | 3.7mOhm Max | 2.2 µH | - | 20MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
DRA74-820-RFIXED IND 82UH 879MA 367MOHM SMD |
124 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 879 mA | 1.034A | - | Shielded | 367mOhm | 82 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.171" (4.35mm) |
.jpg)
|
FP2-V100-RFIXED IND 100NH 37A 0.28MOHM SMD |
765 | - |
|
数据表 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 37 A | 40A | - | Unshielded | 0.28mOhm | 100 nH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
