固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1255AY-470M=P3FIXED IND 47UH 1.3A 210 MOHM SMD |
3,742 | - |
|
数据表 |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.4A | - | Shielded | 210mOhm | 47 µH | - | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | - | - | 100 kHz | 0.177" (4.50mm) |
|
NRS5040T1R5NMGJVFIXED IND 1.5UH 4.5A 22.1MOHM SM |
3,731 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.5 A | 6.4A | - | Shielded | 22.1mOhm Max | 1.5 µH | - | 60MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
NRS5040T150MMGJVFIXED IND 15UH 1.8A 104 MOHM SMD |
3,482 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 2A | - | Shielded | 104mOhm Max | 15 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
NRS5040T2R2NMGJVFIXED IND 2.2UH 3.7A 28.6MOHM SM |
2,962 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.7 A | 5A | - | Shielded | 28.6mOhm Max | 2.2 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
1255AY-3R9N=P3FIXED IND 3.9UH 4.2A 22MOHM SMD |
2,962 | - |
|
数据表 |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.2 A | 4.7A | - | Shielded | 22mOhm | 3.9 µH | - | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | - | -40°C ~ 85°C | 100 kHz | 0.177" (4.50mm) |
|
ASPI-6045S-680M-TFIXED IND 68UH 1A 289 MOHM SMD |
2,958 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.2A | - | Shielded | 289mOhm | 68 µH | - | 6.4MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
VLS6045AF-6R8MFIXED IND 6.8UH 3.9A 37MOHM SMD |
2,712 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.9 A | 3.5A | - | Shielded | 37mOhm | 6.8 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
|
|
1255AY-100M=P3FIXED IND 10UH 2.9A 47 MOHM SMD |
2,650 | - |
|
数据表 |
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 3.1A | - | Shielded | 47mOhm | 10 µH | - | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | - | - | 100 kHz | 0.177" (4.50mm) |
|
45224CFIXED IND 220UH 500MA 1.55OHM SM |
2,445 | - |
|
数据表 |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 500 mA | - | - | Shielded | 1.55Ohm Max | 220 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 10 kHz | 0.140" (3.55mm) |
|
SRN5020TA-220MFIXED IND 22UH 1.1A 225 MOHM SMD |
2,213 | - |
|
数据表 |
SRN5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.1A | - | Shielded | 225mOhm | 22 µH | 15 @ 100kHz | 25MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
PB2020.223NLFIXED IND 22UH 8.1A 20 MOHM SMD |
789 | - |
|
数据表 |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | ±20% | 8.1 A | 13A | - | Unshielded | 20mOhm Max | 22 µH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
PE-92402NLFIXED IND 100UH 2.6A 100 MOHM TH |
733 | - |
|
数据表 |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | ±20% | 2.6 A | - | - | Unshielded | 100mOhm Max | 100 µH | - | - | Through Hole | - | 0.850" Dia (21.59mm) | - | -40°C ~ 130°C | 20 kHz | 0.410" (10.41mm) |
|
HCM1103-150-RFIXED IND 15UH 4A 65 MOHM SMD |
128 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 4 A | 6A | - | Shielded | 65mOhm Max | 15 µH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

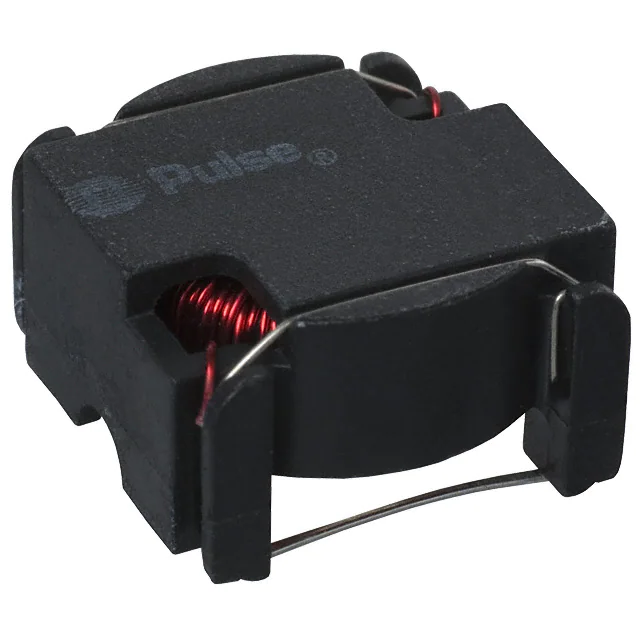

PE-53651NLFIXED IND 5.1UH 5.4A 17.7MOHM SM |
648 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | - | 5.4 A | - | - | Unshielded | 17.7mOhm Max | 5.1 µH | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | - | -40°C ~ 130°C | - | 0.360" (9.14mm) |
|
FIT50-7FIXED IND 8.86UH 8.1A 11 MOHM TH |
126 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | - | 8.1 A | - | - | Unshielded | 11mOhm Max | 8.86 µH | - | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | - | -40°C ~ 85°C | 10 kHz | 0.750" (19.05mm) |
|
MGV12051R5M-10FIXED IND 1.5UH 23A 4.1 MOHM SMD |
1,960 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 23 A | 48A | - | Shielded | 4.1mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
|
MGV12051R0M-10FIXED IND 1UH 29A 2.5 MOHM SMD |
1,958 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 29 A | 50A | - | Shielded | 2.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
|
MGV12054R7M-10FIXED IND 4.7UH 12A 15 MOHM SMD |
1,937 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 12 A | 27A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.209" (5.30mm) |
|
SC30680KTFIXED IND 68UH 162MA 6.7 OHM TH |
0 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 162 mA | - | - | Shielded | 6.7Ohm Max | 68 µH | 50 @ 2.5MHz | 15MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 2.5 MHz | - |
|
|
SC30R82KTFIXED IND 820NH 455MA 850MOHM TH |
0 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 455 mA | - | - | Shielded | 850mOhm Max | 820 nH | 28 @ 25MHz | 250MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 25 MHz | - |
